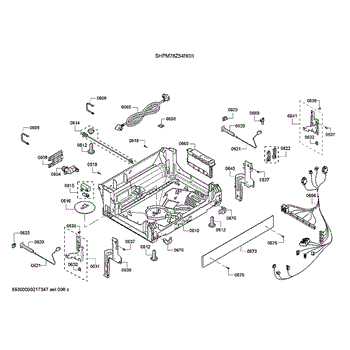

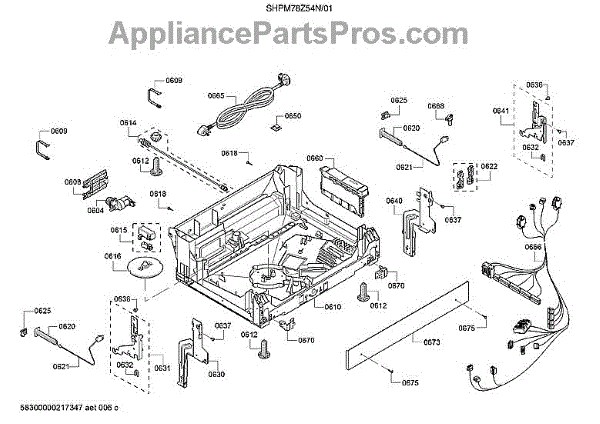

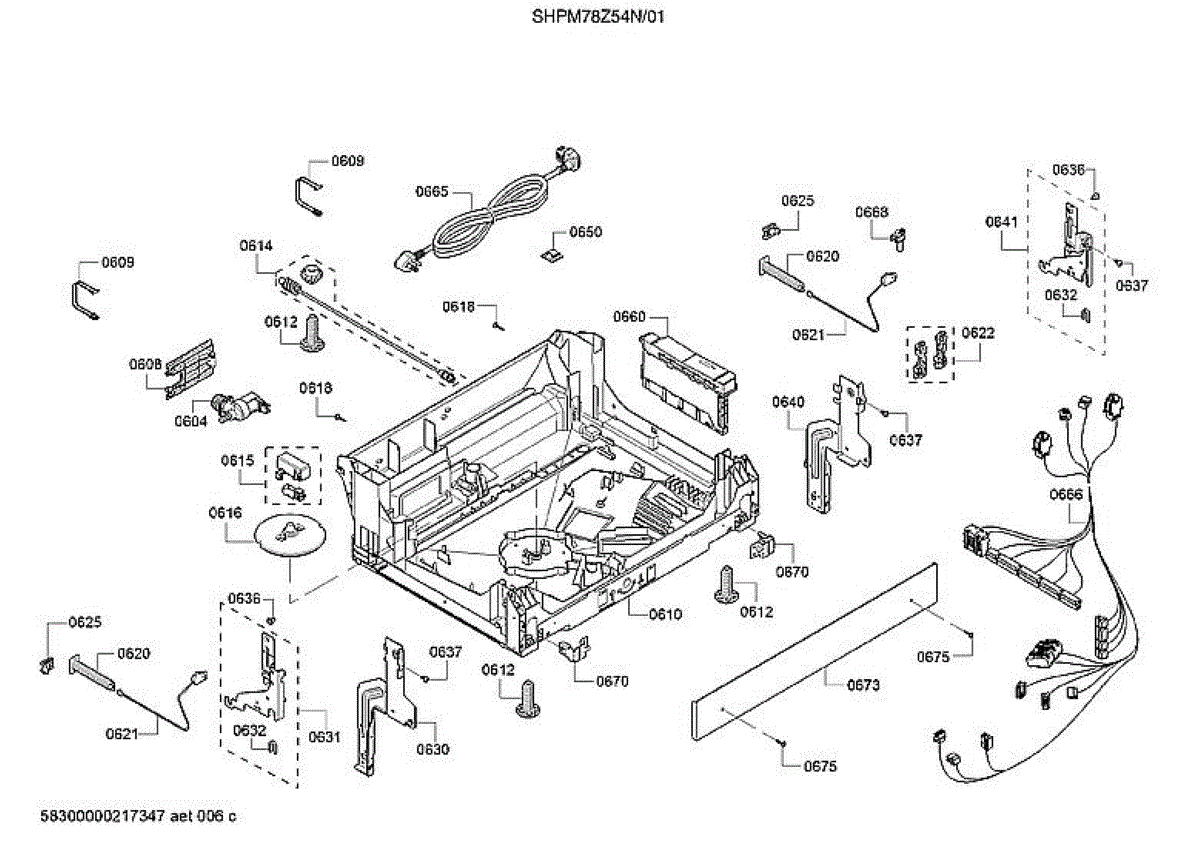

Parts for Bosch SHPM78Z54N/01: Power Module / Main Harness / Power Cord Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Dishwasher Water Inlet Valve is an OEM part for Bosch dishwashers that is responsible for controlling the flow of water into the dishwasher at the start of each wash cycle. The water inlet valve opens to allow water to enter the dishwasher and then closes to ensure the correct amount of water is used during the cycle.

Symptoms of a bad Dishwasher Water Inlet Valve include:

• Inadequate water filling the dishwasher.
• Overfilling, which can cause leaks and potential water damage.
• Unusual noises coming from the valve area.
• The dishwasher not starting.

Causes of a bad water inlet valve can vary from mineral buildup from hard water, which can block the valve, to mechanical failure or wear and tear over time. Electrical issues can also affect the valve's operation, preventing it from opening or closing properly.

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This support is a factory replacement component that holds and stabilizes a specific part within your appliance so it stays aligned and secure. Replacing a cracked or missing support restores proper fit and helps prevent noise or binding.

• Provides structural support and alignment for the designated component
• Keeps parts seated securely to minimize movement and vibration during use
• A damaged or missing support can cause looseness, rattling, sagging, or misalignment
• Restores proper fit and function when the original is cracked, warped, or broken

• Disconnect power and shut off any gas/water supplies before servicing
• Refer to your model's parts diagram to identify location and orientation
• Install using the appliance's existing screws or clips; avoid overtightening to prevent damage
• Wear cut-resistant gloves; beware of sharp edges and pinch points

Fix loose or rattling dishwasher components with this holder retainer. Secures parts in position to prevent movement and restore quiet operation.

Lower housing that forms the structural base of your dishwasher. Replace when the original case is cracked, warped, or damaged to restore stability.

Fix a tilted or unstable dishwasher with this leveling leg. Ensures proper drainage and cleaning performance. Easy DIY install in minutes.

This replacement worm gear is a small plastic drive gear that transmits rotational motion between the motor and driven components, restoring normal gear-driven movement and reducing slipping or grinding. What it does:

• Transfers torque from the motor to the mating gear or gearbox for proper mechanical operation
• Replaces worn, stripped, or damaged worm teeth that cause slipping or loss of drive
• Stops grinding, clicking, or intermittent movement when the gear is the fault
• Helps restore smooth, consistent operation of the driven mechanism when installed correctly

• One worm gear

• Disconnect power to the appliance before beginning any repair
• Inspect mating gears and shafts for wear; replace worn parts to prevent repeat failure
• Use OEM-approved lubricant only where specified; do not force or overtighten mating components

Fix E15 error code or water tap light on your dishwasher. The float housing detects water levels in the tub. Moderate DIY repair, typically 30-45 minutes.

E15 or E16 error code? The water level float detects leaks in the base pan. Simple DIY fix with video guide—typically takes 30-45 minutes to replace.

Replacement screw for securing dishwasher panels, trim pieces, and brackets. Restores proper fit when original screws are stripped, lost, or damaged.

Replace a worn, stretched, or broken dishwasher door spring. Balances door tension for smooth opening and closing. Installs in door hinge assembly.

Door pulley rope for dishwasher door latch mechanism. Replace if frayed, broken, or snapped from repeated use. Includes rope and plastic retainer.

Guides door cables for smooth opening and closing. Replace if cracked, broken, or worn. Keeps cables aligned and ensures balanced door operation.

Secures the door spring in place on your dishwasher. Replace if cracked, broken, or missing to restore proper door tension and balance for smooth operation.

Secures the dishwasher door to the cabinet on the left side. Replace if cracked, bent, or damaged from stress or impact causing misalignment or poor fit.

Replacement left door hinge lever for dishwashers. Installs at the door hinge assembly. Replace if bent, cracked, or damaged from door misalignment.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Plastic bushing that guides and supports the dishwasher door hinge assembly. Replace if cracked, broken, or worn causing noisy or misaligned door movement.

Single Torx T20 screw secures dishwasher panels, brackets, and trim. Replace missing, stripped, or damaged fasteners to keep components tight.

This metric M4 x 8 screw secures the toe-kick/lower access panel at the base of the appliance. Replace a missing or stripped fastener to keep the kickplate tight and aligned, helping prevent looseness and noise.

• Secures the toe-kick or lower access panel to the base/frame
• Restores proper fit when the original screw is lost or damaged
• Helps reduce panel rattles and vibration
• Maintains correct alignment and clearance at the bottom edge

• Disconnect power before servicing; also shut off the water supply
• Support the panel and align holes before threading the screw
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Verify size matches the original; replace matching hardware together if required by your model

Replacement door hinge plate for dishwashers. Secures the door to the cabinet frame. Replace if cracked, bent, warped, or broken from impact or wear.

Replace your dishwasher's right door hinge lever if bent, broken, or causing door misalignment. Installs on the lower right side for proper door support.

Dishwasher mounting clip secures components in place. Replace if clip is cracked, broken, or missing to restore proper fit and stability of parts.

The Power Module Programmed is an OEM part for Bosch dishwashers. This module works behind the scenes to coordinate power distribution during cycles.

It communicates with other control boards and modules to determine the appropriate settings for each cycle. The programmed power module ensures all systems receive the right voltage at the correct times according to temperature, spray pressure, wash duration and more.

Causes can include failures in its circuitry or firmware over extensive use. The module may also malfunction if exposed to moisture infiltration or temperature fluctuations inside the dishwasher.

Symptoms of a malfunctioning programmed power module include:

• Cycles failing to start or incomplete washing
• Fluctuating water temperatures
• Unresponsive buttons and display
• GFCI breaker trips frequently

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Dishwasher won't power on or trips breaker? This power cord connects your dishwasher to the electrical outlet. Straightforward installation.

Fix dishwasher not starting, intermittent power issues, or control panel errors with this wire harness. Routes electrical signals between components.

Dishwasher indicator light not working or staying on? This light signals cycle status and alerts. Common fix for control panel display issues.

Support bracket that secures the toe panel at the bottom front of your dishwasher. Replace if broken, missing, or damaged from impact or wear.

Replacement base panel for dishwashers. Installs at the bottom front to cover internal components. Replace if cracked, bent, missing, or damaged.

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.
