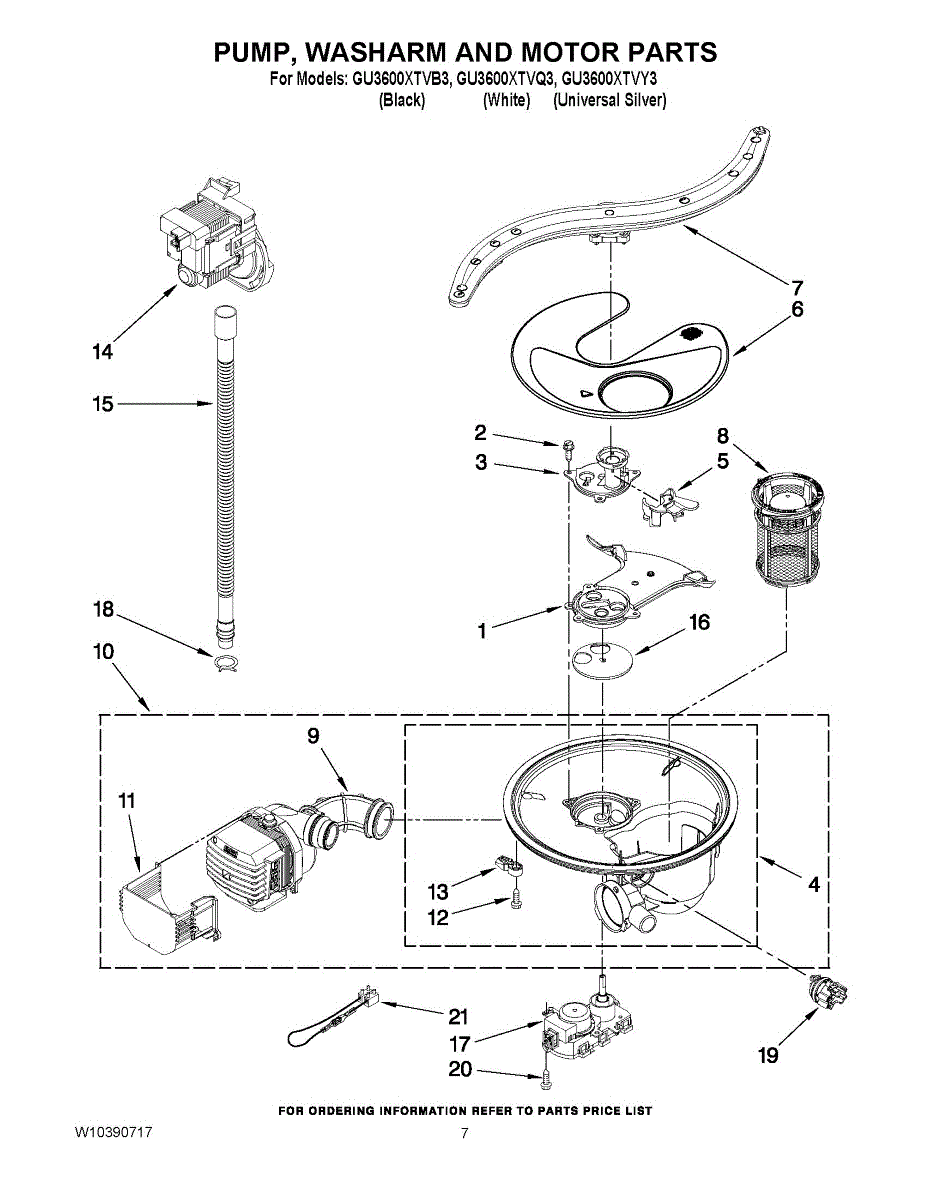

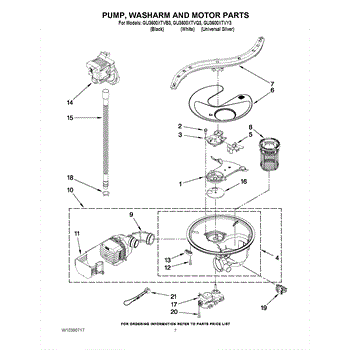

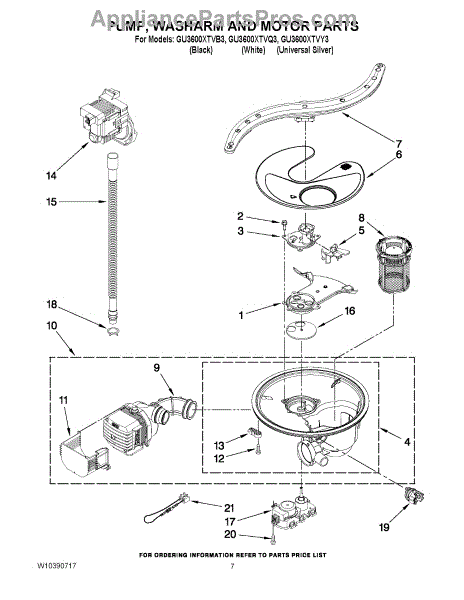

Parts for Whirlpool GU3600XTVB3: 06 - Pump, Washarm And Motor Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Leaking from the bottom or center of your dishwasher? The sump housing with included shaft seal often fixes this issue. DIY-friendly with video guide.

Fine mesh screen filter sits in the dishwasher sump to trap food particles and debris, protecting the pump and wash system. Replace when clogged or damaged. Confirm fit with your model number.

Traps large food particles and debris to prevent pump clogs in your dishwasher. Replace when buildup causes poor cleaning or drainage issues.

This is a durable pump and motor assembly for dishwashers. The purpose of the pump and motor is to pump water that goes through the spray arms when the dishwasher moves through a cycle. If the pump and motor assembly isn't working correctly, it could lead to dishes that are dirty after a cycle is complete. Other signs of a bad pump and motor include pooling water after a cycle and whining noises.If the pump and motor assembly need to be replaced, make sure the dishwasher is unplugged. Use a pair of work gloves to protect the hands throughout the process. Close the water supply valve and disconnect the drain line. Replacing the pump and motor assembly may require tilting the dishwasher on its side to disassemble the components that are in the way of the replacement. Once the pump and motor have been removed, install the new parts and reassemble the dishwasher before use.Created for use with dishwashers by KitchenAid, Kenmore, and Whirlpool, this pump and motor assembly is a genuine OEM replacement part. It is sold as a single part. This component is directly sourced from the manufacturer.

Replace your dishwasher's protective shield if it's cracked, broken, or missing. This shield installs to protect internal components from water and debris.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

The Drain Pump is an OEM part for Whirlpool dishwashers. It is responsible for removing wastewater from the dishwasher tub during the drain cycle, ensuring that the dishwasher operates efficiently and effectively.

Causes of a bad drain pump can include clogging from food particles and debris, damage to the pump impeller, or electrical failures within the pump motor. Over time, regular use can lead to wear and tear that affects the pump's performance.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Standing water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Error codes related to drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Flexible drain hose carries wastewater from your dishwasher to the kitchen drain. Replace if cracked, leaking, burst, or damaged by wear or pests.

Fix weak spray or poor cleaning with this dishwasher disk valve diverter. Restores water flow between spray arms when circulation is uneven or inconsistent.

The Diverter Motor is an OEM part for Whirlpool dishwashers. It controls the movement of the diverter disc, which directs water flow to different spray arms during the wash cycle. This ensures that all areas of the dishwasher receive adequate water pressure for effective cleaning.

Causes of a bad diverter motor can include electrical malfunctions, wear and tear from frequent use, or damage from water exposure. A faulty diverter motor can prevent the proper distribution of water, leading to poor cleaning performance.

Symptoms of a bad diverter motor include:

• Dishes not being cleaned properly
• Unusual noises coming from the dishwasher during operation
• The dishwasher not advancing through cycles correctly
• Water not reaching all areas of the dishwasher

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Includes wire harness WPW10083167, Drain cap part number WPW10193605, and the shaft seal has been incorporated into sump housing, not available separately.

This hose clamp secures dishwasher hoses to fittings and ports to maintain a tight, leak-resistant seal. Replacing a worn clamp helps prevent drips and loose connections that can cause water under the unit.

• Secures drain or circulation hose to the pump, sump, or other dishwasher fittings
• Helps maintain a watertight seal at hose connection points
• Can help resolve water dripping from a hose joint or a loose hose
• Replace if corroded, deformed, cracked, or no longer holds tension

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Fully seat the hose on the fitting, position the clamp over the barb/connection, and secure firmly
• After reassembly, run a brief fill/drain and check all connections for leaks

The Turbidity Sensor is an OEM part for Whirlpool dishwashers. It detects the level of particles in the water during the wash cycle, allowing the dishwasher to adjust the cycle duration and water usage for optimal cleaning performance. This sensor ensures that dishes are thoroughly cleaned by monitoring water clarity.

You should replace the turbidity sensor if it becomes faulty or damaged. Causes of a bad turbidity sensor can include regular wear and tear, exposure to hard water minerals, or electrical malfunctions. A malfunctioning sensor can lead to inefficient cleaning cycles and poor wash results.

Symptoms of a bad turbidity sensor include:

• Dishes not being cleaned properly
• Dishwasher running longer than usual or shorter cycles
• Error codes related to the sensor
• Inconsistent wash performance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
