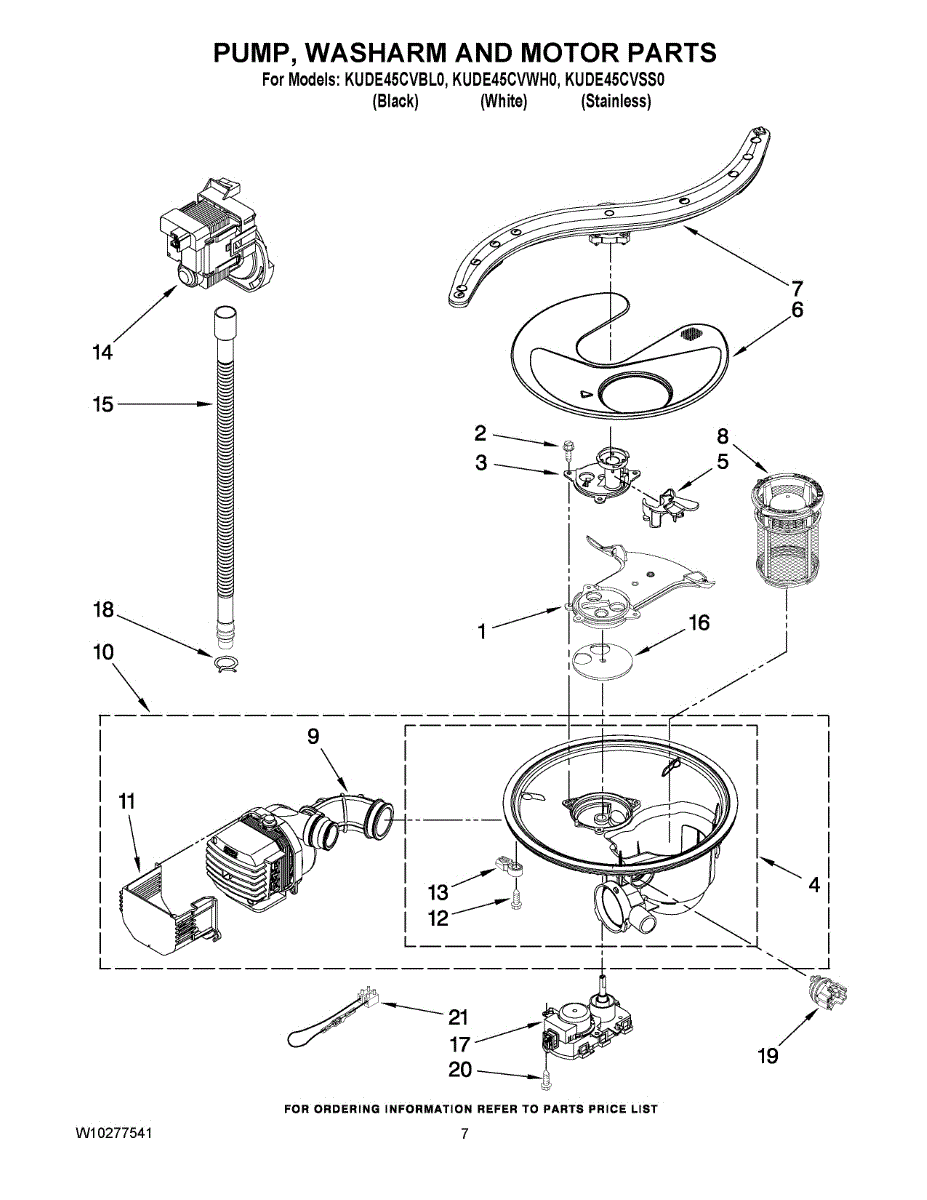

Parts for Kitchenaid KUDE45CVBL0: 06 - Pump, Washarm And Motor Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Leaking from the bottom or center of your dishwasher? The sump housing with included shaft seal often fixes this issue. DIY-friendly with video guide.

Fine mesh screen filter sits in the dishwasher sump to trap food particles and debris, protecting the pump and wash system. Replace when clogged or damaged. Confirm fit with your model number.

Fix dishes not getting clean with this dishwasher spray arm. Rotates to distribute water evenly across all dishes during wash cycles. Easy install.

Dishwasher not draining or washing? This pump and motor assembly moves water through sprayers and drains it out. Moderately difficult repair.

Replace your dishwasher's protective shield if it's cracked, broken, or missing. This shield installs to protect internal components from water and debris.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

The Drain Pump is an OEM part for Whirlpool dishwashers. It is responsible for removing wastewater from the dishwasher tub during the drain cycle, ensuring that the dishwasher operates efficiently and effectively.

Causes of a bad drain pump can include clogging from food particles and debris, damage to the pump impeller, or electrical failures within the pump motor. Over time, regular use can lead to wear and tear that affects the pump's performance.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Standing water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Error codes related to drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Flexible drain hose carries wastewater from your dishwasher to the kitchen drain. Replace if cracked, leaking, burst, or damaged by wear or pests.

Fix weak spray or poor cleaning with this dishwasher disk valve diverter. Restores water flow between spray arms when circulation is uneven or inconsistent.

The Diverter Motor is an OEM part for Whirlpool dishwashers. It controls the movement of the diverter disc, which directs water flow to different spray arms during the wash cycle. This ensures that all areas of the dishwasher receive adequate water pressure for effective cleaning.

Causes of a bad diverter motor can include electrical malfunctions, wear and tear from frequent use, or damage from water exposure. A faulty diverter motor can prevent the proper distribution of water, leading to poor cleaning performance.

Symptoms of a bad diverter motor include:

• Dishes not being cleaned properly
• Unusual noises coming from the dishwasher during operation
• The dishwasher not advancing through cycles correctly
• Water not reaching all areas of the dishwasher

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Includes wire harness WPW10083167, Drain cap part number WPW10193605, and the shaft seal has been incorporated into sump housing, not available separately.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Turbidity Sensor is an OEM part for Whirlpool dishwashers. It detects the level of particles in the water during the wash cycle, allowing the dishwasher to adjust the cycle duration and water usage for optimal cleaning performance. This sensor ensures that dishes are thoroughly cleaned by monitoring water clarity.

You should replace the turbidity sensor if it becomes faulty or damaged. Causes of a bad turbidity sensor can include regular wear and tear, exposure to hard water minerals, or electrical malfunctions. A malfunctioning sensor can lead to inefficient cleaning cycles and poor wash results.

Symptoms of a bad turbidity sensor include:

• Dishes not being cleaned properly
• Dishwasher running longer than usual or shorter cycles
• Error codes related to the sensor
• Inconsistent wash performance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)
