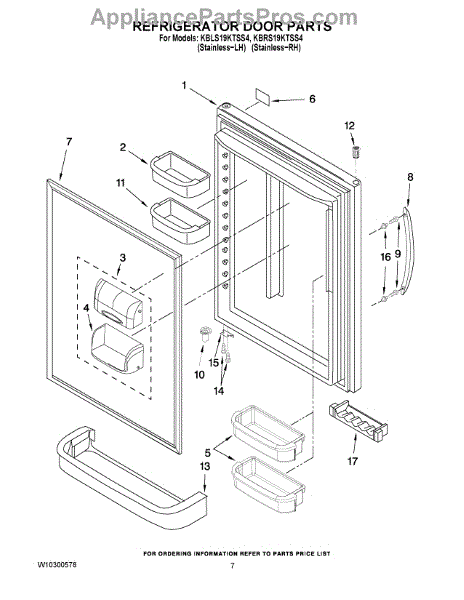

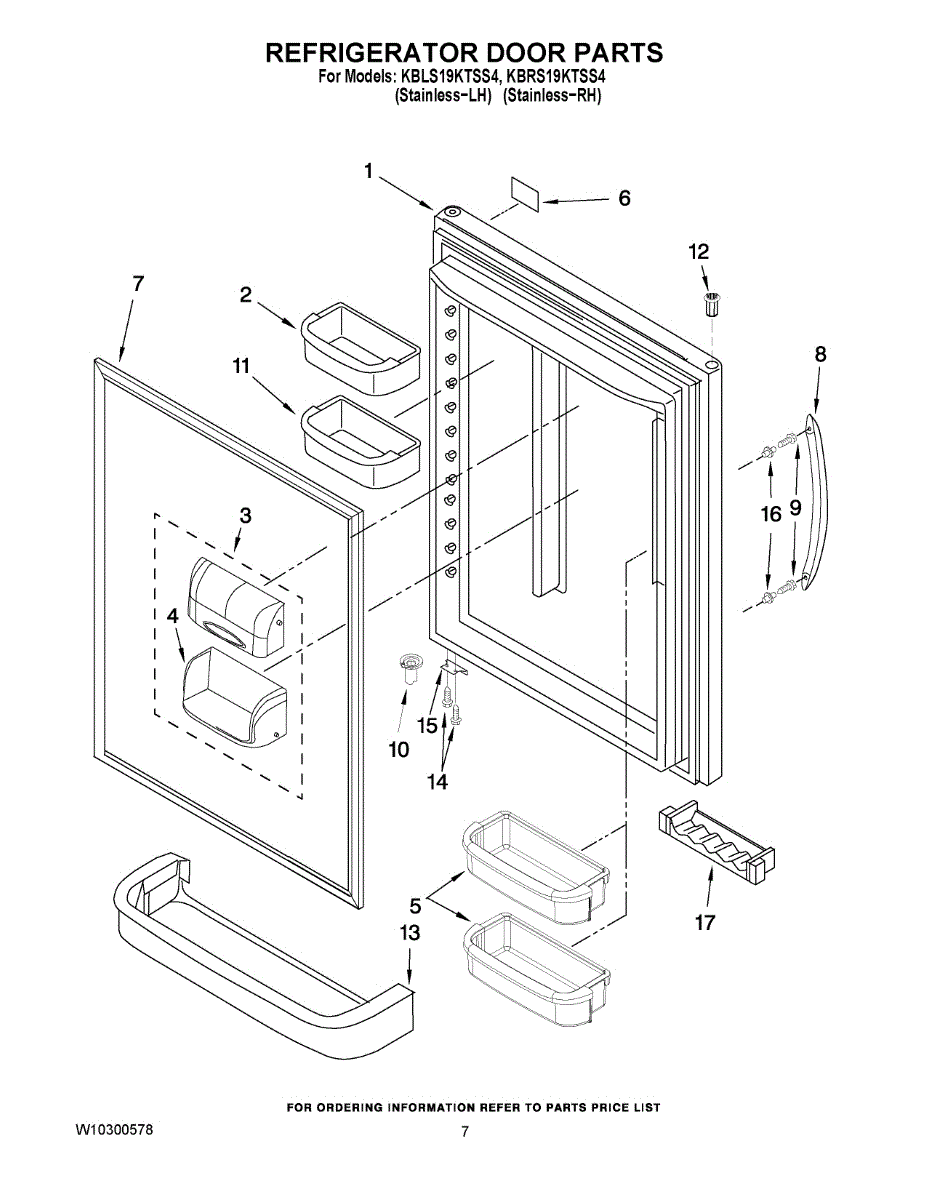

Parts for Kitchenaid KBLS19KTSS4: 04 - Refrigerator Door Parts

Replacement flip-up cover for the butter/dairy bin on your refrigerator door. Replaces cracked, broken, or missing covers to keep contents secure.

Replace a cracked, broken, or missing dairy tray on your refrigerator door. This bin installs on the door to organize butter and small items in one spot.

Replacement door bin for refrigerator door storage. Installs on inner door to hold condiments, jars, and bottles. Replaces cracked or broken bins.

Seals the refrigerator door to keep cold air in and moisture out. Replace if worn, deformed, or causing temperature issues. Confirm fit with your model.

Black handle for refrigerator doors and drawers. Replace a cracked, loose, or missing handle to restore a secure grip and refresh your appliance's look.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Black plastic cam that the refrigerator door rides on to open and close smoothly. Replace if cracked, worn, or broken causing door misalignment issues.

Clear plastic door bin snaps into refrigerator inner door liner to hold bottles, jars, and condiments. Replace cracked, broken, or missing bins.

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Replacement door can caddy for bottom-mount refrigerators. Secures removable canisters in door compartment. Needed when original is cracked or missing.
