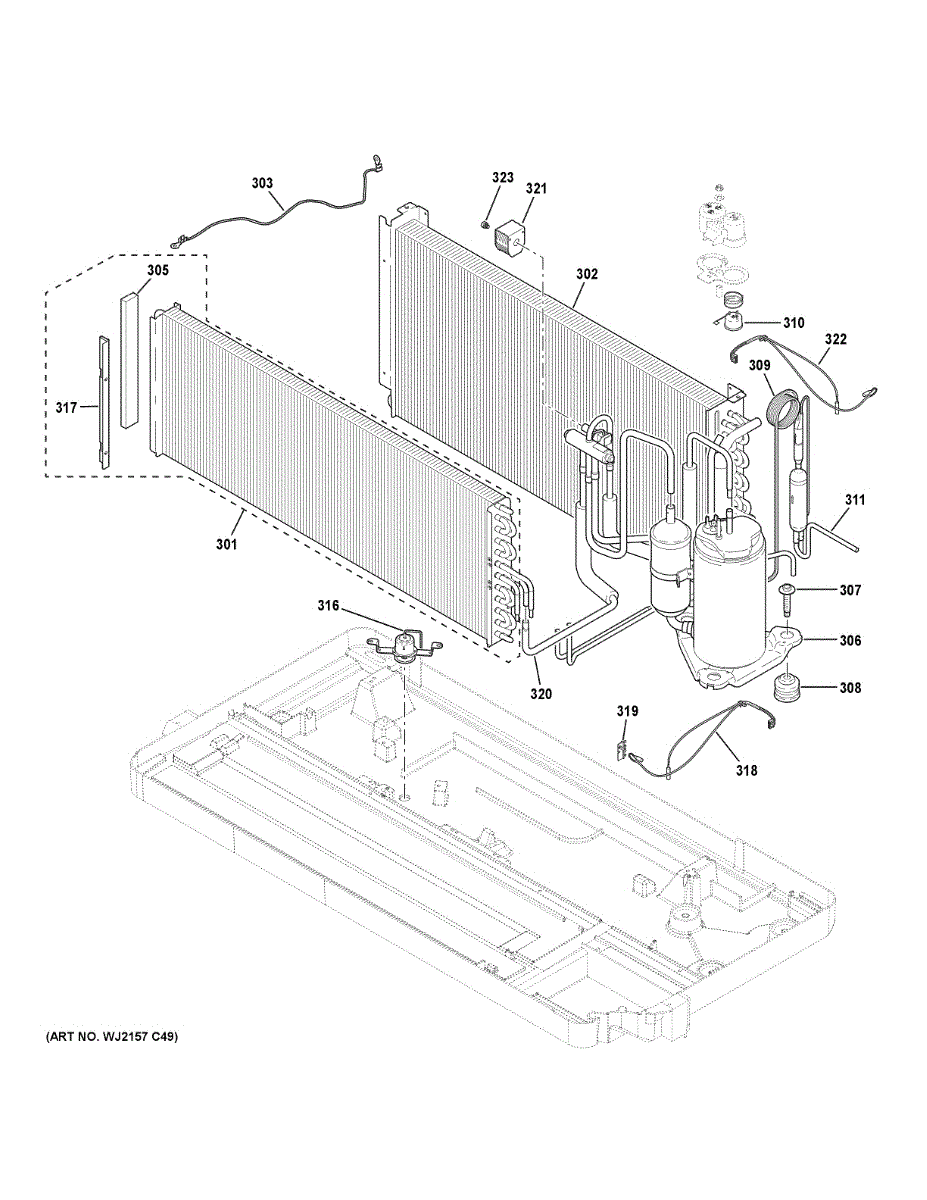

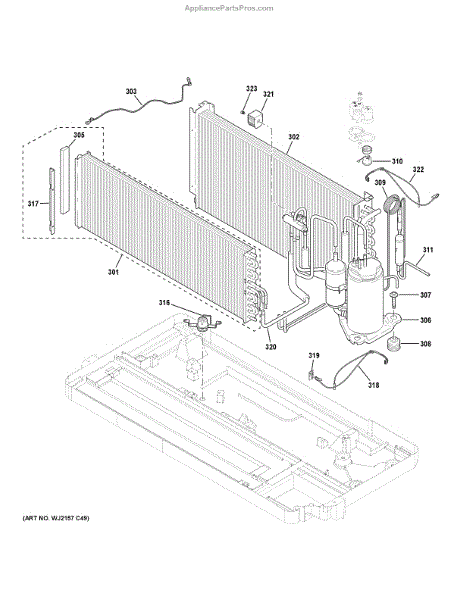

Parts for Ge AZ65H07EACW5: Sealed System Parts

This indoor evaporator coil with foam assembly circulates refrigerant and absorbs heat to keep the refrigerator/freezer compartment cold. Designed to restore normal cooling performance when the evaporator is damaged or failing. What it does:

• Evaporates refrigerant to remove heat from the cabinet and enable cooling
• Helps prevent excessive frost build-up when functioning properly
• Can address symptoms such as reduced cooling or warm compartments
• Works as part of the sealed refrigeration system; not a standalone cooling unit

• One indoor evaporator coil with foam assembly

• Disconnect power before beginning any service
• Replacement may require access behind interior panels and removal of shelving/trim
• Inspect surrounding insulation and mounting surfaces and replace damaged components as needed

Fix poor cooling or warm air from your room air conditioner with this outdoor condenser coil assembly. Direct-fit replacement restores heat exchange.

This foam insulator fits on the coil side to cushion, seal and protect the evaporator area—helping reduce vibration, prevent rubbing, and maintain proper airflow around the coil for more consistent cooling performance. What it does

• Cushions the evaporator coil to prevent vibration and rattling noises
• Seals gaps around the coil to help direct airflow where needed
• Protects coil edges from abrasion against adjacent components
• Helps reduce moisture migration that can cause ice buildup in the coil area

• Disconnect power to the appliance before beginning any work
• Access may require removing the evaporator cover or interior panels
• Fit the foam to the coil edge and adjacent frame; replace if torn or compressed

A rubber compressor grommet that cushions the compressor and helps reduce vibration and noise for more stable, quieter operation. Fits over compressor mount studs to isolate the compressor from the cabinet frame. What it does:

• Absorbs and isolates compressor vibration to reduce rattling and noise
• Prevents metal-to-metal contact between compressor and mounting plate
• Helps protect mounting hardware and compressor casing from wear
• Commonly used when noise, vibration, or movement is noticed around the compressor area

• Disconnect power to the appliance before servicing to avoid shock hazard
• Access the compressor from the rear panel; support the compressor when removing mounts
• Replace any additional worn grommets or mounting hardware for best results

Fix water leaking from your air conditioner with a new thermostatic drain valve. Controls condensate drainage to prevent overflow and water damage.

Fix inconsistent cooling or temperature swings by replacing the thermistor holder that secures your air conditioner's sensor in the proper position.

Fix a room air conditioner that won't cool properly or cycles incorrectly with this temperature sensor thermistor. Common repair for faulty cooling.

This screw secures a solenoid or solenoid-mounted component to its valve or mounting bracket, restoring proper fit and preventing movement. A simple replacement for a stripped, missing or loose mounting fastener. What it does

• Fastens solenoid assemblies or related brackets to their valve/body
• Helps stop solenoid movement, rattling or misalignment caused by a loose or missing screw
• Used when replacing a corroded, damaged or missing solenoid mounting screw
• Small replacement part that ensures the solenoid stays properly seated during operation

• Unplug the appliance or shut off power before servicing.
• Use the correct screwdriver and avoid overtightening to prevent stripping threads.
• Keep small parts away from children and pets; retain any washers or clips that may be reused.
• If other mounting hardware appears damaged or corroded, inspect the assembly and replace additional parts as needed.
