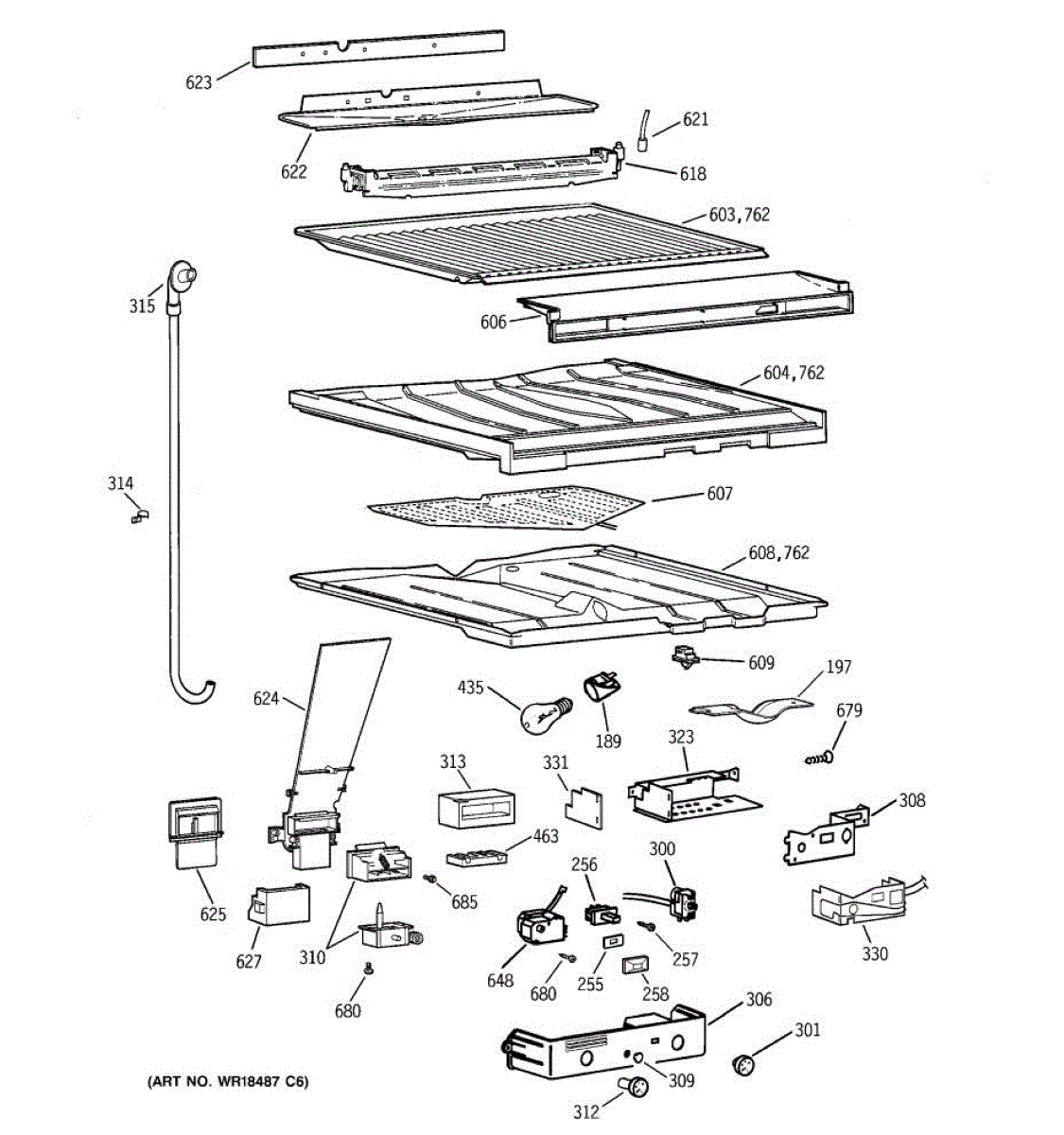

Parts for Ge TBG22PADARWW: 05 - Separator Compartment Parts

Fix electrical connection issues in your refrigerator with this terminal block socket assembly. Connects power to components. Moderate DIY repair.

Size: 8-32 t. Includes 12 screws.

Replace your refrigerator's temperature control knob if cracked, broken, or missing. Mounts on the control panel for adjusting internal temperature.

Fixes ice buildup in freezer or frost on evaporator coils. This defrost heater assembly melts accumulated frost during defrost cycles. Moderate DIY repair.

The Bulb Light is an OEM part for GE refrigerators. It is designed to illuminate the interior of the refrigerator and freezer compartments, making it easier to see and access food items. This light bulb fits securely into the designated socket and provides bright, reliable lighting to enhance visibility.

You should replace the bulb light if it burns out or becomes damaged. Causes of a bad bulb light can include regular wear and tear, electrical issues, or physical damage from impacts or vibrations. A faulty bulb can leave the refrigerator compartments dim or completely dark, making it difficult to find items.

Symptoms of a bad bulb light include:

• The light not turning on when the refrigerator door is opened
• Flickering or intermittent lighting
• A visibly burned-out or broken bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

Collects and channels defrost water from the evaporator to the drain system. Replace if cracked, rotted, or leaking to prevent water pooling inside.

This right-side cover duct assembly directs air and protects internal components in the refrigerator cabinet, restoring proper airflow and finish. A direct-fit replacement that helps maintain even cooling and prevents drafts or noise from loose ducting. What it does

• Channels cold air from the evaporator to the refrigerator compartment for consistent temperature distribution.
• Covers and protects evaporator area components from debris and accidental contact.
• Helps reduce airflow noise caused by damaged or missing ducting.
• Supports proper door closure and interior trim alignment when installed correctly.

• One right-side cover duct assembly.

• Remove power to the appliance before attempting any repairs to avoid shock or injury.
• Handle plastic components carefully to avoid cracking; use proper tools to remove fasteners.
• Verify part orientation and secure all clips/fasteners; misaligned ducts can affect cooling performance.

This nozzle insulation is a molded heat-resistant pad that protects the nozzle area and surrounding components from excessive heat, helping maintain safe operation and prolong component life. What it does:

• Insulates the nozzle area to reduce heat transfer to nearby parts and wiring
• Helps prevent heat-related damage to seals, gaskets, and electrical components
• Can reduce risk of burning odors or visible heat discoloration around the nozzle
• Supports proper operation by keeping surrounding components within intended temperature range

• One nozzle insulation pad

• Disconnect power (and gas if applicable) before servicing to avoid shock or gas hazards
• Inspect surrounding components and mounting surfaces; replace any damaged parts before installing
• Install in the same orientation as the old pad; ensure it sits flush and does not interfere with moving parts

8-18 CA HX 1/2 S
