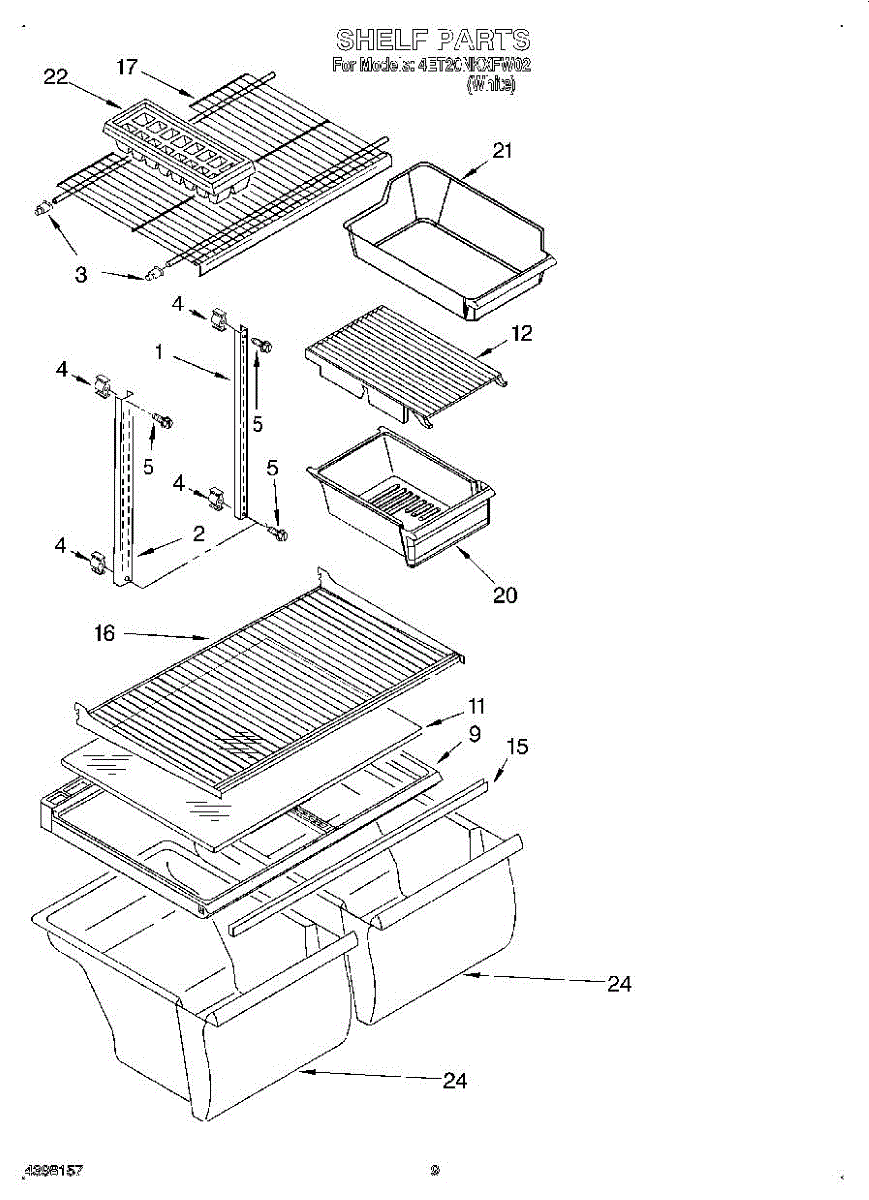

Parts for Whirlpool 4ET20NKXFW02: 05 - Shelf, Lit / Optional Parts

This mounting cup installs in the freezer liner to create a secure attachment point for the ice maker or its bracket. It helps keep the assembly stable and properly aligned so the ice maker mounts firmly and operates reliably. What it does:

• Provides the receiving anchor for the ice maker/bracket mounting screw
• Helps hold the ice maker level and reduces movement or vibration
• A worn, stripped, or missing cup can prevent the screw from tightening
• Common signs include a loose or sagging ice maker, rattling, or difficulty keeping the ice maker aligned

• 1 mounting cup

• Disconnect power and shut off the water supply before servicing
• Remove the ice maker to access the cup location
• Seat the cup fully into the liner opening, then reinstall the bracket/ice maker and mounting screw
• Do not overtighten; verify the ice maker sits level and clears the fill tube

This screw support secures the dryer drum ladder assembly, helping maintain proper alignment and stable rotation for reliable drying performance. It replaces a worn or broken support to reduce noise and rattling during operation. What it does:

• Holds the ladder/support bracket in place so the drum rotates smoothly.
• Prevents excessive movement that can cause scraping, knocking, or rubbing noises.
• Restores correct positioning to reduce wear on adjacent components.
• Suitable when the original support is cracked, bent, or missing fastener points.

• One screw support (ladder) as shown.

• Intended for experienced DIYers; confirm compatibility with your model before installing.
• Disconnect power (unplug electric or shut off gas and unplug) before beginning work.
• Handle small parts carefully and keep track of fasteners; use appropriate hand tools.

Plastic frame that supports the glass shelf above crisper drawers. Replace if cracked, broken, or warped. Holds drawers below and provides shelf space above.

The Glass Shelf is an OEM replacement part for Whirlpool refrigerators. Located inside fridge storage compartments, the durable tempered glass provides a stable surface for arranging items. Note: Frame not included.

Symptoms of a cracked or damaged glass shelf include:

• Sharp, exposed glass edges posing injury risks when accessing the fridge
• Instability causing stored items to fall during opening
• Food spills or liquids seeping into the fridge walls
• Warping of shelf slide brackets from excessive weight loads

Causes relate to impact damage from overloading or appliance shifting. Normal wear from continuous use may also weaken shelf material integrity over 15+ years.

Compatible models include Maytag, Jenn-Air, Amana, and selected KitchenAid refrigerators.

Metal support bar that mounts to the refrigerator liner to hold the crisper cover frame and glass level. Replace if broken, missing, or bent.

Ice scattered in freezer or missing ice storage? This refrigerator ice bin collects and stores ice from your icemaker. Easy slide-in installation.

Cracked or broken ice cube tray? This plastic tray restores manual ice-making in your refrigerator. Simple drop-in replacement, no tools required.

Replace your cracked, broken, or missing refrigerator crisper drawer. Slides into the bottom compartment to store fruits and vegetables. Easy DIY fix.

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.
