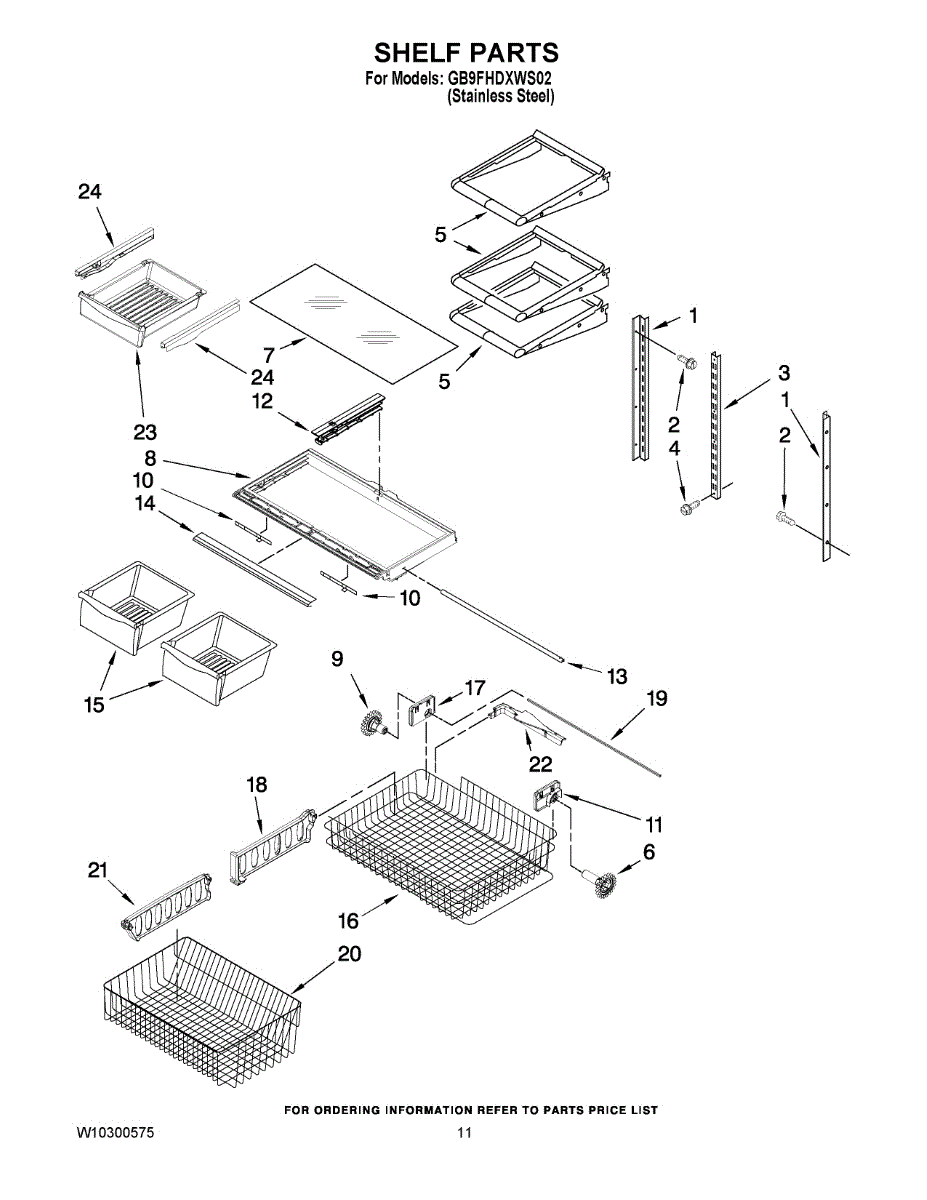

Parts for Whirlpool GB9FHDXWS02: 06 - Shelf Parts

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Replace a cracked or broken shelf support ladder in your refrigerator. This ladder stabilizes shelf rails and prevents sagging. Easy DIY installation.

Replacement mounting screw for refrigerators, ranges, and other appliances. Replaces lost, stripped, or damaged screws during repairs or maintenance.

Replace a cracked, broken, or missing glass shelf in your refrigerator. Restores a stable storage surface for organizing groceries and containers.

Refrigerator freezer drawer glide gear that attaches to the rear shaft. Replace if broken, cracked, or missing tabs cause your basket to lean or fall off track.

Glass shelf that sits above crisper drawers to create storage space and help bins seal properly. Replace if cracked, shattered, or missing. Confirm fit by model.

Structural frame that supports and aligns crisper drawers in your refrigerator. Replace if cracked, broken, or collapsed to restore proper drawer fit.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

Humidity control slide for refrigerator crisper drawers. Replace this plastic slide if the lever tab has snapped off, cracked, or broken during use.

Right-side gear mount bracket for refrigerators. Secures gear assembly in place. Replace if cracked, broken, or mounting tabs are damaged or missing.

Center support rail that guides and stabilizes crisper drawers as they slide. Replace if cracked, broken, or missing tabs prevent smooth drawer operation.

White plastic center support brace for 30-inch refrigerator crisper shelves. Replaces cracked, broken, or missing braces to prevent glass sagging.

Replaces the edge trim on your refrigerator's crisper cover. Restores a secure grip, supports the glass shelf, and ensures smooth drawer operation.

Replacement crisper pan for refrigerators. Stores fruits and vegetables in the lower drawer area. Order when your original is cracked, broken, or damaged.

Left-side gear mount bracket for bottom-mount refrigerators. Secures gear assembly in place. Replace if cracked, broken, or damaged to restore stability.

Plastic divider that organizes items in refrigerator storage baskets. Snaps into basket assembly. Replace if cracked, broken, or missing clips prevent secure attachment.

Molded freezer basket organizes frozen foods in your refrigerator. Replace if cracked, broken, or missing to restore proper food storage and organization.

This replacement oven door handle restores a secure grip for opening and closing the oven door. It replaces a damaged, loose, or missing handle to make door use safer and more convenient. What it does:

• Provides a sturdy grip for opening and closing the oven door
• Replaces handles that are cracked, bent, loose, or missing
• Helps prevent slippage and improves user control when handling hot appliances
• Matches the original mounting style for a straightforward replacement

• Use basic hand tools; support the door while removing and installing the handle to avoid injury or damage
• Disconnect power to the appliance or ensure it is cool before attempting replacement
• Tighten mounting fasteners securely but do not overtighten to avoid stripping

Clear deli drawer pan that slides under the pantry compartment in your refrigerator's fresh food section. Replace if cracked, broken, or missing.

Drawer glide for refrigerator deli or crisper drawers. Replace if cracked, broken, or causing drawer to stick or fall out when opened. Mounts to shelf.

Replace your cracked or broken refrigerator drawer glide. Mounts to the interior wall to support smooth drawer sliding. Essential for worn or damaged glides.
