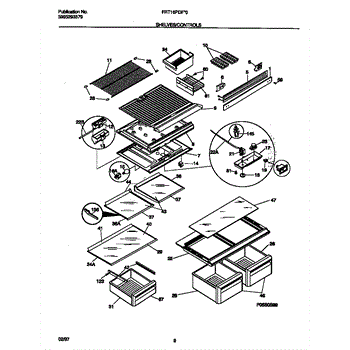

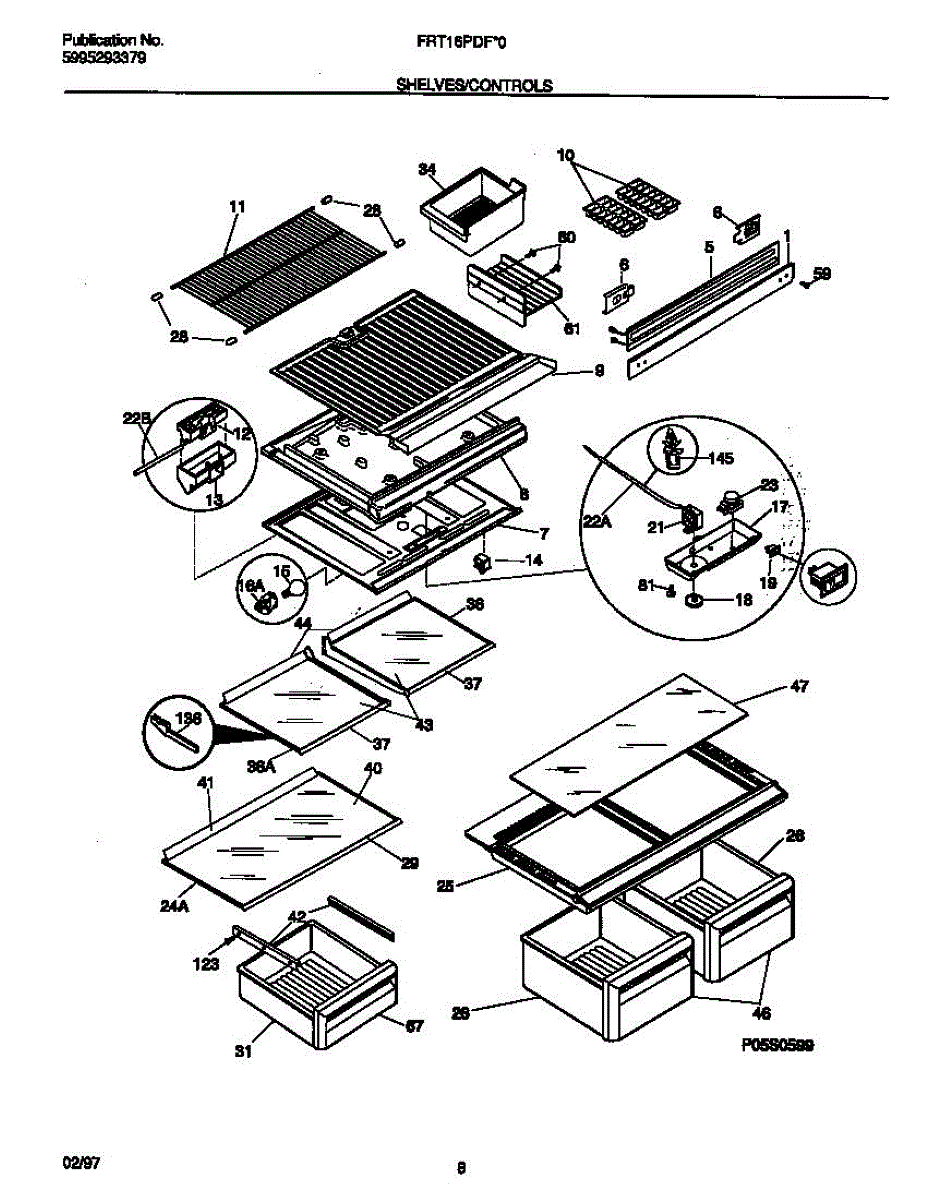

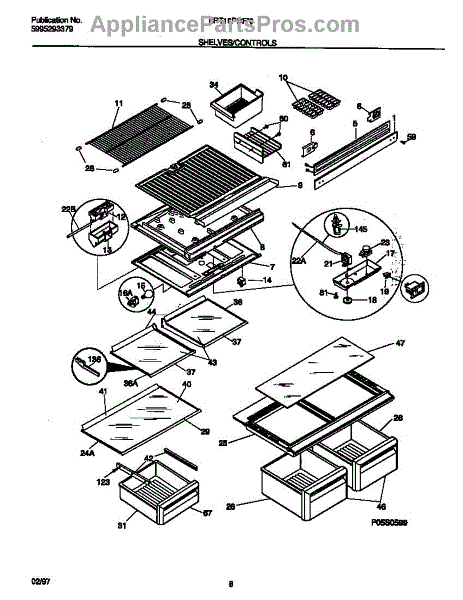

Parts for Frigidaire FRT16PDFD0: 04 - Shelves / Controls Parts

Tapping plate that mounts the mullion vertical trim on your refrigerator. Replace if cracked, stripped, or missing to restore secure trim attachment.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.

Wiring harness for refrigerators. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections are loose.

Optional flexible ice tray for those that dont have an icemaker

Plastic spacer that maintains proper distance between refrigerator shelves. Replace if cracked, broken, or missing to restore correct shelf positioning.

Replace your cracked or broken refrigerator freezer shelf. This storage shelf installs inside the freezer compartment to organize frozen items.

Foam seal for refrigerator air deflector. Replace if torn, compressed, or causing temperature issues. Ensures proper airflow between compartments.

Air deflector with cover for freezers. Directs airflow inside the freezer compartment. Replace if cracked, broken, or missing to restore proper air circulation.

This door-activated light switch controls the interior lamp in your refrigerator. Replace a worn or sticking switch to restore dependable lighting and prevent the bulb from staying on and warming the compartment when the door is closed.

• Opens and closes the light circuit as the door is opened and closed
• Helps prevent the light from staying on with the door shut
• Common symptoms: interior light won't turn on, stays on with the door closed, or works intermittently
• Physical signs may include a stuck/broken plunger or damaged housing

• Disconnect power before servicing
• Gently pry the old switch from the liner/panel and release its locking tabs
• Transfer wires one at a time to the same terminals on the new switch
• Press the new switch fully into place; restore power, and test

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace your refrigerator light socket when bulbs won't illuminate or burn out quickly. Provides secure bulb connection and prevents overheating. Verify fit.

This nut anchor secures the appliance control box to the cabinet, keeping the control module mounted and stable for reliable operation. Replacement restores proper fastening when the original anchor is missing or damaged. What it does:

• Provides a captive fastening point for the control box or control board housing
• Holds the control assembly steady to prevent movement, vibration, or rattling
• Helps maintain proper alignment of electrical connections and wiring harnesses
• Used when the original anchor is stripped, cracked, or no longer grips the panel

• One nut anchor for control box mounting

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the control box per your model's service instructions; remove panels carefully
• Press or fasten the nut anchor into the mounting hole until it seats; secure the control box with the appropriate screw
• If supply threads are damaged, replace any mating fasteners and fit snugly, but not over-tightened.

Fix a refrigerator that won't run or cycles incorrectly with this energy saver switch. Controls power-saving mode. Straightforward DIY repair.

This screw is a direct-replacement fastener used to secure appliance panels and trim so components stay in place and operate quietly. It restores proper fit where mounting screws are missing or worn. What it does:

• Secures panels, trim, brackets or small components to the appliance frame
• Helps prevent rattling, misalignment, or loose parts during operation
• Matches OEM thread and head style for correct fit and reliable fastening
• Useful when replacing stripped or missing mounting hardware

• Disconnect power before servicing electrical appliances
• Use the correct screwdriver or bit to avoid stripping the head
• Keep small parts away from children and pets during installation
• Replace with the exact OEM screw to ensure proper fit and safety

Fix a refrigerator that won't cool, runs constantly, or freezes food with a new temperature control thermostat. Regulates compressor cycling.

Replacement water line tube for refrigerators. Connects water supply to dispenser or ice maker. Replace if cracked, kinked, leaking, or damaged.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Refrigerator not cooling but freezer icing up? The defrost timer controls the defrost cycle. Most DIYers replace it in 5-15 minutes with our video guide.

The Protector Cap is an OEM part for Frigidaire refrigerators. It is designed to shield and protect specific components within the refrigerator, such as the temperature sensor or wiring connections. This cap helps to ensure that these critical parts remain intact and functional, contributing to the overall efficiency and performance of the appliance.

 A compromised protector cap can expose sensitive components to potential damage, leading to malfunctions and decreased refrigerator efficiency.

Symptoms of a bad protector cap include:

• Visible cracks or damage to the cap
• Loose or missing cap
• Exposed or damaged wiring or sensors

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement ice bin that collects and stores ice cubes from your freezer ice maker. Needed when original bin is cracked, broken, or missing.

Replace your refrigerator's rear glass shelf mounting trim. This 21.88" trim secures glass shelves in place. Needed when original is cracked or broken.

Secures panels, brackets, and handles in refrigerators and other appliances. Replace missing or stripped screws to restore secure mounting.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

This replacement screw secures panels, brackets, and other components in your appliance. Replace missing or stripped hardware to restore a tight, rattle-free fit and keep assemblies aligned the way the manufacturer intended.

• Fastens the designated component to the appliance cabinet or assembly
• Helps reduce looseness, vibration, and rattling
• Replaces missing, corroded, or stripped screws
• Supports proper alignment of panels, trim, and brackets

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to the original location; retain any reusable clips or washers
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten into plastic or thin metal

Retaining clip for freezer interior components. Secures shelves, bins, or trim pieces in place. Replace if cracked, broken, or missing to restore fit.
