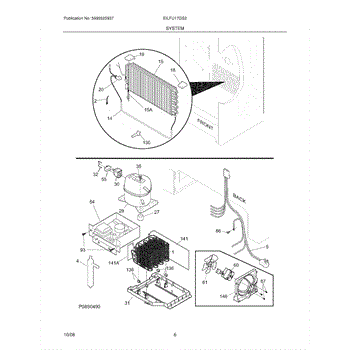

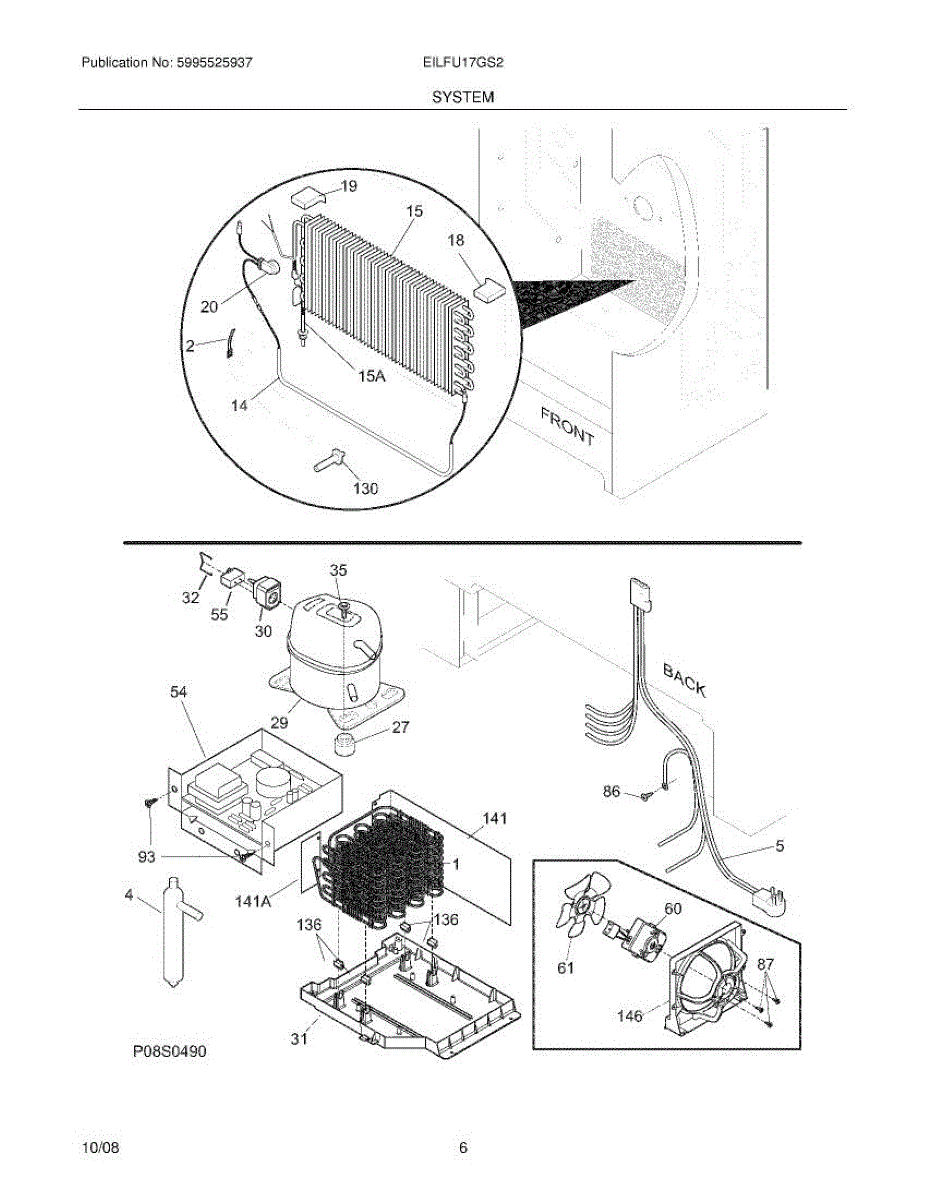

Parts for Electrolux EILFU17GS2: 07 - System Parts

This condenser coil assembly removes heat from the refrigerant so the refrigerator can cool efficiently. Replacing a damaged or clogged condenser restores proper heat transfer and helps the unit run more reliably. What it does:

• Condenses refrigerant from a gas to a liquid by releasing heat to the surrounding air
• Helps maintain correct system pressures so the compressor cycles normally
• Commonly fixes symptoms like the fridge running constantly, higher-than-normal interior temperatures, or overheating at the rear/bottom of the cabinet
• Improves cooling efficiency when the original condenser is bent, crushed, or clogged with debris

• Disconnect power to the appliance before servicing.
• Inspect mounting brackets, lines, and electrical connections during replacement; replace any damaged fasteners or clips.
• Avoid bending fins; straighten with a fin comb if minor damage is present, and ensure adequate ventilation around the condenser after reinstalling.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

This electronic control board manages core cooling functions in your appliance, including compressor/fan operation and the automatic defrost cycle. Replacing a failing board can restore stable temperatures and more reliable, frost-free performance.

• Regulates compressor and evaporator fan operation to maintain the set temperature
• Controls and times the automatic defrost cycle to reduce frost buildup
• Interprets inputs from sensors and user controls to coordinate system responses
• Common symptoms of a failed board: inconsistent temperatures, continuous running or short cycling, heavy frost/ice on coils, or unresponsive/intermittent controls

• Disconnect power before servicing; handle the board with ESD precautions
• Note connector locations; transfer any mounting brackets or covers from the original as needed
• Seat all connectors fully and secure the board before restoring power
• After installation, monitor temperature and defrost operation

Collects defrost water from the evaporator and channels it to the drain system. Replace if cracked, broken, or missing to prevent leaks inside the cabinet.

Secures interior trim and panels in place to eliminate gaps and rattling. Replace when clips break or go missing. Confirm fit with your model number.

This is the electronic control board that governs the appliance's cooling system. It interprets sensor input and user settings to run key components, helping maintain consistent temperatures when the original controller becomes faulty or erratic.

• Monitors temperature sensor feedback and executes cooling cycles to hold the selected setpoint
• Controls major components on applicable models
• May manage additional functions like defrost timing or alarms depending on model design
• Failure can present as warm or unstable temperatures, unit not starting, short-cycling/running constantly, or unresponsive temperature adjustments

• Disconnect power before service; observe ESD precautions and handle the board by its edges
• Note wire/plug locations; transfer connectors to the new board one at a time
• Secure the board in its mounting and ensure all harnesses are fully seated
• Reassemble covers/panels before restoring power and checking operation

Freezer won't start or compressor hums but doesn't run? A failed run capacitor is often the cause. DIY-friendly repair, typically done in under an hour.

Refrigerator not cooling or running constantly? A failed condenser fan motor prevents heat dissipation. DIY repair typically takes 30-45 minutes.

Refrigerator not cooling properly? A damaged condenser fan blade prevents airflow over the condenser coils. Quick DIY fix—simply push into place.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Interior divider for freestanding freezers. Separates compartments and organizes frozen items. Replace if cracked, broken, or missing to restore storage.

Interior divider for upright freezers. Separates compartments and organizes frozen items. Replace if cracked, broken, or missing to restore organization.

Mounting screw for freezers and refrigerators. Secures internal components, panels, or shelving. Replace if stripped, missing, or damaged during repairs.

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

Fix error code E8, high temp alarms, or irregular defrost cycles. This thermistor monitors evaporator temperature. DIY repair typically under 15 minutes.
