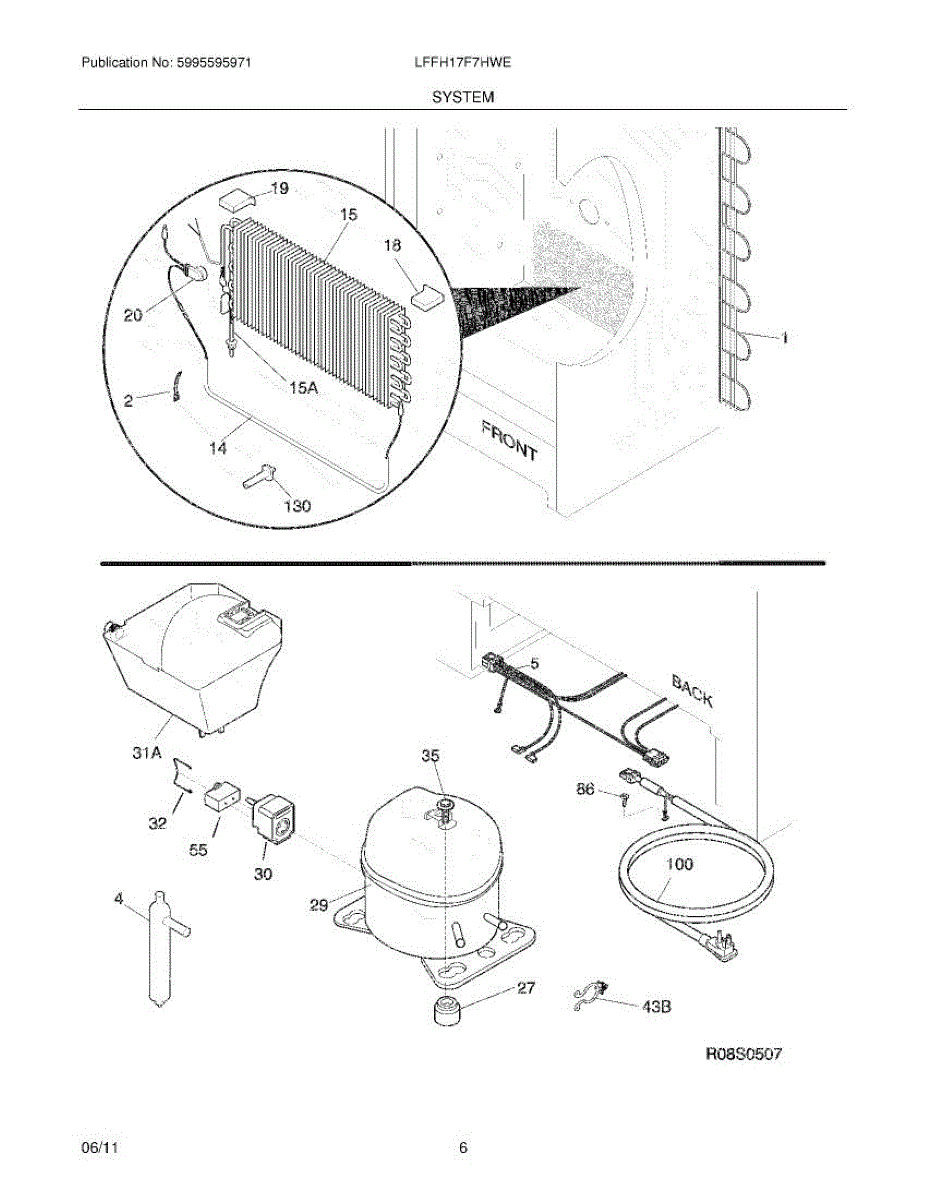

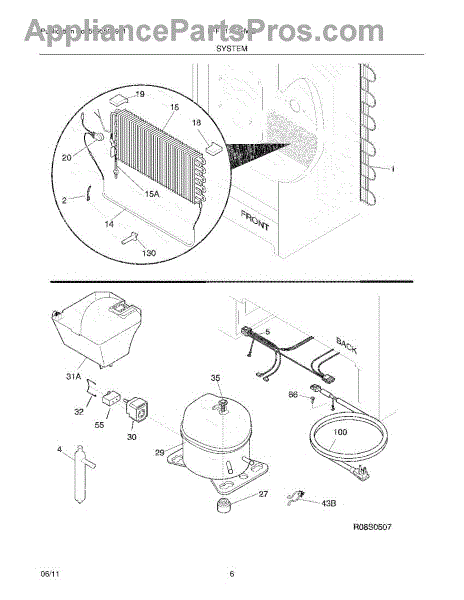

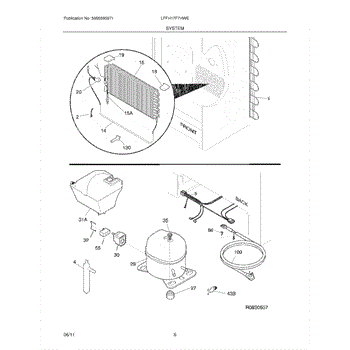

Parts for Frigidaire LFFH17F7HWE: 07 - System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Fixes ice buildup on evaporator coils and restores proper airflow. This defrost heater melts frost during the defrost cycle to maintain cooling performance.

Freezer won't stay cold or runs too cold? A faulty heat exchanger disrupts refrigerant flow. Requires professional brazing and refrigerant recharge.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

The EVAPORATOR INSULATOR is an OEM part for Frigidaire refrigerators. It is a heat-resistant insulating pad or wrap that surrounds the evaporator coils. The insulator works to retain cool air and prevent warmer air from entering the refrigerated compartment.

Causes of a bad insulator can include deterioration or breakdown of insulating properties over time due to aging materials. Cracks, holes, or compressed sections of the insulator result in reduced insulation performance.

Symptoms of a bad evaporator insulator include:

• Inconsistently cool or warmer fridge temperatures
• Frost or ice buildup on evaporator coils or surrounding areas
• Higher than normal electric bills from inefficient cooling
• Warm or cold spots inside refrigerator shelves and compartments

This OEM Frigidaire replacement insulator is compatible with some Kitchenaid, Electrolux, Gibson, Kelvinator, and Kenmore side-by-side refrigerator models.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber grommet for freezers. Cushions and seals components where wires or tubes pass through panels. Replace if cracked, worn, or missing.

Fridge not cooling or making loud buzzing noise? This compressor kit restores cooling in refrigerators and freezers. Professional repair recommended.

This electronic control board serves as the appliance's controller, managing cooling functions, sensor inputs, and status indicators. Replacing a faulty controller can restore stable temperatures and reliable operation.

• Regulates cooling based on temperature-sensor feedback to maintain the set point
• Switches major loads (such as compressor and fan) on and off as designed
• Interfaces with user controls and any status lights/alarms, when equipped
• Common failure symptoms: no cooling or overcooling, constant running, erratic cycling, or unresponsive/intermittent controls or indicators

• Disconnect power before servicing; electrical shock risk
• Handle the board by the edges and use ESD protection to prevent static damage
• Note/photograph all wire connectors before removal; transfer any mounting brackets or covers from the original part
• After reassembly, restore power and allow temperature to stabilize before final evaluation

Drain pan that collects defrost water underneath your freezer. Replace if cracked, warped, or missing to prevent water leakage and floor damage.

Secures interior trim and panels in place to eliminate gaps and rattling. Replace when clips break or go missing. Confirm fit with your model number.

The Run Capacitor is an OEM part for Frigidaire refrigerators. It helps maintain a consistent electrical current to the compressor, ensuring efficient operation and optimal cooling performance.

Causes of a bad run capacitor can include electrical surges, prolonged use leading to wear and tear, or physical damage. A failing capacitor can lead to the compressor running inefficiently or not at all, affecting the refrigerator's ability to maintain the desired temperature.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running inconsistently
• Clicking sounds coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Fix error code E8, high temp alarms, or irregular defrost cycles. This thermistor monitors evaporator temperature. DIY repair typically under 15 minutes.
