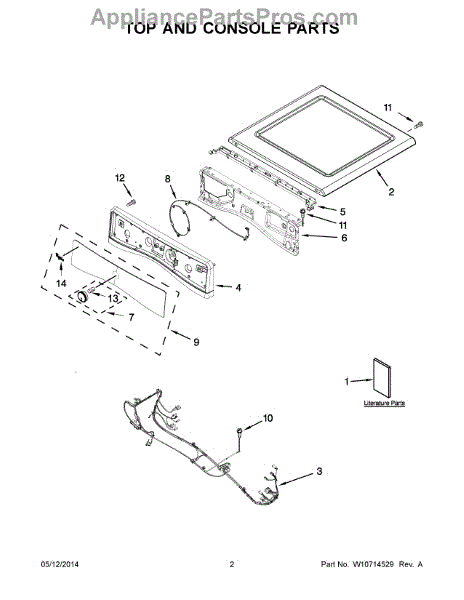

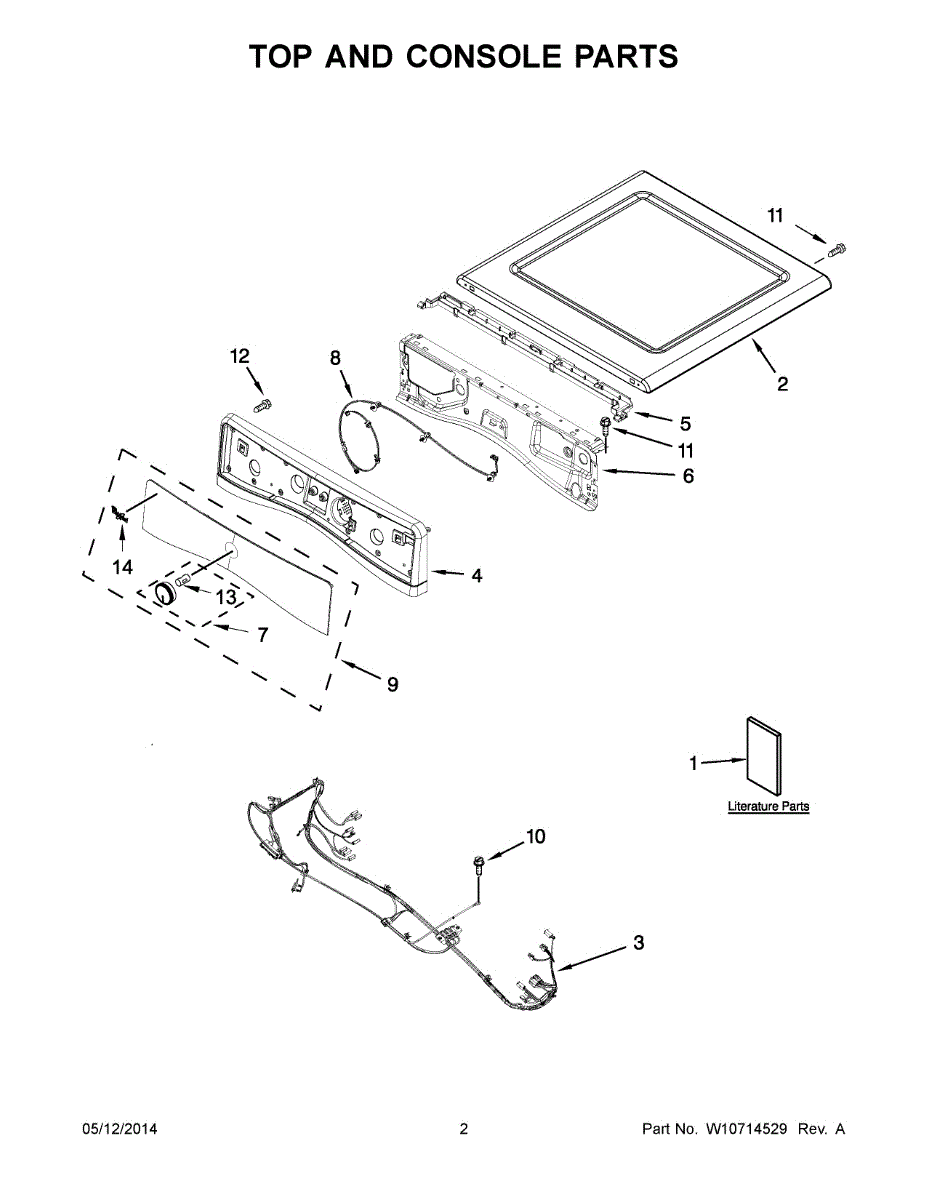

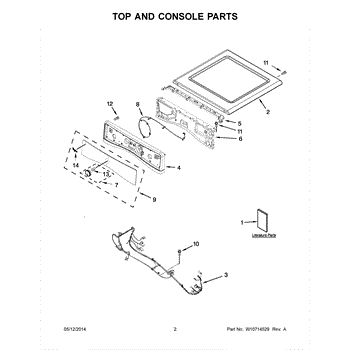

Parts for Whirlpool WED97HEDW0: 02 - Top And Console Parts

Top panel for dryers. Covers and protects the dryer's upper surface. Replace if your original panel is dented, cracked, damaged, or worn from use.

Chrome finish cabinet top panel for dryers. Replaces dented, bent, or rusted top panels to restore clean appearance and secure fit over internal components.

Replaces the upper cabinet cover of your dryer. Needed when the original panel is dented, rusted, warped, or damaged. Restores a secure fit and clean look.

This replacement console is the outer control panel trim that houses and protects the appliance's control buttons and display, restoring the unit's appearance and providing a secure mounting surface for controls. What it does:

• Covers and protects control board components and button assemblies
• Provides the mounting surface for switches, buttons, and display bezels
• Restores a clean, undamaged front appearance after cracks, breaks, or cosmetic wear
• Helps prevent debris from reaching internal control components
• Can resolve issues caused by physically damaged or loose control trim

• Disconnect power to the appliance before starting any work
• Removal typically requires accessing fasteners behind the door, under the top, or at the rear; keep screws and small parts organized
• Handle plastic trim carefully to avoid cracking; use appropriate trim tools if needed
• If the console secures electrical components, verify connectors are reattached and seated before restoring power

Control console assembly for dryers. Mounts on top of the dryer cabinet and houses the control panel. Replace if cracked, damaged, or broken.

Console mounting bracket for dryers. Secures the control panel to the cabinet. Replace if cracked, bent, or broken to restore proper console support.

A replacement control knob that restores reliable manual control of a dial or selector. Fits standard splined control shafts to make setting temperatures, cycles or power levels easy and intuitive. What it does

• Provides a secure grip and clear rotation for selecting settings on the appliance's control shaft
• Replaces cracked, worn or missing knobs that are hard to turn or won't stay in position
• Restores tactile feedback and alignment so settings register correctly with the control shaft
• Useful when original knob splines are stripped or the outer cap is damaged

• Typically installs by aligning splines and pushing firmly onto the control shaft until seated
• Power to the appliance should be turned off when removing and installing control parts
• Do not force the knob onto a shaft that does not match; verify spline match before installation
• If knob does not engage or control still fails, the underlying switch or shaft may need inspection

Color: Grey

Chrome control panel knob for washers, dryers, and laundry centers. Replaces broken, cracked, or missing knobs on your control panel dial assembly.

Internal wire harness assembly that connects dryer components for signal and power flow. Replace if wires are cracked, frayed, or connectors are damaged.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Mounting screw for microwaves, dryers, wall ovens, washers, and laundry centers. Replaces lost, stripped, or damaged screws during installation or repair.

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

This name plate is the cosmetic identification plate for the appliance's console, restoring factory appearance and readable markings. It replaces a cracked, faded, or missing plate to make the console easy to read and look finished. What it does:

• Provides the external identification/branding plate for the control area or console
• Restores legible markings that can become faded, scratched, or worn
• Improves overall appearance when the original plate is damaged or missing
• Protects the underlying console surface from minor wear

• One name plate as shown

• Disconnect power to the appliance before starting any work
• Installation may require removing trim or console screws or peeling off old adhesive
• Handle carefully to avoid scratching the new plate; align before fastening or applying adhesive

Color: Grey
