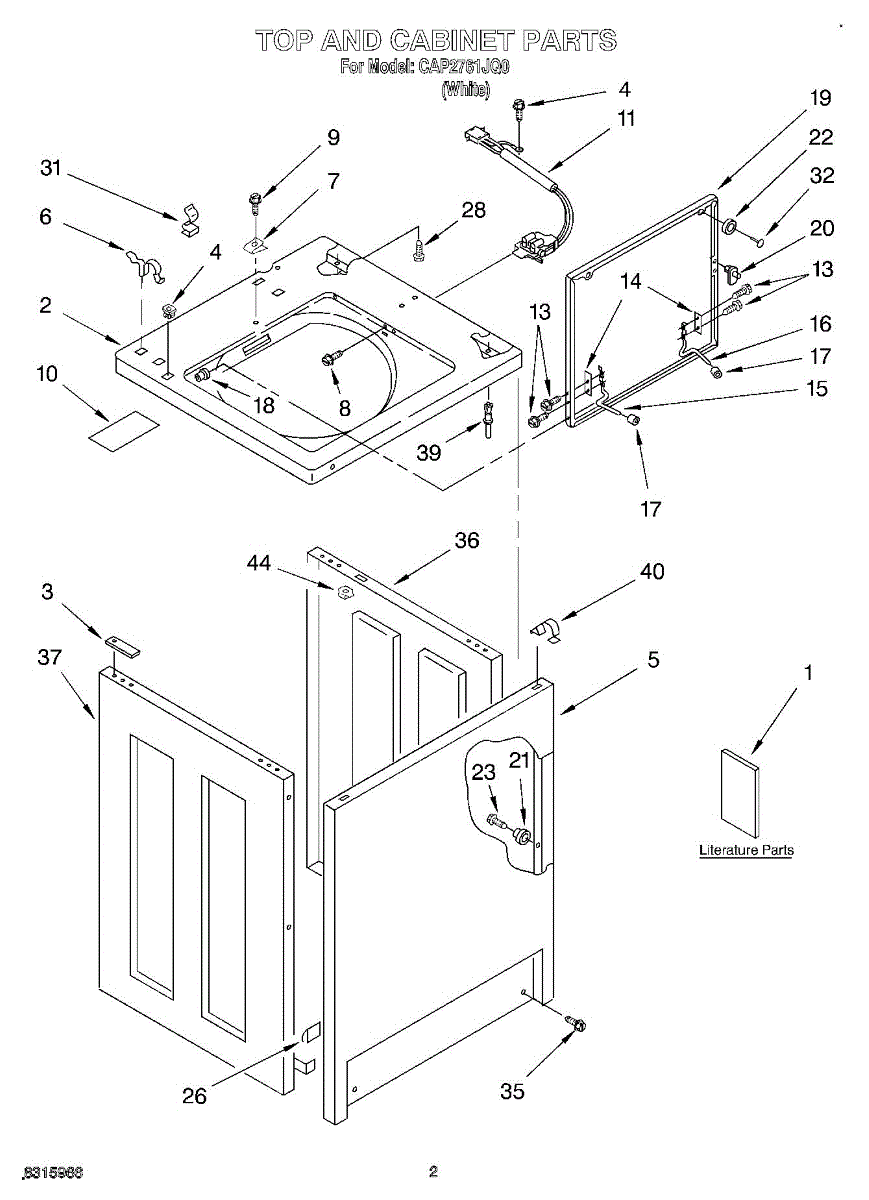

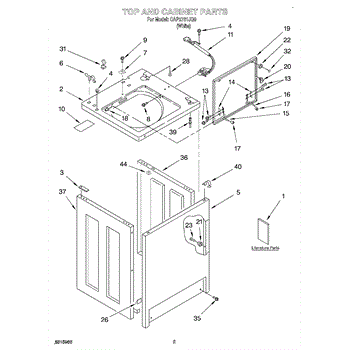

Parts for Whirlpool CAP2761JQ0: 02 - Top And Cabinet, Literature Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Spacer that mounts between the washer cabinet and top panel. Replace if cracked, broken, or missing to maintain proper spacing and alignment.

Used to lock washer cabinet to rear wall of washer.

This screw and washer is an OEM replacement part used for Whirlpool washers. It is used to secure the lid switch. Each screw is sold individually. The screw measures approximately 1 inch.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

Washer won't spin or drain? A faulty lid switch assembly often causes these issues. DIY-friendly repair with video guide—most installs under 30 minutes.

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Cushioning pad that installs between the washer lid hinge and cabinet. Replace if cracked, worn, or missing to reduce squeaks and prevent metal wear.

Washer lid hinge attaches the lid to the cabinet, allowing smooth opening and closing. Replace if cracked, rusted, broken, or causing lid misalignment.

Right hand side

The lid hinge bearing is used for the lid hinges on washers and dryers. When functioning properly, it allows the lid to open and close properly. If this is a problem with the bearing, it could make the lid difficult to move. In some cases, when the lid will not close, it means that the machine will not function correctly. Damaged lid hinge bearings should be replaced as soon as possible.The lid hinge bearings see a lot of work since they are in use whenever the lid of the washer or dryer opens and closes. They could become cracked and broken over time. Replacing the bearings is a relatively simple repair that owners can make on their own.This lid hinge bearing is for use with many models of washers and dryers from Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Admiral, Amana, Crosley, and Magic Chef. This is a genuine OEM replacement part that has been sourced from the manufacturer. The piece is sold individually, so if owners need to replace more than one hinge, they will need to buy multiples.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Washer lid panel that covers the top opening of your washing machine. Replace if your original lid is cracked, broken, warped, or missing its hinge mounts.

Washer won't spin or drain? A broken lid strike prevents the lid switch from detecting when the lid is closed. Easy 10-minute DIY fix with basic tools.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

U-type clip nut slides onto sheet metal panels to create threaded anchor points for screws. Replace if broken, missing, or worn during repairs.

Used from harness to top.

Part# is one rivet.

Sheet metal screw secures panels, brackets, and trim on washers, dryers, and laundry appliances. Replace when stripped, missing, or rusted during repair.

Locator pin for washer assembly. Secures and aligns components during installation. Replace if broken, missing, or worn to ensure proper part positioning.

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Cage nut clips into panel openings to create a threaded anchor point for secure mounting. Replace if broken, stripped, or missing to restore hardware.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
