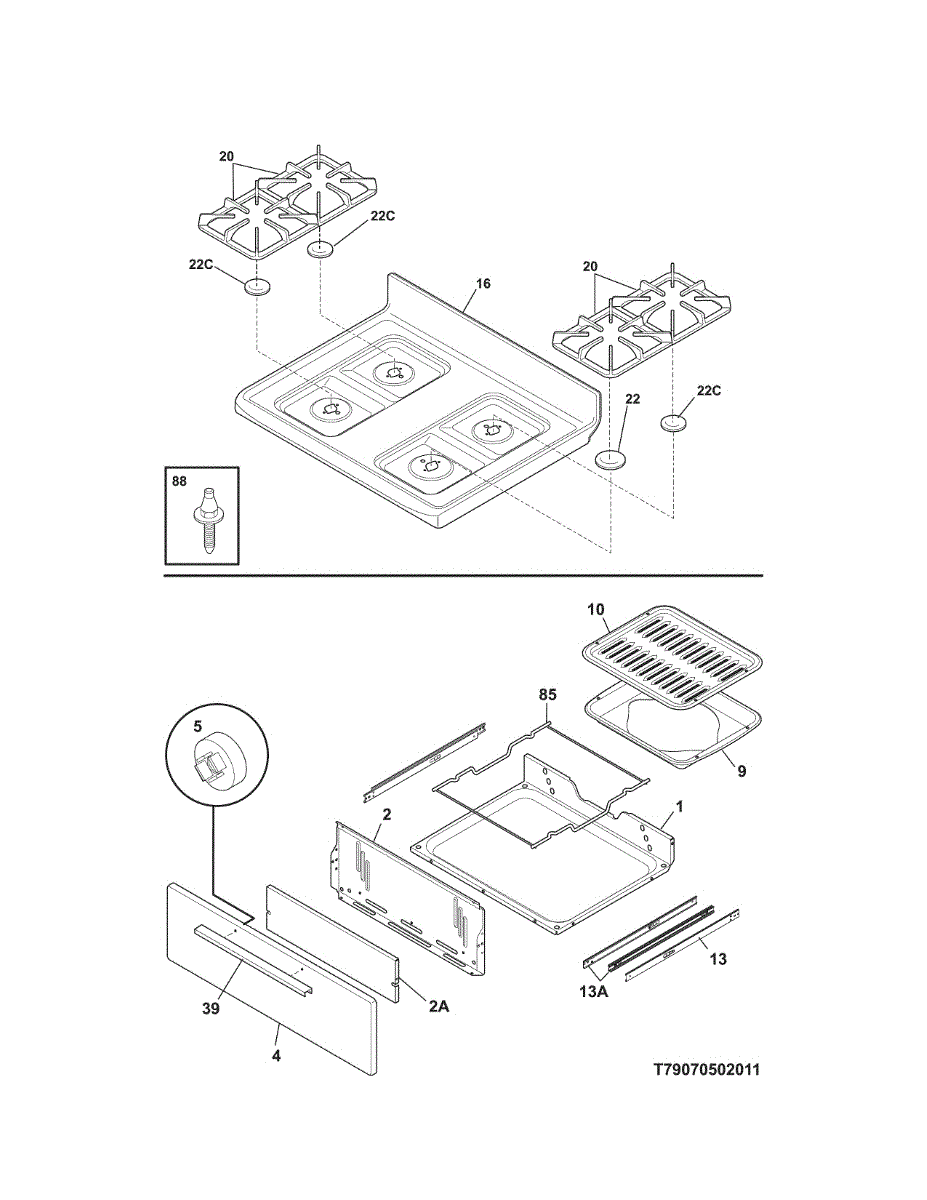

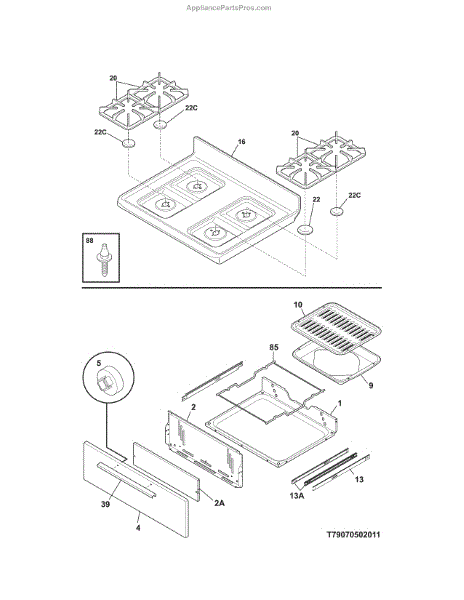

Parts for Kenmore 790.70509010 (79070509010, 790 70509010): Top / Drawer Parts

Replace the low broil liner panel in your gas range oven cavity. This trim panel covers the lower broil area and may need replacement if cracked or damaged.

Control panel for gas ranges. Installs on the front of your range to house controls and display. Replace if cracked, damaged, or worn from daily use.

Push-in nylon nut for gas ranges. Secures panels, components, or trim pieces. Replace if cracked, broken, worn, or missing to properly fasten parts.

This drain pan collects and channels condensation away from the evaporator to prevent water buildup and leaks. It restores proper drainage and helps maintain refrigerator hygiene and consistent operation. What it does:

• Catches defrost and condensation water from the evaporator coil to prevent pooling inside the cabinet
• Directs water toward the drain tube or pump for proper removal
• Helps reduce unwanted odors and potential mold by containing moisture
• Supports the evaporator assembly and aligns with mounting points for a secure fit

• One drain/evaporator drip pan as shown

• Inspect surrounding seals and the drain tube for clogs before reinstalling the pan
• Use basic hand tools; keep electrical power disconnected when accessing internal compartments
• Handle carefully to avoid bending mounting tabs or damaging nearby components
• Replace any damaged fasteners or gaskets removed during service

This insert is a small trim piece designed to restore fit and finish on your appliance where factory trim has worn or been damaged. It improves appearance and helps protect edges from wear. What it does:

• Replaces a damaged or missing trim insert to restore original appearance
• Covers gaps and provides a finished edge on the appliance component
• Helps prevent dirt and moisture from reaching underlying parts
• Supports proper alignment of the surrounding trim or panel

• One insert trim piece as pictured

• High-level replacement; may require removal of surrounding trim or fasteners
• Use appropriate hand tools and keep small parts organized during reassembly
• Disconnect power to the appliance before starting work if removal involves electrical components

Metal cooktop surface panel that supports burners and protects internal components. Replace if cracked, warped, chipped, or showing heat damage or wear.

Single cooktop grate provides stable support for pots and pans over gas burners. Replace when original is cracked, warped, chipped, or missing.

Burner cap sits atop the gas burner base to distribute flame evenly. Replace if cracked, warped, discolored, or missing to restore proper heat distribution.

Replacement burner cap for gas ranges and cooktops. Covers the burner head and protects from spills. Needed when cap is cracked, broken, or missing.

Black handle for range storage drawer. Replaces cracked, broken, or missing drawer handles. Mounts to front of warming or storage drawer for opening.

Replacement door handle for gas ranges. Installs on the front of the oven door for opening and closing. Order if your handle is cracked, broken, or missing.

Guide pin for gas ranges. Secures and aligns oven or burner components. Replace if broken, missing, or worn to restore proper part positioning.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
