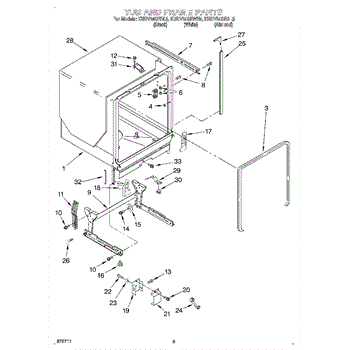

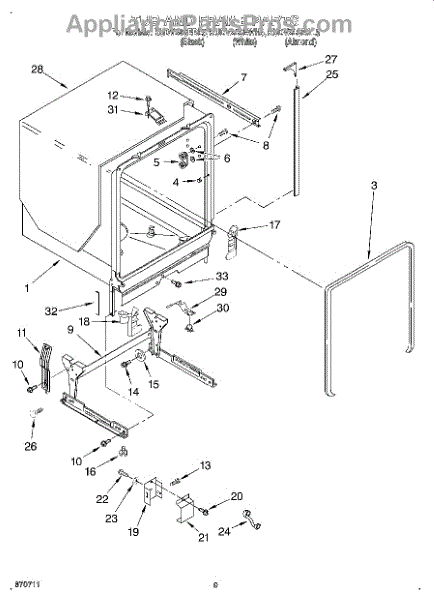

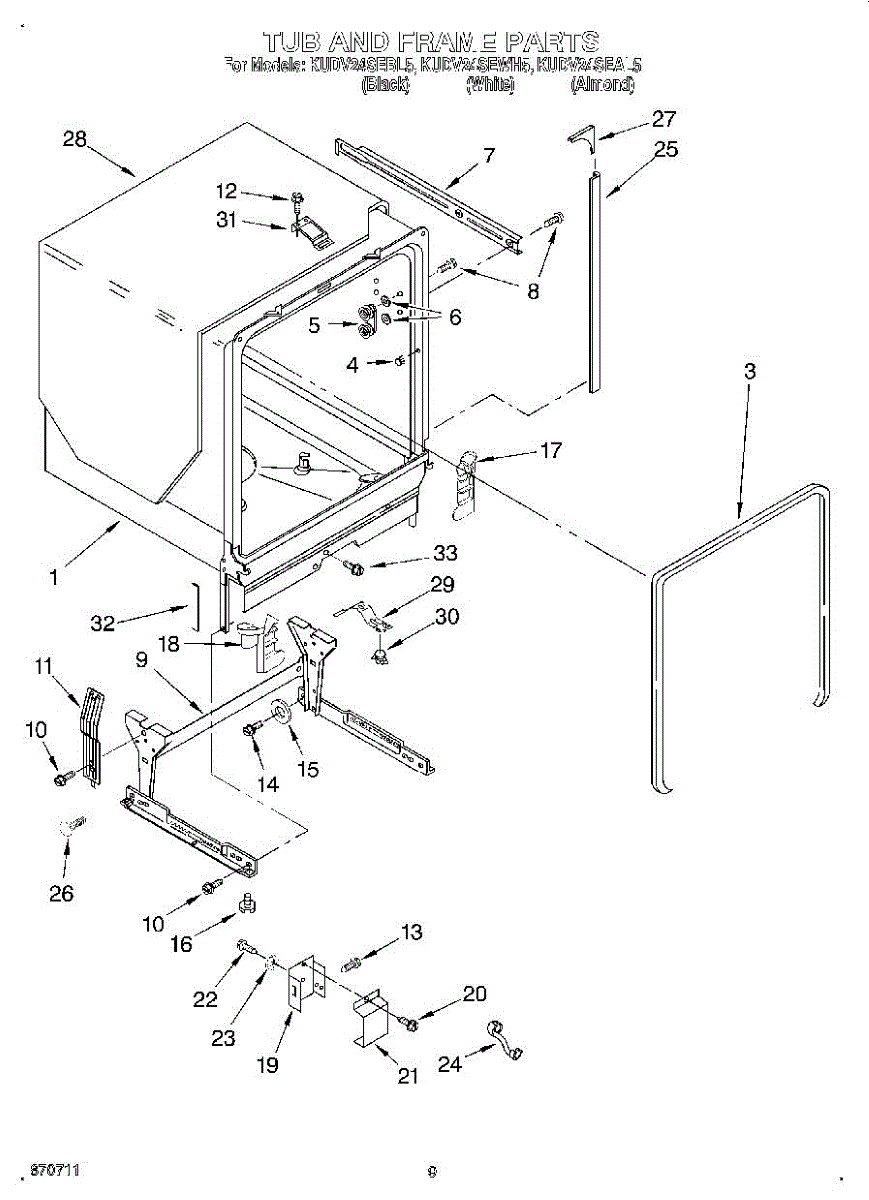

Parts for Kitchenaid KUDV24SEBL5: 08 - Tub And Frame Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Door Gasket is an OEM part for Whirlpool dishwashers. This gasket is essential for maintaining the efficiency and safety of your dishwasher, ensuring that water is contained within the unit to avoid kitchen floods and water damage.

Causes of deterioration can include regular wear and tear from opening and closing the dishwasher door, exposure to harsh detergents and high temperatures, and physical damage from loading and unloading dishes.

Symptoms of a bad Door Gasket include:

• Visible leaks or puddles of water around the dishwasher after use.
• The gasket is cracked, stiff, or has pieces missing.
• The door doesn't close as smoothly or as tightly as it used to.
• Mold or mildew buildup on the gasket due to moisture retention.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This dishwasher tub roller wheel supports and allows smooth movement of the lower rack. Replace if worn, cracked, broken, or causing uneven rolling.

Gasket for upper wheel.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Specs: 10-16 x 1/2 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 10-32 x 15/16 inch.

Replacement wheel leg support for refrigerators and ice makers. Restores stability, leveling, and smooth rolling when the original is cracked, broken, or worn.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Prevents leaks at the bottom of your dishwasher door. Replace if you see water pooling or rotted rubber. Includes main seal and corner pieces.

Prevents leaks at the bottom of your dishwasher door. Replace if you see water pooling or rotted rubber. Includes main seal and corner pieces.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Size: 8-18 bw.

Size: 8-32 x 1/2 inch.

Pronged cup washer for securing internal dishwasher components. Provides reliable retaining force for assembly hardware.

Secures knobs, trim, or linkages to shafts inside your dishwasher. Replace if broken, cracked, or missing to prevent components from loosening.

This sound insulation shield reduces operational noise from your appliance's internal components. It eliminates excessive humming, buzzing, or vibrating sounds that indicate missing or deteriorated sound dampening material.

Mounting bracket that secures the thermostat assembly in your dishwasher. Replace this bracket if it's cracked, broken, or missing to restore stability.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This latch component secures the dishwasher door in the closed position and activates the door switch for operation. Replace when the door won't stay closed, doesn't latch securely, or the dishwasher won't start despite the door being shut.

Screw: 8-16 x 3/8 inch.
