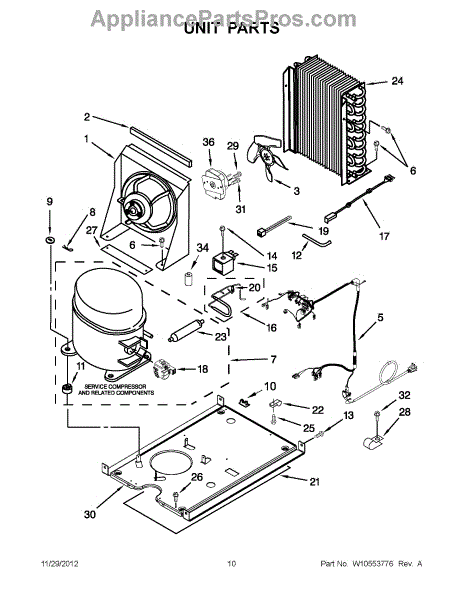

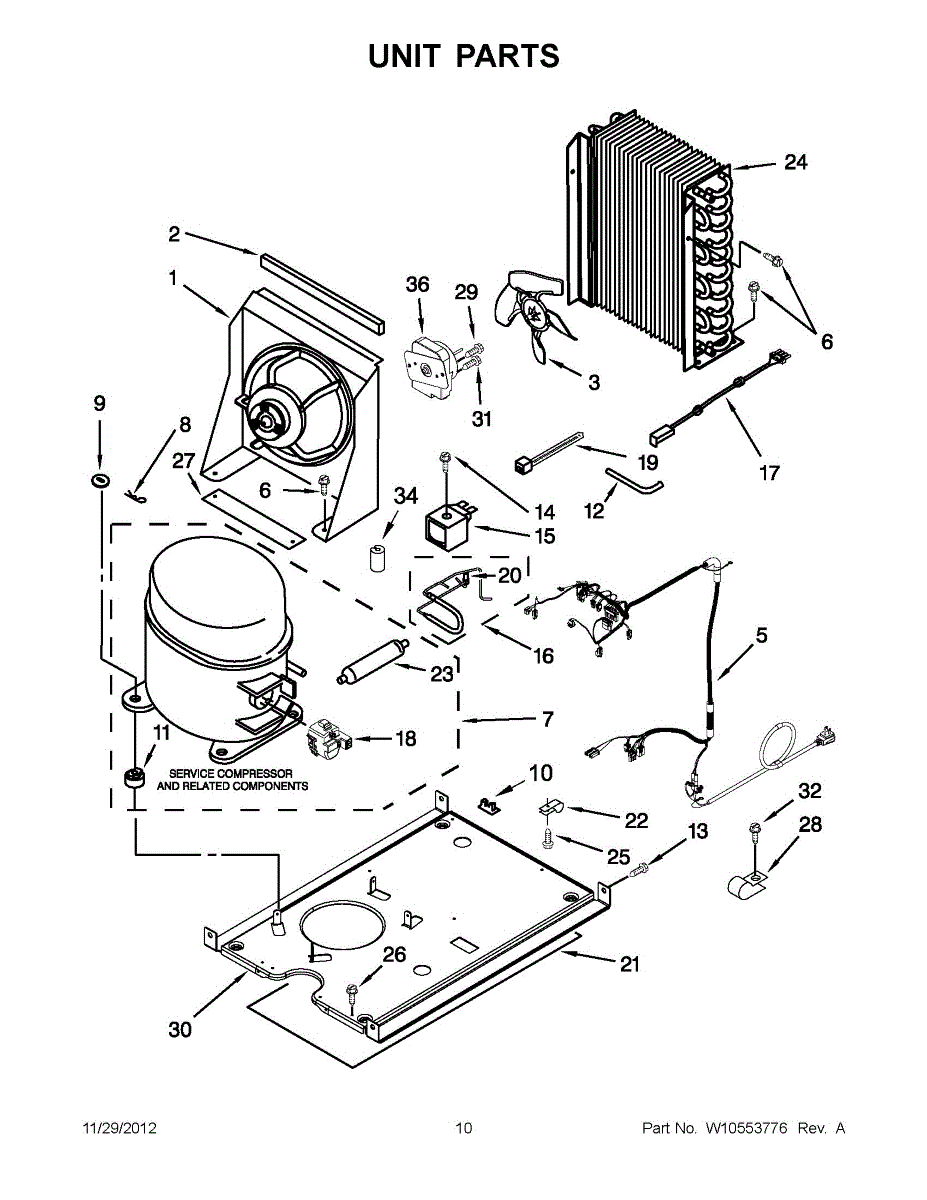

Parts for Kitchenaid KUIS18NNXW1: 05 - Unit Parts

This fan mounting bracket secures the evaporator/condenser fan assembly so the fan stays aligned and runs quietly. It's a direct-fit replacement that restores proper airflow and reduces vibration from a loose or damaged bracket. What it does:

• Holds the refrigerator/freezer fan motor or blade in the correct position to maintain consistent airflow
• Prevents fan wobble and contact with surrounding components that cause noise or damage
• Helps restore cooling performance impacted by a detached or broken fan mount
• Works with the existing fan motor and blade when the bracket is the only damaged part

• One fan mounting bracket

• Basic hand tools required; access may require removing interior panels or the evaporator/condenser cover
• Power off and unplug the appliance before starting any repair to avoid shock or injury
• Keep screws and mounting hardware from the old bracket; replace only if damaged or missing
• If the fan motor or blade shows damage, inspect and replace those components as needed

Foam pad cushions and insulates ice maker components. Replace if compressed, torn, or causing excessive noise. Verify fit with your model number.

Refrigerator running loud or not cooling well? A worn condenser fan blade reduces airflow across the coil. This DIY fix takes 15-30 minutes.

Refrigerator not cooling or making noise? This condenser fan motor kit fixes cooling issues and noisy operation. DIY-friendly with video guide.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Secures and organizes wire harnesses inside your refrigerator. Replace this clip if it's cracked, broken, or missing to properly route electrical wiring.

Size: 8-18 x 5/8 inch.

Ice maker not filling or dispensing ice? A faulty solenoid valve coil prevents proper water flow. This coil restores reliable valve operation in your unit.

Refrigerator not cooling properly? A faulty condenser fan jumper wire disrupts fan operation. This wire assembly restores electrical continuity.

This start relay (EMB) energizes the compressor's start winding so the refrigerator can begin cooling reliably. Replacing a weak relay can resolve hard-start clicking and restore consistent operation when the compressor struggles to start.

• Delivers initial power to the compressor's start winding, then disengages once the motor is up to speed
• Supports reliable compressor starts and reduces repeated start attempts
• Common symptoms: clicking from the compressor area, rising refrigerator/freezer temperatures, compressor starts then stops after a few seconds, or heat damage on the old relay
• Works with EMB-style compressor connections used on select units

• Disconnect power to the appliance before servicing
• Remove the rear access cover; note wire positions; pull the old relay straight off the compressor terminals
• Seat the new relay fully on the compressor pins; reconnect the harness and any run capacitor lead exactly as removed
• Reinstall the cover and restore power; use caution—capacitors may retain a charge

Ice maker not filling or overflowing? A faulty valve body disrupts water flow control. This part regulates water entry into your ice maker system.

Secure water line connections with this refrigerator hose clamp. Replace if leaking, loose, or corroded. Verify fit with your model number before ordering.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Ice maker not producing ice or making thin patchy ice? A faulty condenser affects cooling efficiency. This condenser part restores proper freezing.

Size: 8-18 x 5/8 inch.

Screw: 8-16 x 3/8 inch.

Secures power cord to your ice maker or refrigerator. Replace if cracked, broken, or missing to prevent cord damage and ensure safe operation. Verify fit.

Mounting screw for refrigerator and freezer assembly. Replaces lost, stripped, or damaged screws that secure interior or exterior components.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Refrigerator not cooling or making noise? This condenser fan motor kit fixes cooling issues and noisy operation. DIY-friendly with video guide.
