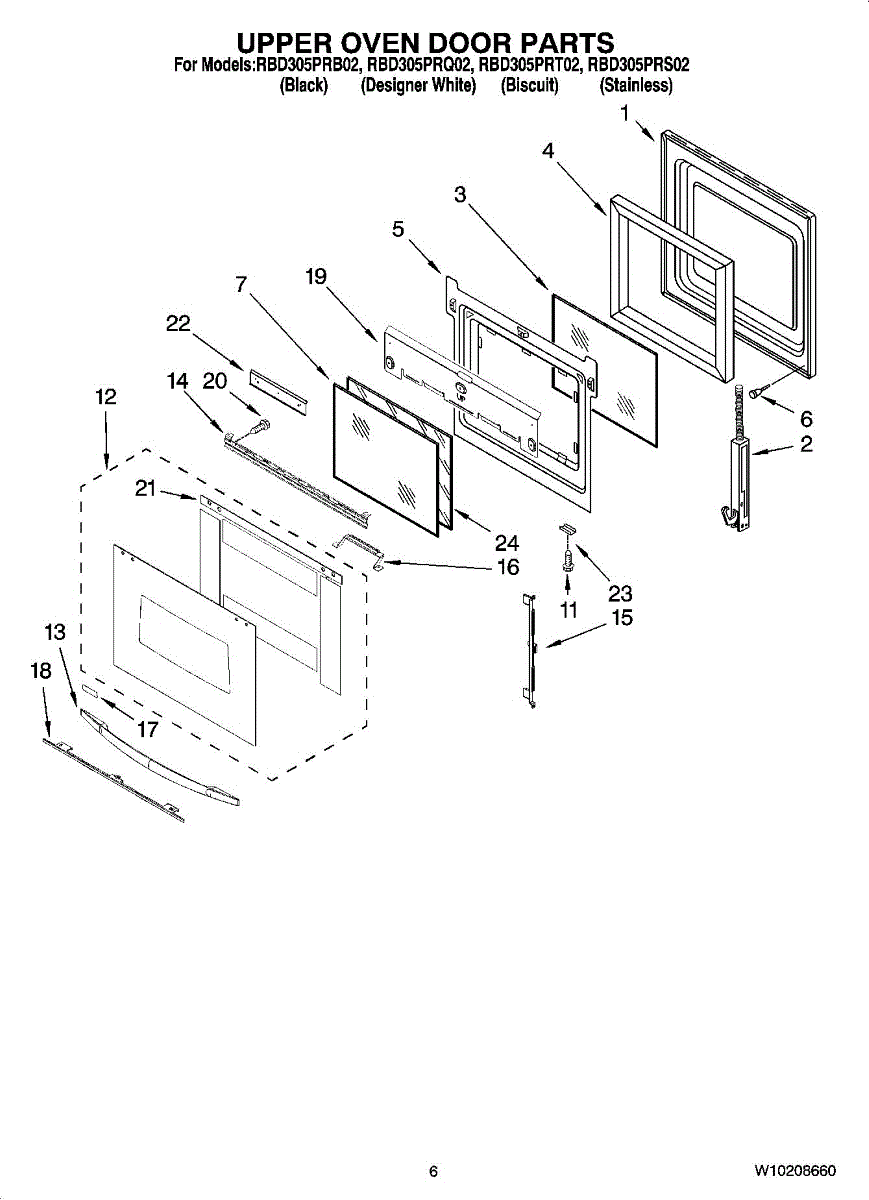

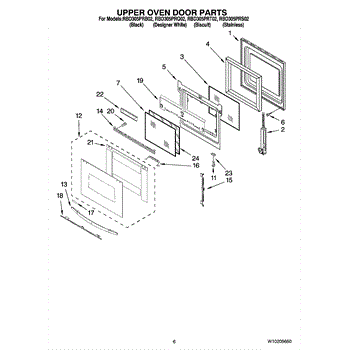

Parts for Whirlpool RBD305PRS02: 04 - Upper Oven Door Parts

Replace your cracked, dented, or worn 30-inch oven door panel. This outer skin restores appearance and supports the handle, glass, and trim assembly.

Replace your oven's left-hand door hinge to restore smooth opening and a proper seal. Fixes doors that won't close, sag, or have weak springs. Confirm fit.

Replacement right-hand oven door hinge that provides the pivot point and spring tension for smooth opening and closing. Install when bent or worn.

Replacement door hinge for wall ovens. Supports the oven door for smooth opening and closing. Replace if bent, broken, or door won't stay horizontal.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fixes heat loss and hot exterior oven door surfaces. Thermal insulation maintains internal temperature. Advanced repair requiring door removal, 15+ min.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

Replaces the inner heat-resistant glass panel in your oven door. Needed when glass is cracked, shattered, or broken during cleaning or use.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bent, rusted, or damaged during installation or service work.

Color: Black

Color: White.

Heat shield for electric wall ovens. Protects internal components from excess heat. Replace if cracked, warped, or missing to maintain proper insulation.
