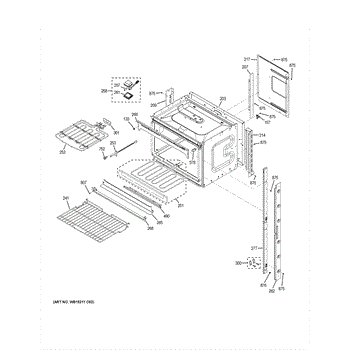

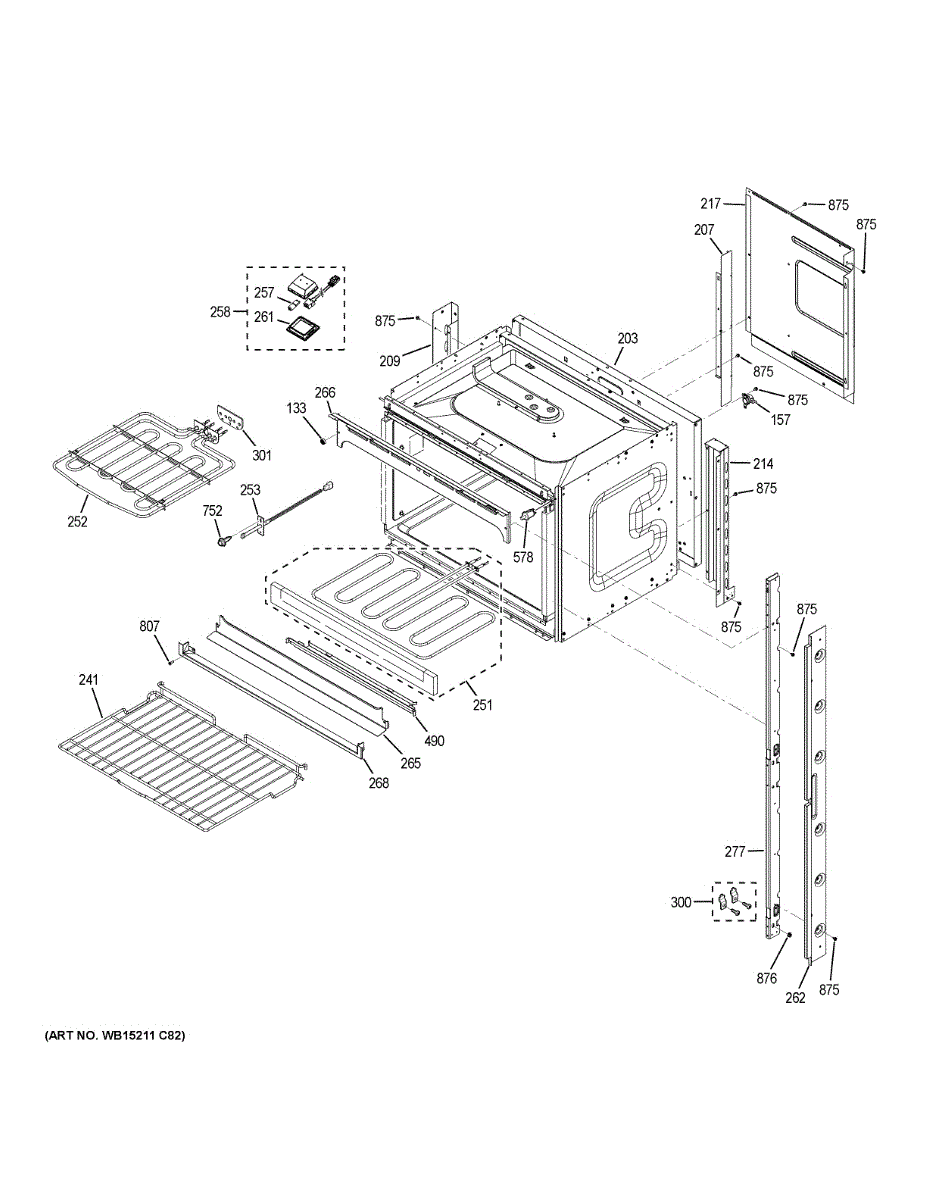

Parts for Ge JK3500DF5WW: Upper Oven Parts

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

Chrome-coated oven rack for wall ovens and electric ranges. Replace worn, damaged, or missing racks to restore cooking capacity and oven functionality.

If your oven won't heat during bake cycles or bakes unevenly, this hidden bake element kit restores proper temperature. Mounts under the oven floor.

This broil element is the replacement heating element for the oven's upper/broil function, restoring direct top-heat for broiling and finishing dishes. Fits common GE ovens that use this OEM-style element. What it does:

• Heats the oven's upper cavity to provide direct broil heat for searing and browning.
• Replaces a broken, burned-out, or non-heating broil element.
• Helps restore even broiling when the oven fails to reach or maintain broil temperatures.
• Compatible with ovens that use a concealed or exposed upper broil element design.

• 1 broil element

• Disconnect power at the breaker or fuse box before starting any repair.
• Remove oven racks and back panel/insulation as needed to access mounting screws and wire terminals.
• Note terminal locations and wiring before disconnecting; take a photo for reference.
• Use proper strain relief on wires and tighten mounting hardware securely; test function after reassembly.

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Halogen bulb illuminates your oven cavity so you can monitor cooking without opening the door. Replace when dim or burnt out. Verify fit with your model.

Halogen light assembly illuminates your oven cavity during cooking. Replace if light won't turn on, flickers, or glass is cracked. Confirm fit by model.

Replace your wall oven light lens cover to restore visibility inside the oven cavity. Essential when cracked, discolored, or damaged by heat exposure. Verify fit with your model number before ordering.

White vertical side trim panel for wall ovens. Covers the side edge of the oven cavity. Replace if cracked, discolored, or missing for a clean finish.

Lower vent trim for wall ovens. Installs along the bottom edge to cover the vent opening. Replace if cracked, discolored, warped, or missing.

White bottom cabinet trim panel for wall ovens and oven/microwave combos. Replaces damaged, cracked, or discolored trim. Installs at base of cabinet.

Secures and supports oven door pivot for proper alignment and smooth opening/closing. Replace if door sags, won't close flush, or hinge feels loose. Confirm fit with your model number.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

Protective cover that conceals the bake element in the oven cavity bottom. Replace if cracked, warped, discolored, or missing for a clean appearance.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Mounting screw secures panels, brackets, and trim in ranges and wall ovens. Replace when stripped, missing, or damaged to restore proper fastening.

White mounting screw for ovens and ranges. Secures interior panels, racks, and trim pieces. Replace if screw is stripped, missing, or broken.

Black. 8-18 AB HXW 3/8
