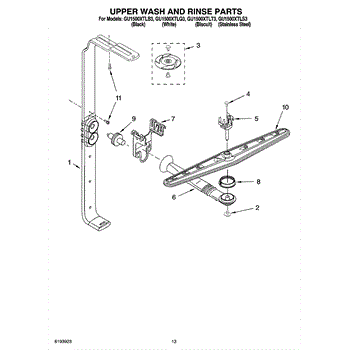

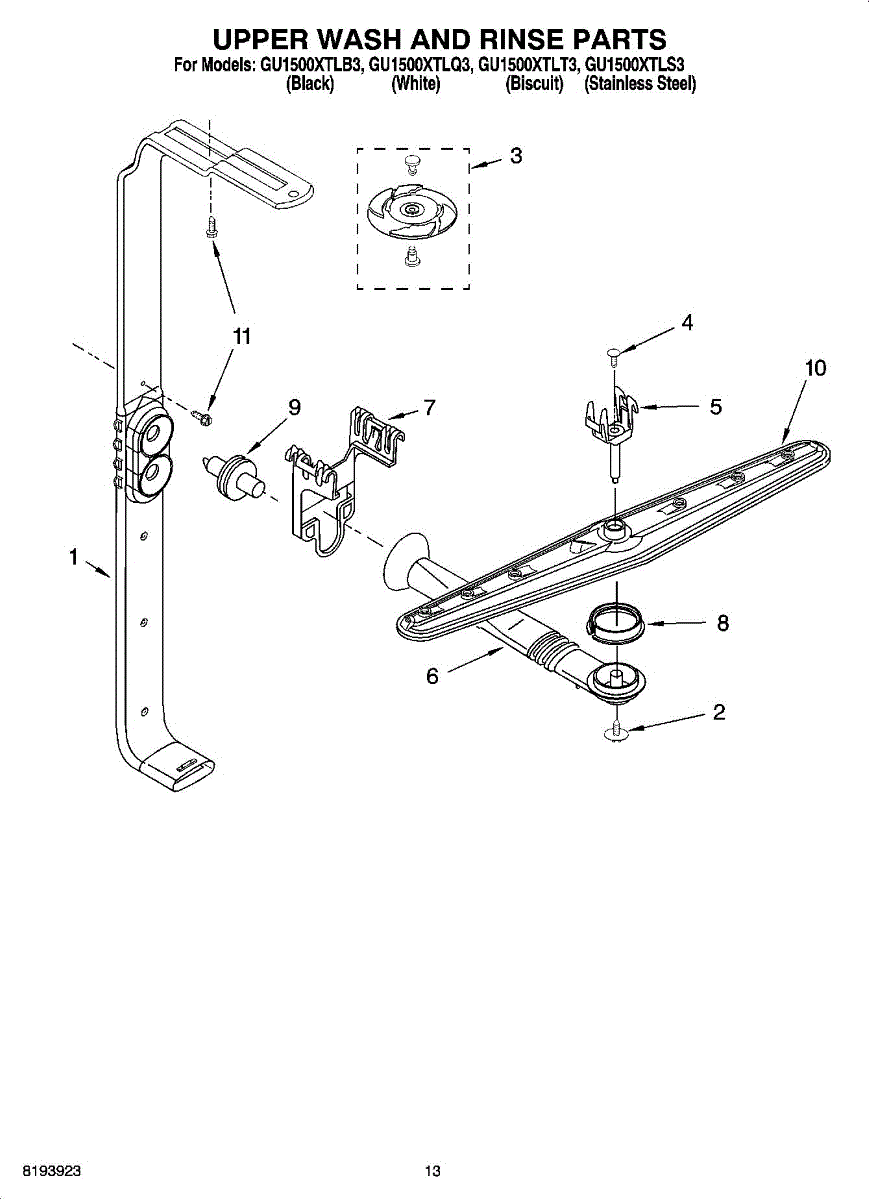

Parts for Whirlpool GU1500XTLT3: 10 - Upper Wash And Rinse Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replaces cracked, mineral-clogged, or punctured feed tube that routes water from lower manifold to upper spray arm. Includes rubber grommets and fittings.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Rotating spray component that snaps into the upper rack area. Replace if the spinner fell off, the retainer pin broke, or the connection is worn and won't stay in place.

Decorative cap that conceals exposed screw heads on dishwasher panels, console, or cabinet. Replace missing, cracked, or damaged covers for a clean finish.

Secures the upper spray arm assembly in the dishwasher tub. Replace if cracked, broken, or worn causing the spray arm to droop or become misaligned.

This adjustable manifold is a direct-fit replacement that secures and positions the appliance's manifold assembly so related components line up and function correctly. It restores proper alignment and reliable operation when the original is bent or worn. What it does:

• Provides a mounting surface and adjustable position for the manifold assembly and attached components
• Helps maintain correct alignment so burners/valves operate smoothly
• Restores fit when the original manifold is damaged, bent, or loose
• Resolves symptoms such as uneven burner operation, ignition difficulty, or mechanical misalignment

• Turn off power and shut off gas supply before starting work
• Handle and align carefully to avoid bending; secure with the OEM fasteners
• Check seals and connections after installation; test operation per manufacturer instructions

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Creates a watertight seal between the spray arm and water supply tube. Replace if you notice leaking or poor spray performance during wash cycles.

The water manifold probe monitors water flow in your dishwasher's spray system. Replace if bent, melted, cracked, or broken to restore proper water distribution.

Middle spray arm for dishwashers. Replaces cracked, broken, or leaking spray arms that prevent proper water distribution during wash cycles. Mounts to manifold.

8-16 thread screw secures panels, brackets, and trim inside refrigerators, dishwashers, and ice makers. Replace if missing, stripped, or damaged.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
