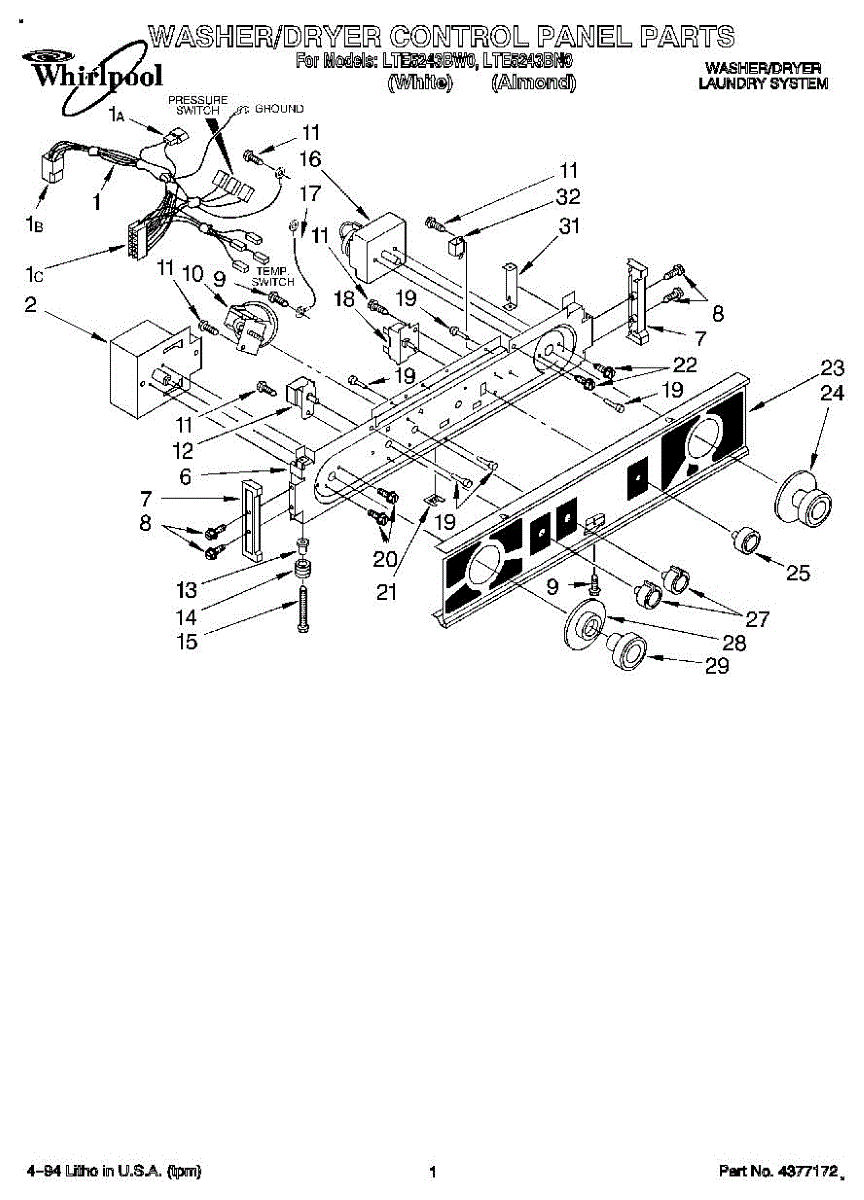

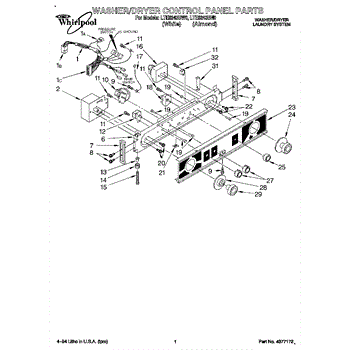

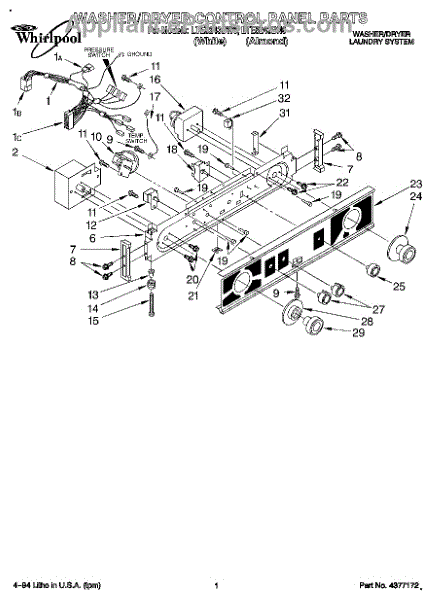

Parts for Whirlpool LTE5243BW0: 01 - Washer / Dryer Control Panel Parts

Wire connector block for washers. Transfers electrical connections between wiring harnesses. Replace if connector housing is cracked or melted.

Fix a washer that won't advance through cycles or gets stuck mid-cycle. This mechanical timer restores proper wash sequencing. DIY-friendly repair.

Size: 8-18 x 3/4 inch.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

Washer won't fill or overfills? Water level pressure switch senses tub water and controls fill cycles. Restores accurate fill levels and agitation.

10 - 16 x 1/2

Replacement shaft bushing sleeve for washer dryer combo drum assemblies. Restores smooth rotation when the original is worn, cracked, or missing.

Fix a loose or non-functioning console lock with this replacement spring. Restores proper tension to the control lock mechanism. Simple repair for DIYers.

If your washer dryer combo won't advance through cycles or select settings properly, this rotary timer controls cycle sequencing and restores timing.

Rubber bumper that cushions and supports the dryer drum. Replace if cracked, worn, or missing to prevent drum damage and reduce noise during operation.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

Secures the control console to the cabinet, preventing rattles and loose movement. Replace when the panel sags or won't stay in place. Confirm fit.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Restore smooth, accurate cycle selection with this replacement timer knob for your dryer. When the original knob is cracked, stripped, or missing, this part lets you reliably set the timer and choose drying programs again. What it does:

• Attaches to the timer shaft so you can set drying cycles and time
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like the knob spinning freely or not turning the timer
• Provides a clean, factory look in white

• 1 white timer knob

• Disconnect power to the dryer before servicing
• Pull the old knob straight off the timer shaft; use steady, even pressure if tight
• Align the new knob with the keyed shaft and press firmly until fully seated
• The pointer aligns with the control panel cycle markings before use

Restore smooth, accurate cycle selection with this replacement timer knob for your dryer. When the original knob is cracked, stripped, or missing, this part lets you reliably set the timer and choose drying programs again. What it does:

• Attaches to the timer shaft so you can set drying cycles and time
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like the knob spinning freely or not turning the timer
• Provides a clean, factory look in white

• 1 white timer knob

• Disconnect power to the dryer before servicing
• Pull the old knob straight off the timer shaft; use steady, even pressure if tight
• Align the new knob with the keyed shaft and press firmly until fully seated
• The pointer aligns with the control panel cycle markings before use

Color: White.

Color: White.

Almond

White

Replacement timer knob for washers. Installs on the control panel to operate the timer dial. Order if your original knob is cracked, broken, or missing.

Replacement timer knob for washers. Installs on the control panel to operate the timer dial. Order if your original knob is cracked, broken, or missing.

Control panel won't stay closed or pops open during cycles? This console lock secures the control console and prevents accidental setting changes.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling
