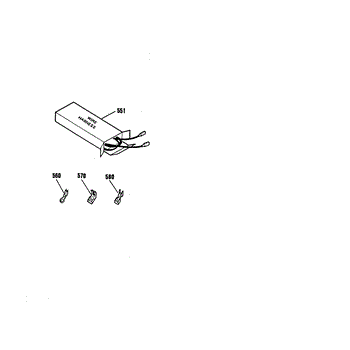

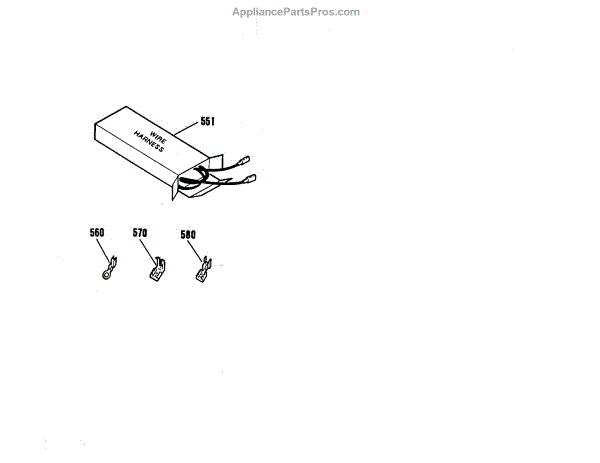

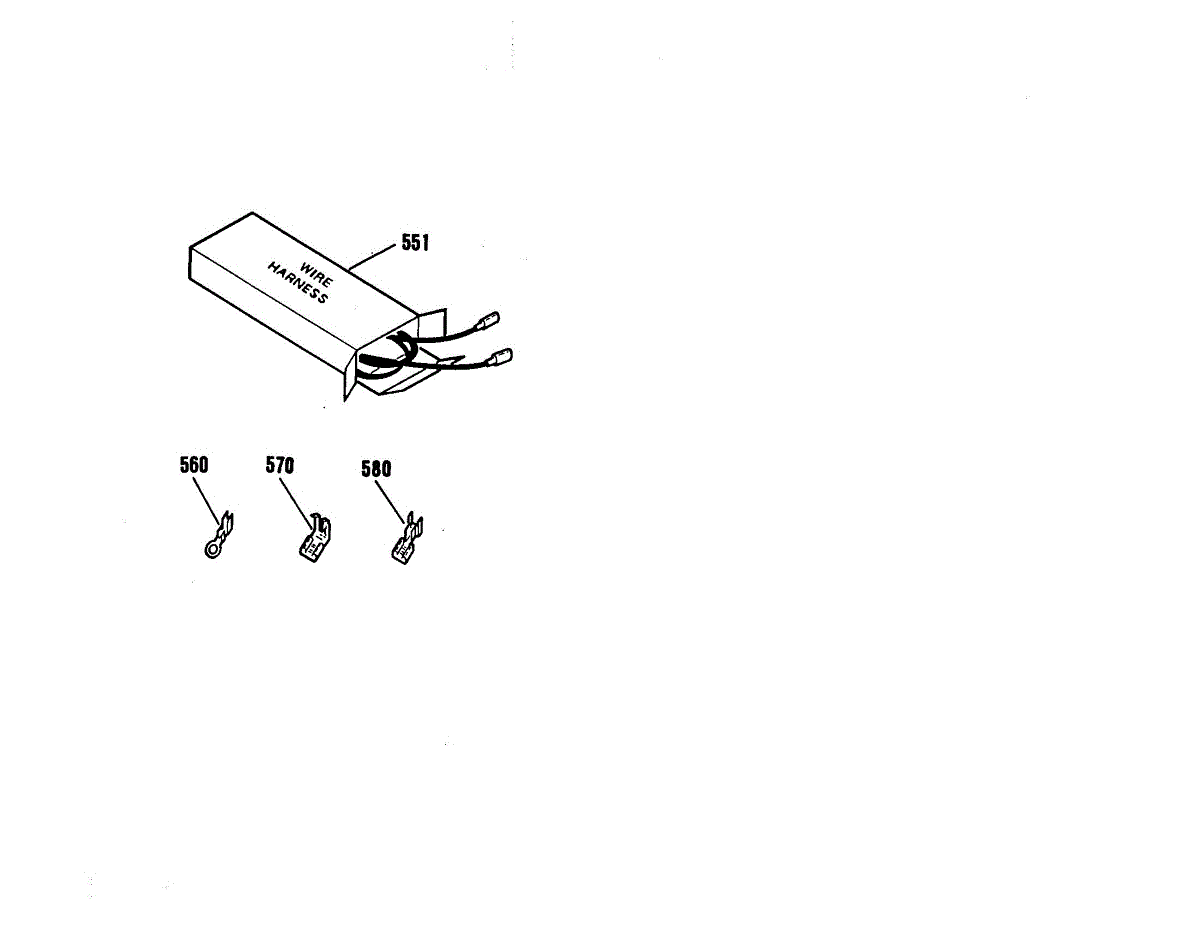

Parts for Kenmore 911.9352190 (9119352190, 911 9352190): Wire Harnesses And Components Parts

This wire harness connects the appliance's door lock switch to the main control, restoring the electrical connection needed for the lock/switch to communicate with the control board. Replaces a damaged or frayed lock-switch lead for reliable operation. What it does

• Provides the electrical path between the door lock/latch switch and the control board.
• Restores proper signaling when a worn or broken harness causes lock faults or prevents cycle start.
• Helps stop intermittent door-lock errors caused by corroded or broken wires or terminals.
• Used when the door will not lock, the unit won't start, or the control reports a lock/switch fault.

• One lock switch wire harness.

• Disconnect power to the appliance before starting any repairs.
• Verify connectors match and seat fully; replace any damaged terminals or housings.
• Handle the lock assembly and connectors gently to avoid damaging the door latch or harness.

This is the official user manual that explains basic operation, maintenance, and safety information so you can use your appliance correctly and troubleshoot common issues. Clear, step-by-step guidance helps extend product life and avoid misuse. What it does:

• Describes controls, features, and normal operation
• Lists routine maintenance and cleaning recommendations
• Provides basic troubleshooting steps for common symptoms (won't start, unusual noises, error indicators)
• Summarizes safety warnings and proper handling to prevent accidents

• No installation required; keep manual in a dry, accessible location
• Read safety and disconnect instructions before attempting any repairs
• Replace lost manuals with the correct version for your model to ensure accurate guidance
