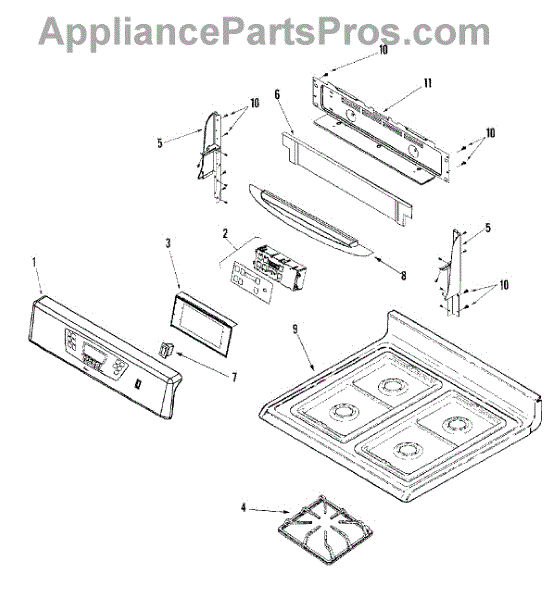

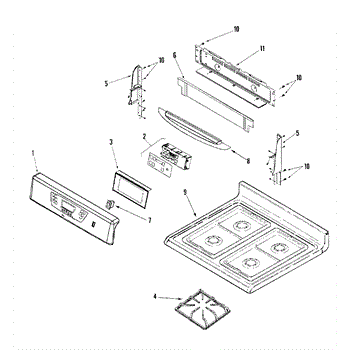

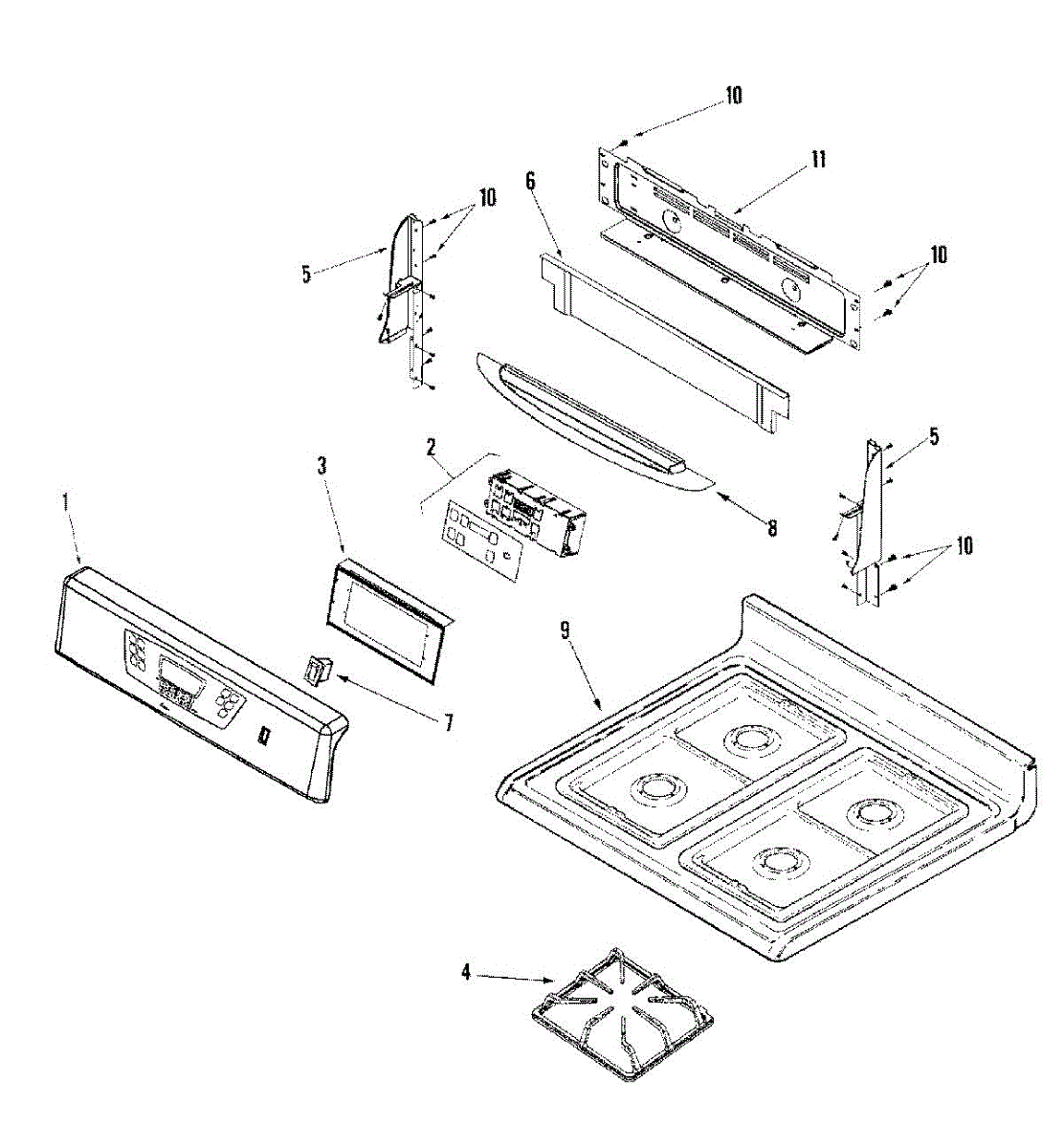

Parts for Admiral ALR5715QDW: 03 - Control Panel / Top Assembly Parts

Secures internal components in your range to restore proper alignment. Replace this bracket if cracked, broken, or worn to prevent assemblies from shifting.

Color: Gray.

Rubber foot that attaches to the bottom of range cooktop grates. Provides stability and prevents scratching. Replace if cracked, broken, or missing.

High-temperature adhesive secures gaskets, seals, and feet in hot zones. Replace when parts loosen or seals fail. Confirm fit with your model number.

White. Right hand side

White. Left hand side

Color: White

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Used on the backgaurd

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Snap-in spacer for range installation. Provides proper spacing and alignment between components. Replace if cracked, broken, or missing to restore fit.
