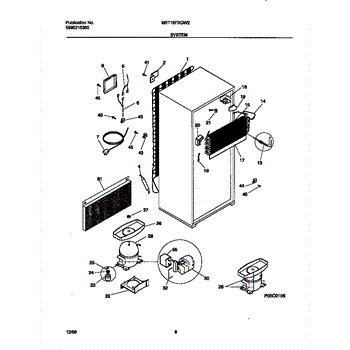

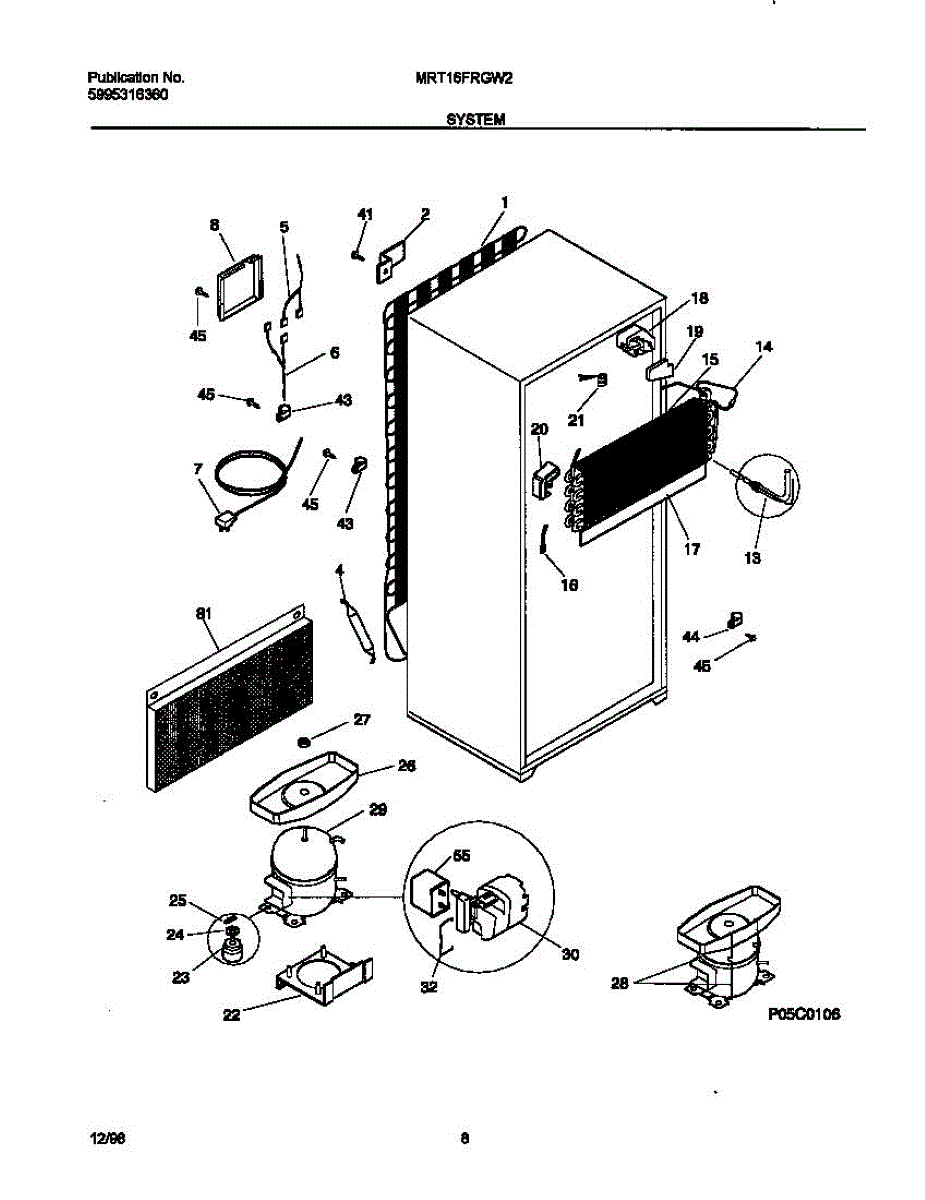

Parts for Frigidaire MRT16FRGW2: 05 - System Parts

Includes service line.

Wiring harness for refrigerators. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections are loose.

Refrigerator not cooling or freezing properly? The evaporator coil absorbs heat to keep your fridge cold. This repair requires moderate skills.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

This compressor mounting plate secures the compressor to the refrigerator chassis, helping maintain proper alignment and reduce vibration for quieter operation. Durable stamped metal designed to fit the factory mounting points. What it does:

• Secures the compressor assembly to the appliance frame to prevent movement
• Dampens and distributes compressor vibration to reduce noise
• Maintains compressor alignment for reliable operation
• Helps keep mounting hardware and rubber isolators in correct position

• Disconnect power to the appliance before service to avoid electrical shock
• Basic hand tools required; support the compressor when removing or installing mounting hardware
• Follow the OEM service manual for torque specs and detailed installation steps

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

A replacement compressor kit designed to restore the refrigeration system's ability to cool by replacing failed compressor components. Use this kit when the compressor assembly needs service or replacement. What it does:

• Replaces failed compressor components to help restore normal cooling performance
• Stops intermittent or complete loss of cooling often caused by compressor failure
• Helps address loud humming, grinding, or continuous running tied to compressor problems
• Supports proper refrigerant flow when installed and serviced

• Disconnect power and unplug the appliance before beginning any repairs
• Compressor and sealed-system service (evacuation, vacuum, refrigerant charging) must be performed
• Use proper handling and tools for refrigerant-containing components to avoid leaks and injury

This compressor start device kit helps your refrigerator or freezer's compressor start reliably each cooling cycle. Replacing a weak or failed start device can restore cooling performance and stop repetitive clicking or brief humming when the compressor tries to start.

• Powers the compressor's start winding to initiate start-up, then disengages
• Supports consistent compressor starts to maintain proper temperatures
• Common symptoms of failure: unit warm, compressor not running, rapid clicking from rear, humming then shuts off
• May accompany signs like heat damage or a burnt odor at the old device

• Unplug the appliance before servicing; allow components to cool
• Located on the side of the compressor behind the rear access panel
• Photograph wiring and compressor pin layout; transfer wires one at a time and seat the device fully on the pins
• If your unit uses a separate run capacitor, reconnect it exactly as originally wired

Used to hold the original electrical components to the side of the compressor.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Sound insulation cover for refrigerators. Installs over insulation to reduce noise. Replace if cracked, broken, or missing for proper sound dampening.

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Sound dampening foam pad for refrigerators and freezers. Installs on evaporator or compressor area to reduce vibration noise. Replace if worn or missing.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components
