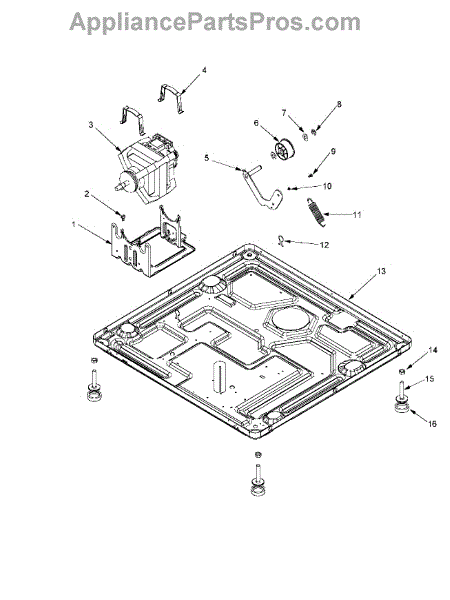

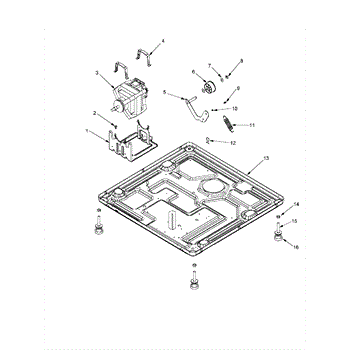

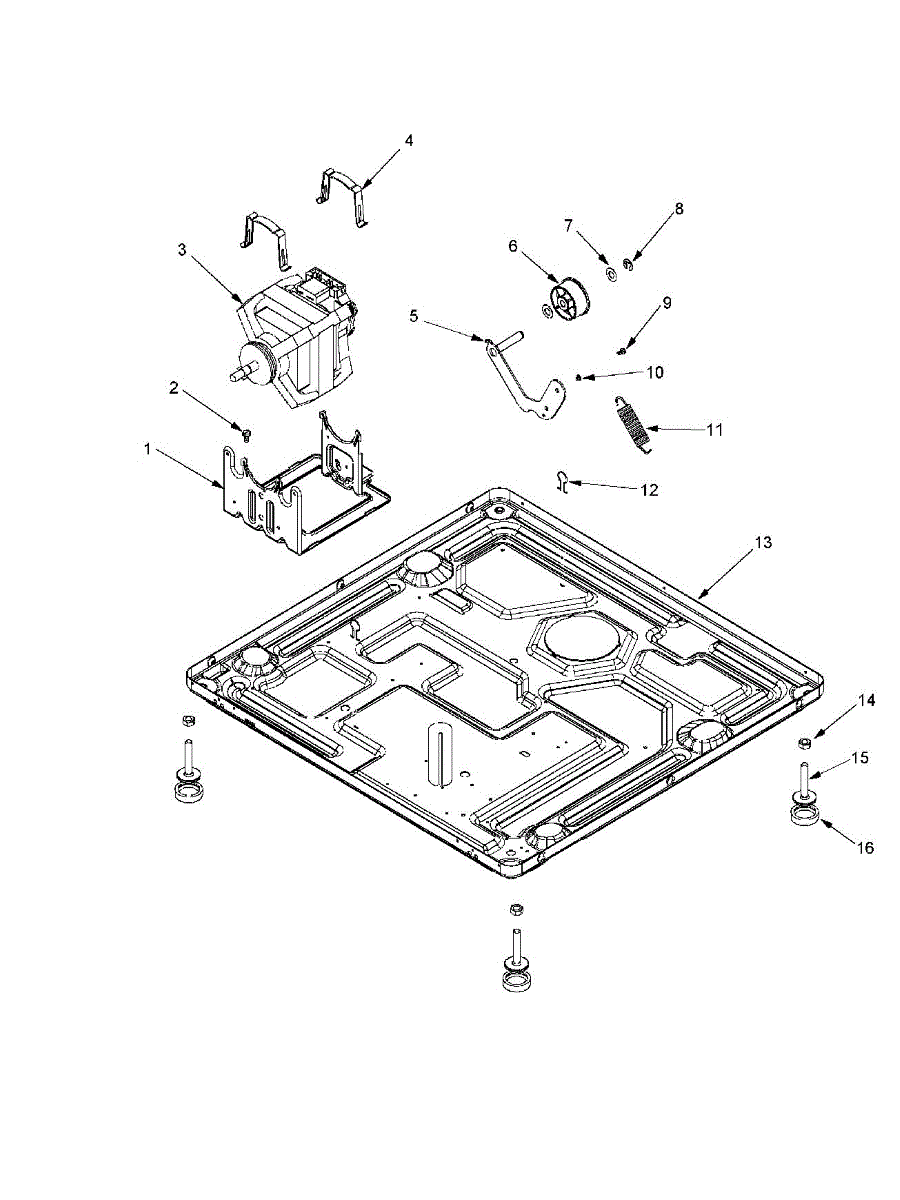

Parts for Maytag MLE23PRFZW: 09 - Base Parts

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

This genuine replacement part is a drive motor for dryers. The drive motor is the main engine that allows the dryer drum to rotate. If the drum is no longer spinning properly, the drive motor might need to be replaced. Luckily this is a relatively simple process.To replace the drive motor, begin by unplugging the dryer. Once it is powered off, uninstall the front panel of the dryer by removing the screws that attach it. After that, lift the top panel above the drum so that it is vertical and no longer covering the drum. Then disconnect the wires from the moisture sensors with a screwdriver by pressing down on the locking tab. Once the wires have been removed, lift the drum out from the dryer to gain access to the drive motor. Using a socket wrench, remove the blower wheel from the motor assembly. Then remove the old drive motor by unthreading the mounting screws that attach it. Install the new drive motor and reassemble the dryer. This OEM replacement part is sold individually and is compatible with Whirlpools, Maytag, Kitchenaid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand dryers.

This motor clip secures a motor to its mounting bracket or housing, keeping it aligned and stable during operation. Replacing a bent, broken, or missing clip helps stop rattling and prevents the motor from shifting. What it does:

• Retains the motor on its mounting bracket or frame
• Helps maintain alignment to reduce vibration and noise
• Prevents movement that can cause rubbing or wire strain
• Direct replacement when the original clip is damaged or missing

• One motor clip

• Disconnect power before servicing; allow all moving parts to stop
• Access the motor area, note the clip's orientation, and remove the damaged clip
• Seat the motor fully, then install the new clip to secure it to the bracket
• Inspect related mounts/grommets and wiring for wear; verify clearances before restoring power

Pivoting bracket arm that suspends the idler pulley and routes the drive belt in your dryer. Replace if cracked, bent, or worn to restore proper operation.

Replaces the belt tension pulley that maintains proper belt alignment in your dryer. Needed when pulley is squealing, cracked, or worn out.

Fiber washer that maintains idler pulley alignment and belt tension in your dryer. Replace if squeaking, grinding, or pulley wobbles occur.

The Idler Shaft Retaining Ring is an OEM replacement part for Whirlpool dryers. Also called an "E" ring, it is a sealing gasket positioned between the front and rear housing omponents. Maintaining an airtight seal prevents gas leakage and promotes efficient drying performance.

Causes of a bad retaining ring commonly involve compression loss of the rubber gasket material over many years of heating cycles. Exposure to petroleum-based cleaners may prematurely deteriorate the seal as well.

Symptoms of a failed 'E' ring include:

• Gas leaks emitting foul odors around seams or vents
• Reduced heat conductivity hampering dryer functioning
• Moisture accumulation shortens fabric lifespan
•  Drafts compromising indoor air quality and energy bills

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Factory fastener screw secures panels, brackets, and trim inside appliances. Replace missing, stripped, or damaged screws to restore tight fit.

Maintains tension on the idler arm to keep your dryer belt tight. Replace if the spring is stretched, broken, or missing to restore proper belt operation.

Dryer won't power on or controls aren't responding? This control transformer converts line voltage to power timers, relays, and sensors. Moderate DIY repair.

Replacement 3/8-16 nut that secures bolts and threaded shafts in appliance assemblies. Needed when original nut is stripped, lost, or corroded.

Adjustable leveling leg with foot pad for dryers, washers, and pedestals. Replace cracked, broken, or missing legs to stabilize your appliance.

The Leveling Leg Pad is an OEM replacement part for Whirlpool washing machines. This small but essential component fits beneath the leveling legs, providing stability and preventing the appliance from moving or vibrating excessively during operation. It also protects flooring surfaces from potential scratches or damage.

Symptoms of a bad Leveling Leg Pad include:

• Increased vibration or noise during the wash or spin cycle
• The washing machine wobbling or becoming unsteady
• Visible wear, cracks, or damage to the pad

Causes of a failing Leveling Leg Pad can include wear and tear from prolonged use, exposure to moisture, or excessive weight causing deformation. Replacing worn pads helps maintain the appliance's balance and efficiency.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the leveling leg order 22003428.
