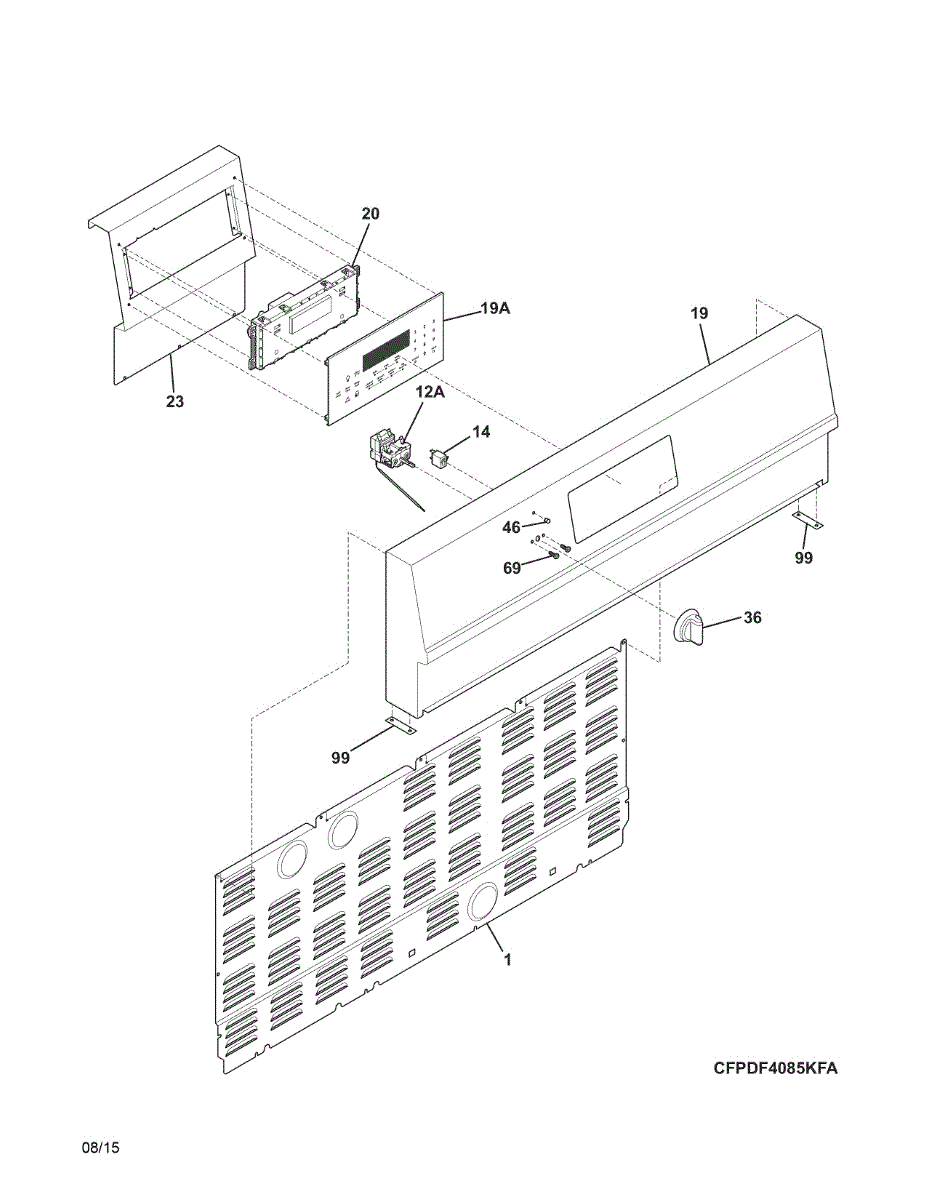

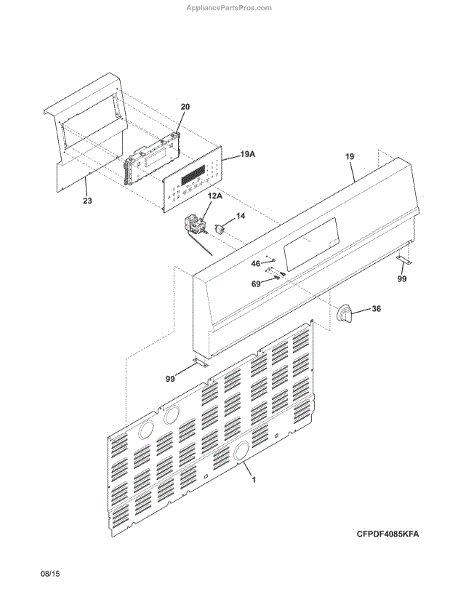

Parts for Kenmore 790.76503510 (79076503510, 790 76503510): Backguard Parts

This oven thermostat senses and regulates oven temperature so food cooks evenly and the range reaches set temperatures. It replaces a failed temperature control to restore accurate heating and cycle behavior. What it does:

• Closes and opens the control circuit to maintain the oven at the selected temperature
• Can correct symptoms such as oven not reaching set temperature, overheating, or excessive cycling
• Works with the oven's control system and heating elements to stabilize bake and broil operations
• Mechanical design — avoid bending or damaging the sensing element/capillary

• One oven thermostat

• Disconnect power to the appliance before starting any service
• Handle the thermostat and sensing element carefully; do not kink or sharply bend the capillary
• Verify proper thermostat mounting and oven cavity seals for accurate temperature control

If your range won't heat, the display is blank, or temperature is incorrect, this control board regulates baking, broiling, and timer functions. Moderate DIY.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Wiring harness assembly for ranges. Routes power and signals between controls and components. Replace if wires are damaged, frayed, or connections worn.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
