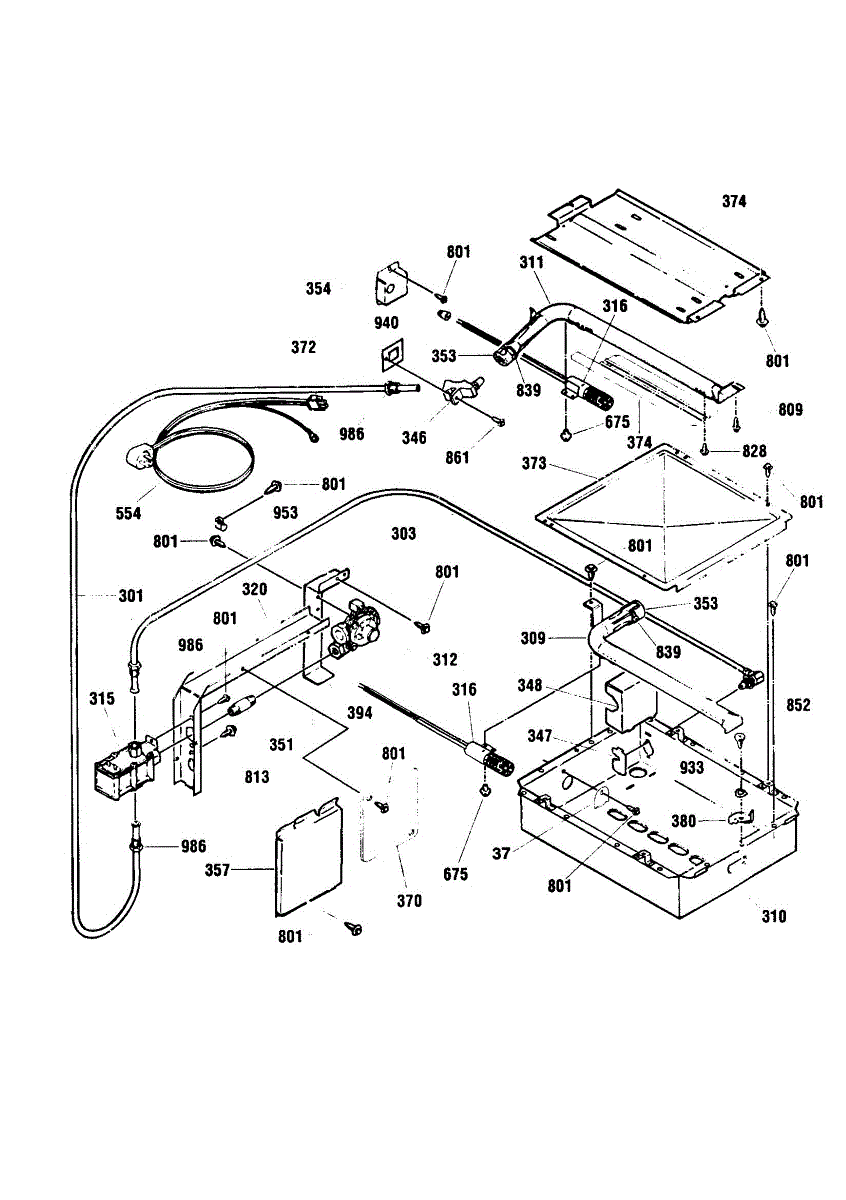

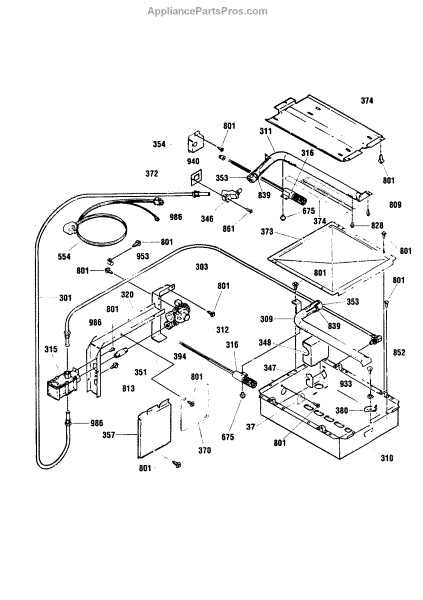

Parts for Kenmore 911.30469893 (91130469893, 911 30469893): Burner Section Parts

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Tube assembly for ovens and ranges. Connects gas or water lines internally. Replace if cracked, corroded, leaking, or damaged during appliance repair.

Delivers regulated gas from the supply line to the oven burner. Replace if the tube is cracked, orifice is clogged, or assembly is damaged or missing.

Gas oven bake burner tube that directs flame for even baking heat. Replace if cracked, corroded, or producing uneven flames in your gas range oven.

Bottom burner box housing for gas ranges. Protects burner components and maintains proper airflow. Replace if cracked, rusted, or damaged to restore appearance.

Broil element for ovens and ranges. Installs at top of oven cavity. Replace if element is cracked, broken, warped, or no longer heats properly.

Controls gas pressure for safe burner operation. Mounts at gas supply line. Replace if flame height is too low, inconsistent, or after fuel conversion.

Oven won't heat but igniter glows? This safety valve controls gas flow to the burner. Common fix for ranges with no heat. Moderate DIY repair.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

This valve wire cover is a small protective shroud that snaps over the water/valve wiring to keep wires organized and shielded from moisture and contact with nearby parts. It helps reduce risk of wiring abrasion and keeps connections tidy. What it does:

• Covers and protects valve wiring from contact with moving parts or sharp edges
• Keeps wires routed and secured to prevent snagging or pinching
• Helps reduce exposure to moisture and debris around the valve area
• Visible sign to replace: cracked, broken, or missing cover leaving wires exposed

• One valve wire cover

• Disconnect power to the appliance before servicing to avoid shock
• Remove any panels as needed to access the valve assembly; use basic hand tools
• Snap the cover into place over the valve wiring; ensure it seats fully and wires are not pinched
• Replace if the cover is cracked, warped, or will not secure wiring properly

Replaces a cracked, rusted, or missing bottom baffle in your oven. Installs at the base of the oven cavity to direct airflow and protect components.

Broiler burner baffle that distributes flame evenly across the broiler element. Replace if cracked, warped, or damaged to restore proper heat distribution.

Fix an oven door that won't stay closed or latch properly with this gas range door latch. Simple repair for restoring secure door operation.

Range power cord connects your range to the wall outlet. Replace if cord is frayed, damaged, or missing when installing a new range or moving to a new home.

Replace missing or damaged 10-32 x 5/32 inch machine screws in your oven. Secures panels, brackets, and internal components to eliminate rattles.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

Package of 12 mounting nuts for securing panels, brackets, and components on gas ranges, ovens, and washers. Replace missing, stripped, or worn nuts.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.
