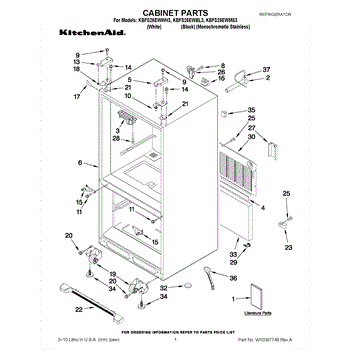

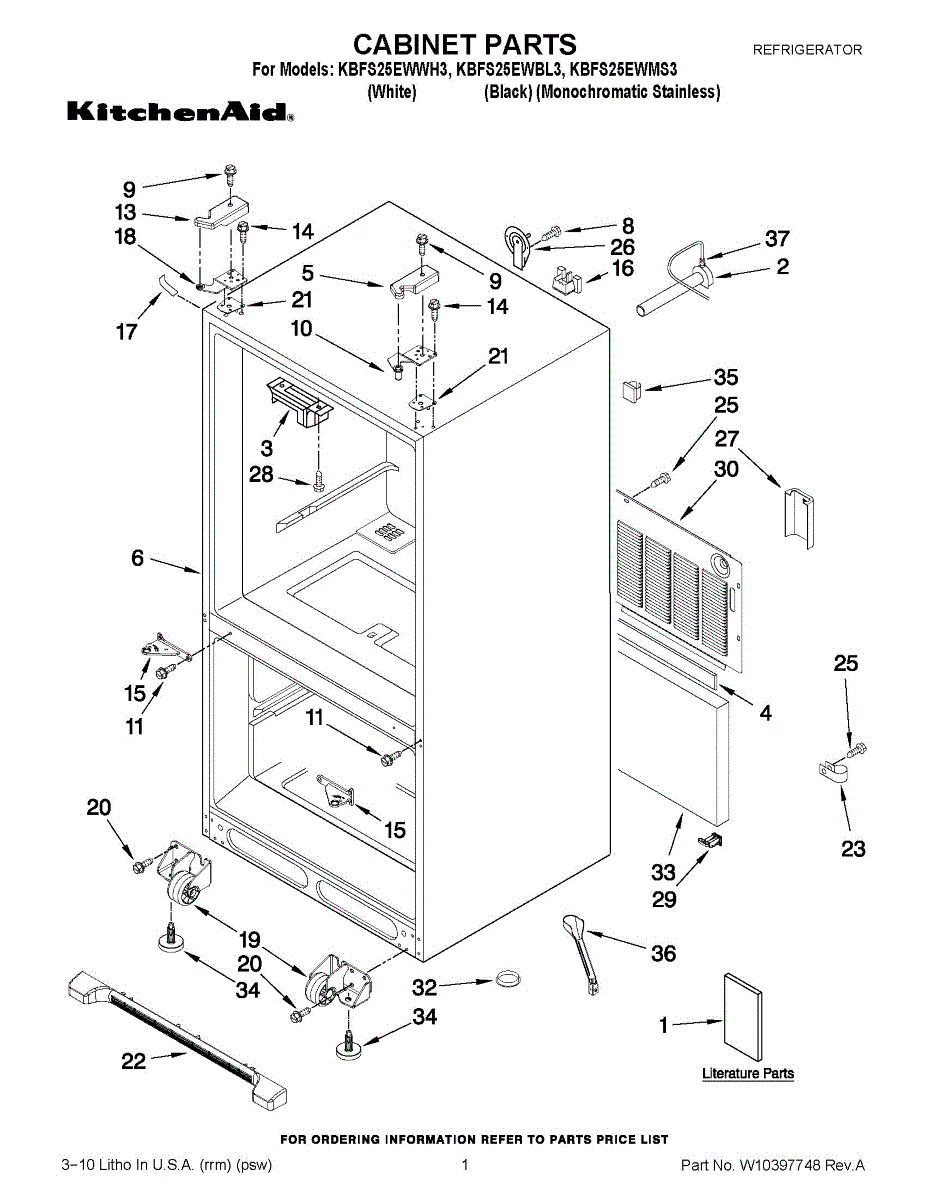

Parts for Kitchenaid KBFS25EWBL3: 01 - Cabinet Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Replacement icemaker fill tube that directs water from the valve to the ice tray. Replace if cracked, leaking, or causing water to freeze in the freezer.

Supports the refrigerator door hinge for smooth opening and closing. Replace this pivot block if it's cracked, worn down, or broken to restore proper alignment.

Plastic cover that conceals the top door hinge on your refrigerator. Replaces cracked, broken, or missing hinge covers for a clean finished look.

Right-side top hinge cover that restores your refrigerator's finished appearance. Snaps over hinge hardware to hide screws and protect from dust.

Replaces a cracked, warped, or missing cover on your refrigerator. Protects internal components and restores proper fit so parts stay secured.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Mounts at the upper corner of the cabinet to support and pivot the refrigerator door. Replace if bent, cracked, or missing to restore door alignment.

Mounting screw for refrigerator assembly. Secures components and panels in place. Replace if screw is stripped, missing, or no longer holding tight.

Protective cover that shields the control board and electronics from dust and debris. Replace if cracked, broken, or missing to restore internal protection.

This cover hinge assembly secures and guides the appliance lid or top panel so it opens and closes smoothly. Replacing a worn hinge restores proper lid alignment and helps eliminate sticking, sagging, or uneven closure. What it does:

• Provides a pivot point for the lid/top cover, holding it in the correct position during use
• Restores smooth opening and closing when original hinge is bent, worn, or broken
• Helps eliminate lid sag, misalignment, or rubbing against the cabinet
• Works with the appliance's existing bracketry and fasteners to maintain fit and function

• One cover hinge assembly

• Basic hand tools required; keep fasteners organized for reassembly
• Disconnect power and follow appliance-specific safety guidelines before beginning repair
• Inspect mating surfaces and replace any damaged screws or brackets for a secure fit

Conceals and protects the refrigerator door hinge area. Replaces cracked, missing, or loose hinge covers to restore clean appearance and shield components.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

Replaces cracked, broken, or worn refrigerator door hinges. Secures and aligns the door for proper closure. Available in multiple finishes to match.

Secures the refrigerator door and allows smooth swinging. Replace if hinge is cracked, broken, or causing door misalignment and sagging issues.

Upper door hinge secures and pivots your refrigerator door for smooth operation. Replace if cracked, damaged, or causing door misalignment and gaps.

Upper door hinge secures and pivots your refrigerator door for smooth operation. Replace if cracked, damaged, or causing door misalignment and gaps.

Replacement door hinge assembly that secures and supports your refrigerator door. Restores smooth pivoting when the original is cracked, worn, or broken.

Replacement door hinge assembly that secures and supports your refrigerator door. Restores smooth pivoting when the original is cracked, worn, or broken.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

Black plastic corner cover replaces damaged or missing exterior trim on your refrigerator. Restores finished appearance and protects edges from wear.

Replaces missing or damaged corner trim filler on your refrigerator. Restores a clean, finished look to interior or exterior cabinet seams and edges.

Secures and aligns your refrigerator door at the top of the cabinet for smooth operation. Replace if your door sags or seals improperly. Confirm fit.

Front left roller assembly supports your refrigerator and enables smooth movement for cleaning. Replace when damaged or worn from moving. Verify fit with your model.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

Hex head sheet metal screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, corroded, or stripped screws.

Thin spacer shim that aligns and levels internal refrigerator components. Replace if worn, missing, or damaged to restore proper fit and clearances.

Covers the lower front opening of your refrigerator. Replace this grille when the original is cracked, broken, or missing to restore a finished look.

Front kickplate grille panel that installs at the base of your refrigerator for a finished look. Replace if cracked, broken, or clips are damaged.

Covers the base of your refrigerator to protect the lower ventilation area. Replace if cracked, broken, or missing. Snaps into place in minutes.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Protective cover for water valves and inlet hoses. Replace if cracked, broken, or missing to shield components from debris and accidental contact.

Plastic cover cap that protects the water valve connection on your refrigerator. Replace if cracked, broken, or missing to prevent debris buildup.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This Clamp-Tube secures small appliance tubing and helps maintain a watertight connection so hoses stay in place and reduce leaks or movement. Durable metal construction designed to hold tubing firmly at fittings. What it does:

• Secures water or drain tubing to fittings to prevent disconnection and leaks
• Reduces hose movement and vibration that can cause wear or chafing
• Helps maintain consistent water flow by keeping connections tight
• Common symptom: loose or leaking tubing, rattling or intermittent water flow

• One tube clamp

• Disconnect power and shut off water supply before starting any repair
• Slide clamp over tubing then position at fitting and tighten with pliers; avoid over-tightening
• Inspect tubing and fittings for damage and replace if cracked or worn

Back cover panel for bottom-mount refrigerators. Replaces cracked, broken, or missing rear cover. Installs on the back exterior of the unit.

Adjustable leveling leg for refrigerators and freezers. Installs at base corner to stabilize appliance on uneven floors. Replace if broken or stripped.

Guides condensation from the defrost cycle to the evaporation pan. Replace if cracked, clogged, or causing water leaks and ice buildup in the freezer.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.
