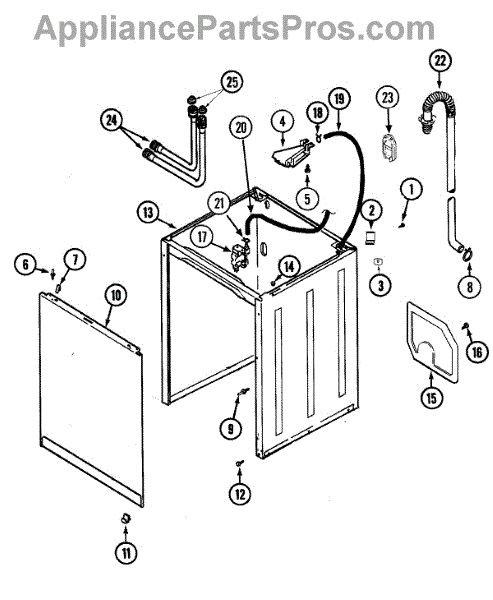

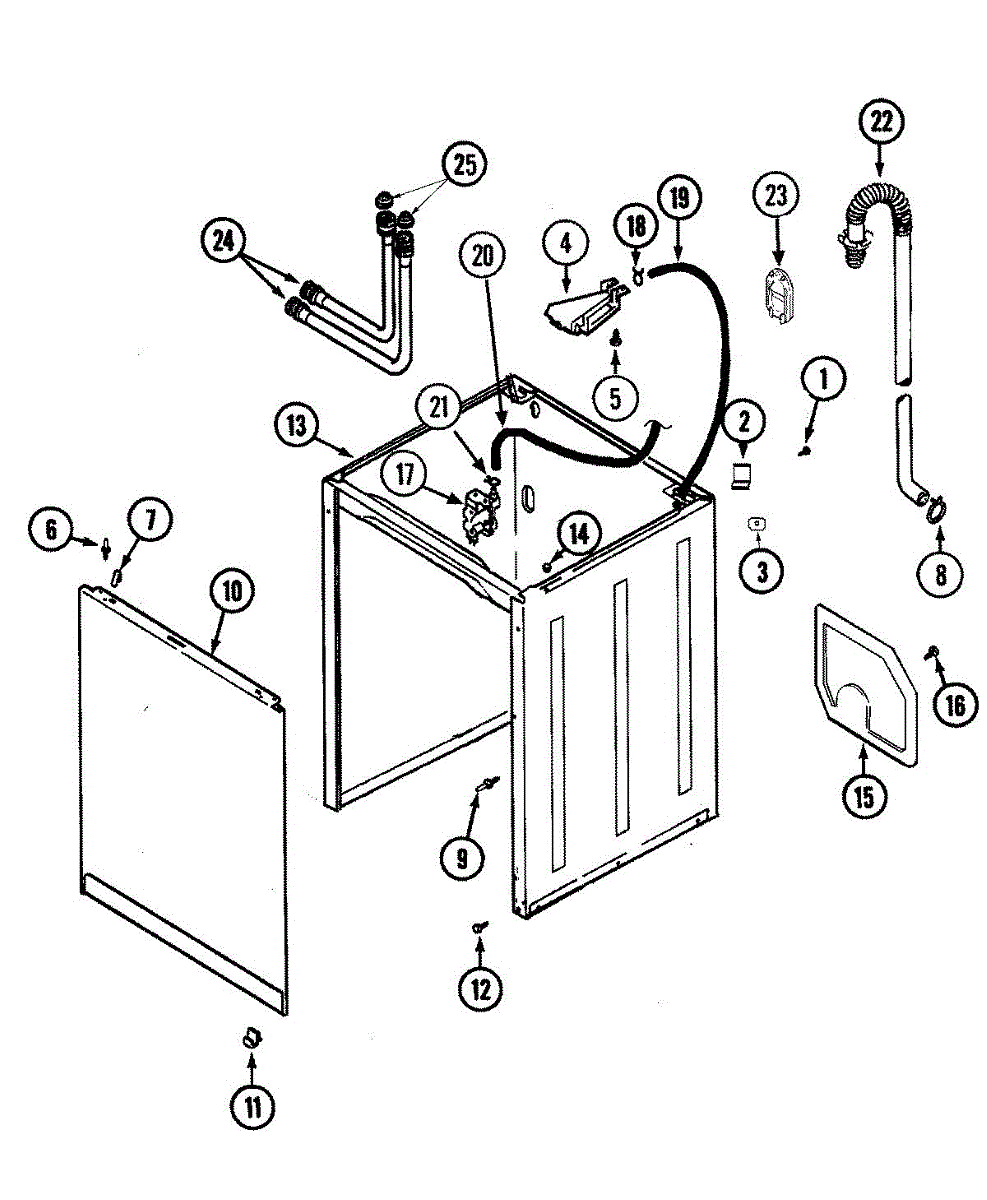

Parts for Magic Chef CAV1004AWW: 02 - Cabinet Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This factory replacement screw fastens the specified components in your appliance as shown in the parts diagram. It restores a secure fit and helps eliminate looseness, vibration, and noise when an original fastener is missing, stripped, or corroded.

• Secures panels, brackets, and assemblies at the locations designated for your model
• Direct replacement for the original fastener to maintain proper fit and alignment
• Replace when threads are damaged, head is rounded, or rust is present
• Common symptoms: loose or rattling parts, gaps/misalignment, increased vibration

• Disconnect power and shut off water supply if applicable before servicing
• Refer to your model's parts diagram for exact location and quantity
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent stripping

This flume hose kit replaces the flexible hose that routes water from the dispenser/fill flume into the washer tub. Restoring a tight, unobstructed hose helps prevent leaks and ensures detergents, bleach, and softener are carried into the wash.

• Directs fill/dispenser water from the flume to the tub during wash and rinse
• Restores proper flow so dispenser compartments empty correctly
• Helps prevent leaks caused by splits, brittleness, or loose connections
• Typical symptoms: water on the floor, dispenser not draining, weak flow into tub, musty odor near dispenser

• Disconnect power and shut off water supply before servicing
• Access the dispenser/flume area by removing the top or control panel per your model
• Note hose routing; transfer and secure clamps; avoid kinks and rub points
• Run a quick fill/rinse to check for leaks at both connections after installation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 10-32

This cabinet top clip is a small plastic retainer that secures the appliance's top/cabinet to the chassis, keeping the cabinet aligned and preventing movement or rattling. It restores a flush fit between the cabinet and body. What it does:

• Secures the top/cabinet panel to the appliance frame so the cabinet stays in place
• Prevents the cabinet from shifting, vibrating, or sitting unevenly
• Helps stop gaps that can let dirt or moisture into cabinet seams
• Common symptom: loose, rattling, or misaligned cabinet top or trim

• One cabinet top clip

• Always disconnect power before servicing the appliance
• Remove necessary trim or panels to access the cabinet clip; a screwdriver or trim tool may be needed
• Replace broken or worn clips with matching parts only; inspect surrounding fasteners for damage

Specs: 10-16 x 1/2 inch.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Specs: 10-16 x 1/2 inch.

Washer keeps filling when off or won't fill at all? The water inlet valve controls flow into the tub. DIY-friendly repair with video guide available.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This flume hose kit replaces the flexible hose that routes water from the dispenser/fill flume into the washer tub. Restoring a tight, unobstructed hose helps prevent leaks and ensures detergents, bleach, and softener are carried into the wash.

• Directs fill/dispenser water from the flume to the tub during wash and rinse
• Restores proper flow so dispenser compartments empty correctly
• Helps prevent leaks caused by splits, brittleness, or loose connections
• Typical symptoms: water on the floor, dispenser not draining, weak flow into tub, musty odor near dispenser

• Disconnect power and shut off water supply before servicing
• Access the dispenser/flume area by removing the top or control panel per your model
• Note hose routing; transfer and secure clamps; avoid kinks and rub points
• Run a quick fill/rinse to check for leaks at both connections after installation

Fix a washer that won't stop filling or has water level issues. This pressure switch hose connects the tub to the control switch. Easy 15-minute repair.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This washer drain hose routes wastewater from the drain pump to your standpipe or laundry tub. Replacing a cracked or kinked hose restores reliable draining and helps prevent leaks during the spin/drain cycle.

• Connects the washer's drain outlet to the household standpipe or laundry tub
• Molded bend helps position the hose correctly and reduces kinking
• Typical symptoms: water leaking at the back or onto the floor while draining
• Visible splits, soft spots, brittleness, or abrasion on the hose
• Slow or incomplete draining caused by kinks or internal blockage

• Disconnect power and move the washer to access the rear; shutting off water is recommended as a precaution
• Place towels or a shallow pan to catch residual water when removing the old hose
• Transfer and reuse existing clamps/brackets if required; fully seat and secure connections, and route the hose to avoid kinks or rubbing
• Insert the outlet end properly into the standpipe or tub per your model's instructions, then run a quick drain/spin to check for leaks

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.
