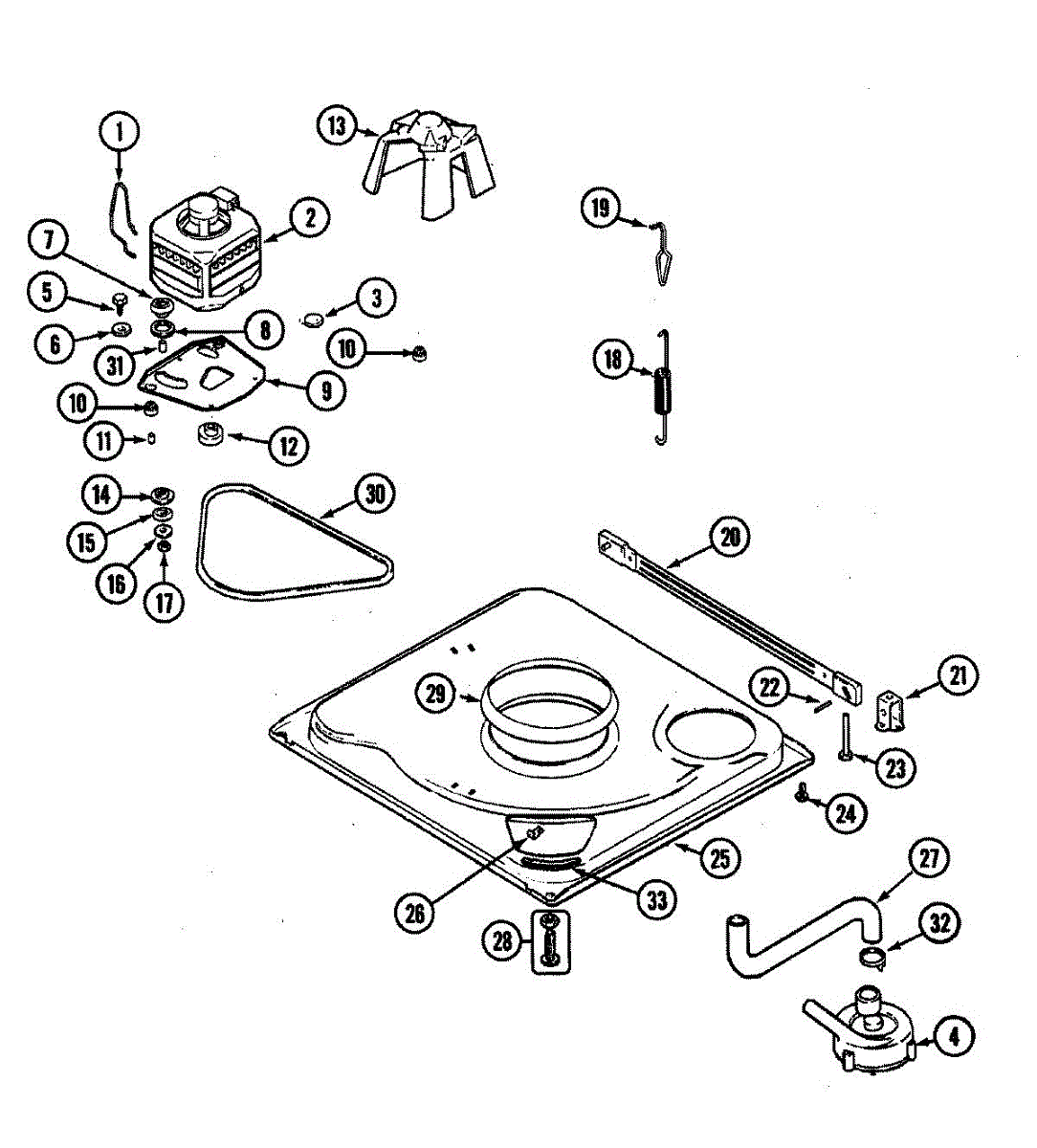

Parts for Magic Chef CAV1004AWW: 01 - Base Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

The Motor Spring is an OEM replacement part for Whirlpool top-loading washing machines. This spring applies proper tension to the agitator assembly during wash cycles.

Causes of a bad motor spring can include damage from unintended impacts or fatigue after extended use. Over time, constant movement may cause the spring to weaken.

Symptoms of a bad motor spring include:

• Inadequate cleaning as clothes don't tumble vigorously
• Excessive noise or vibration from the off-balance agitator
• Stalling or failure of the agitator to rotate fully

This OEM Whirlpool replacement is also compatible with some Kenmore, Admiral, Estate, and Roper top-load washer models as well.

Washer won't spin, makes grinding noise, or has burning smell? Motor assembly drives drum rotation. DIY-friendly repair, typically 30-60 minutes.

Washer making loud screeching or grinding noise during drain or spin? A failed drain pump bearing is the likely cause. DIY repair in 20-60 minutes.

Drive motor isolator.

Motor plate isolator.

Washer won't spin, makes grinding noise, or has burning smell? Motor assembly drives drum rotation. DIY-friendly repair, typically 30-60 minutes.

This motor isolator is a rubber mounting that cushions and secures the washer motor, reducing vibration and noise during spin cycles and helping protect the motor and chassis from premature wear. What it does:

• Cushions the motor to reduce vibration and minimize rattle and noise during operation
• Keeps the motor properly positioned to prevent rubbing or misalignment
• Helps protect motor and surrounding components from shock and movement
• Common symptom linkage: excessive vibration, loud noise during spin, or visible motor shifting

• Disconnect power to the appliance before starting any work.
• This part mounts between the motor and chassis; access typically requires tilting or removing the washer cabinet or accessing the underside.
• Inspect adjacent mounts and fasteners; replace any worn hardware and use the exact OEM part for proper fit.

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Kit of six suspension springs that support and stabilize the washer tub. Replace when springs lose tension, causing tub to tilt or sag improperly.

Connects suspension spring to washer frame to support the tub. Replace if hook is broken, worn, or missing to restore proper tub suspension and alignment.

A stabilizer bracket that secures and supports internal components to reduce movement and rattle during operation. Helps restore stable alignment so the appliance runs quieter and more reliably. What it does:

• Provides structural support to help keep assemblies aligned and reduce excessive movement
• Dampens vibration and minimizes knocking or rattling noises tied to loose components
• Restores proper fit where a worn or broken bracket allowed shifting or misalignment
• Works as a repair for symptoms like intermittent noise, excess vibration, or parts that sag or shift

• Disconnect power (and water if appliance-specific) before beginning any repair
• Basic hand tools are usually required; refer to your model's service manual for exact steps
• Inspect surrounding parts for wear while replacing the bracket

Replace a worn rear self-leveling leg to restore a stable, level appliance. This foot supports the back of the cabinet and automatically compensates for floor unevenness to help reduce vibration, rocking, and noise during operation.

• Supports and self-levels the rear of the cabinet to maintain stability on uneven floors
• Helps address wobbling/rocking, excessive vibration, rattling or "walking," and an appliance that won't sit level
• Replaces a rear leg that is missing, cracked, or worn
• Promotes smoother operation by helping the unit sit properly level

• Disconnect power; if applicable, turn off the water supply
• With assistance, carefully tilt the appliance to access the rear base
• Remove the damaged rear leg from its mount and install the new leg, ensuring it seats fully
• Lower the unit, verify level with a bubble level, and adjust front legs as needed for final leveling

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This kit is used to fix balance problems. Kit includes a new base, heavy duty springs and a snubber.

Fixes washer leaking during drain cycle. This tub to pump hose connects the tub to the drain pump. Simple 3-minute DIY repair with basic tools.

Includes leg, foot pad and locknut.

Snubber ring cushions the tub base during spin cycles. Replace if cracked, worn, or producing plastic shavings to restore smooth, quiet operation.

Drive belt transmits motor power to drum for wash and spin cycles. Replace if washer won't spin, makes noise, or belt shows wear. Confirm fit by model.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
