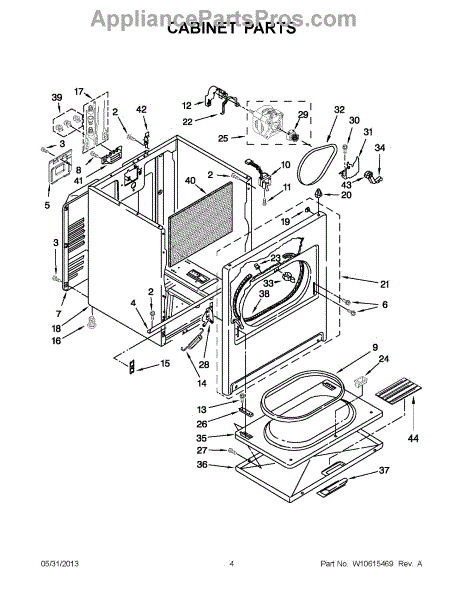

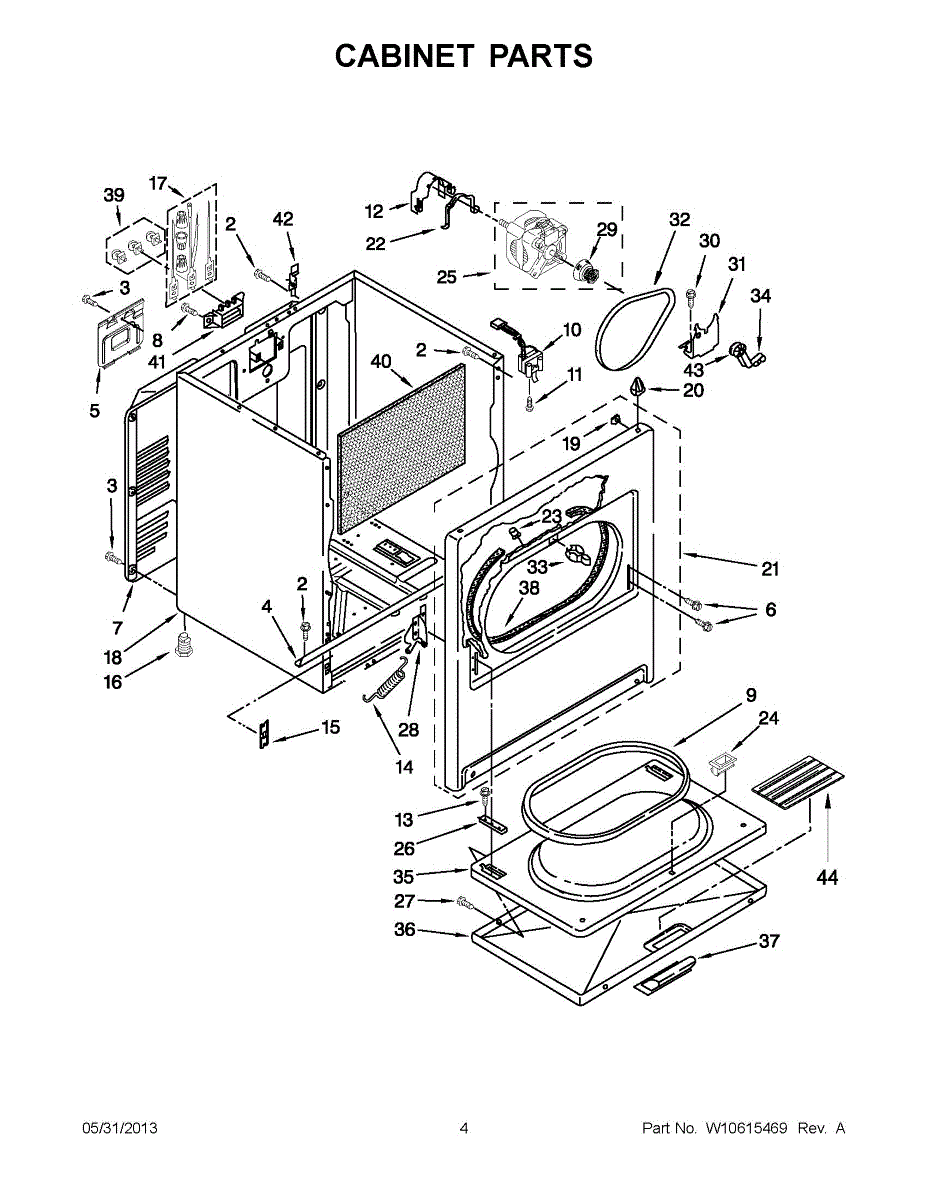

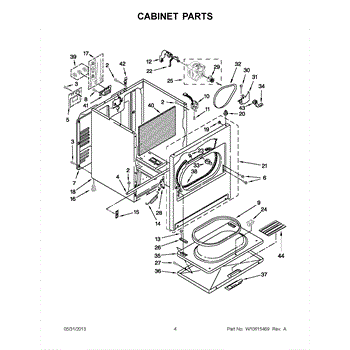

Parts for Whirlpool 7EWED1705YM1: 02 - Cabinet Parts

10 - 16 x 1/2

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Protective cover that finishes and seals the designated area on your dryer. Replace if cracked, broken, or missing to restore a clean appearance.

Size: 10-32 x 1/2 inch.

Replaces the cabinet back panel on your dryer. Needed when the original is cracked, damaged, or missing. Covers internal components and restores enclosure.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Seal is an OEM part for Whirlpool dryers. It forms a tight seal around the dryer door, preventing heat from escaping and ensuring efficient drying performance. This seal helps to maintain the internal temperature of the dryer, optimizing energy use and improving drying results.

Causes of a bad door seal can include wear and tear from regular use, damage due to improper handling or cleaning, or deterioration over time. A compromised door seal can affect the efficiency of the dryer and lead to potential safety issues.

Symptoms of a bad door seal include:

• Heat escaping from the dryer door
• Longer drying times
• Higher energy consumption
• Visible wear or damage to the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Dryer won't stop spinning when door opens or won't start at all? The door switch likely failed. DIY repair in 10-20 minutes with basic tools.

6-20 screw secures panels, brackets, and internal components. Replace stripped, missing, or damaged screws to restore proper fit and eliminate rattling.

Fixes excessive vibration and rattling from dryer motor movement. This clamp secures the motor to its bracket, restoring stability. DIY-friendly repair.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

This door spring restores the proper counterbalance of the oven door so it opens smoothly and closes with controlled tension. Replacing a worn or broken spring helps prevent the door from dropping, slamming, or sitting unevenly.

• Provides counterbalance tension for the oven door through the hinge mechanism
• Helps the door open smoothly and hold at a partially open position
• Maintains even alignment and consistent gasket contact
• Common symptoms of failure: door feels heavy, drops open or slams, uneven door height, squeaks during movement

• Disconnect power at the breaker and allow the oven to cool completely
• Springs are under tension—support the door and use caution to avoid injury
• Note the spring's routing and anchor points before removal; reinstall in the same positions
• For even tension, consider replacing both door springs when the design uses one per side

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

Dryer outer cabinet that houses internal components. Replace if your cabinet is rusted, dented, cracked, or damaged, compromising structural integrity.

U-type clip nut slides onto sheet metal panels to create threaded anchor points for screws. Replace if broken, missing, or worn during repairs.

Fix rattling or gaps at the top of your dryer with this front top panel lock. Secures the panel to the cabinet frame for a tight, aligned fit.

Control panel for dryers and laundry centers. Replaces cracked, broken, or damaged panels on the front of your unit. Restores appearance and function.

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

Dryer door won't stay closed or requires tape to shut? The door catch secures your dryer door during operation. Easy 5-30 minute DIY fix with video guide.

Retaining clip secures panels and assemblies in dishwashers, dryers, and laundry centers. Replaces worn, broken, or missing clips to restore fit.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

Left hand hinge. For right hinge use WP8066056

The Door Hinge is an OEM part for Whirlpool dryers. This hinge ensures the secure attachment of the dryer door to the appliance, allowing it to open and close smoothly. Right-hand hinge. For the left hinge use AP3047600

Causes of a bad door hinge can include regular wear and tear, accidental impacts, or overloading the door.

Symptoms of a bad door hinge include:

• Door not closing properly
• Door sagging or misaligned
• Difficulty opening or closing the door
• Noises or squeaking when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

This motor base is the replacement support that secures and positions the dryer motor assembly, helping restore stable alignment and minimize excess noise or vibration during operation. What it does:

• Supports and mounts the motor to the appliance chassis to keep the motor properly aligned
• Helps maintain correct spacing between the motor and drive components for smooth operation
• Reduces motor movement that can cause rubbing, vibration, or unusual noise
• Can address symptoms such as excessive vibration, banging, or misaligned motor movement

• Disconnect power to the appliance before starting any repair
• Follow the appliance's service manual or exploded parts diagram for correct removal and reassembly
• Use appropriate tools and take care with sharp sheet-metal edges
• Retain or transfer any original mounting hardware unless new fasteners are explicitly listed

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

• Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
• Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
• Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

DIY install — about 15 minutes

1. Unplug dryer; remove lint screen housing & front panel.
2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Idler pulley maintains belt tension in your dryer drum assembly. Replace if the wheel is cracked, bracket is broken, or pulley has worn bearings.

White front door panel for dryers. Replaces cracked, damaged, or discolored doors. Restores appearance and ensures proper door closure and seal.

This replacement door handle restores a secure, easy-to-grip surface for opening and closing the appliance door and refreshes the door's appearance. Designed to match factory fit and function when the original handle is cracked, loose, or missing. What it does:

• Provides a firm, ergonomic grip for opening and closing the appliance door.
• Restores proper mounting and alignment if the original handle is damaged or wobbly.
• Helps prevent injury from sharp or broken handle edges.
• Improves the appearance of the appliance door when the original is faded, cracked, or missing.

• One replacement door handle

• Before starting, disconnect power to the appliance or unplug it to reduce shock risk.
• Remove any trim or access panels per the service instructions to access handle fasteners.
• Keep original screws and small parts; use the OEM diagram to confirm orientation and placement.
• Do not overtighten fasteners—snug only to avoid cracking the handle.

Seals the gap between drum and front panel to retain heat and reduce friction. Replace if worn, torn, or causing noise. Confirm fit with your model.

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.

Sound absorber insulation pad for dryers. Installs inside cabinet to dampen noise and vibration. Replace if torn, compressed, or missing.

Dryer won't heat or stops working? A burnt or melted terminal block disrupts power flow. DIY repair in under an hour with video guidance included.

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

Dryer idler pulley maintains belt tension for smooth drum rotation. Replace if dryer squeaks or makes loud noises. Verify fit with your model number.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
