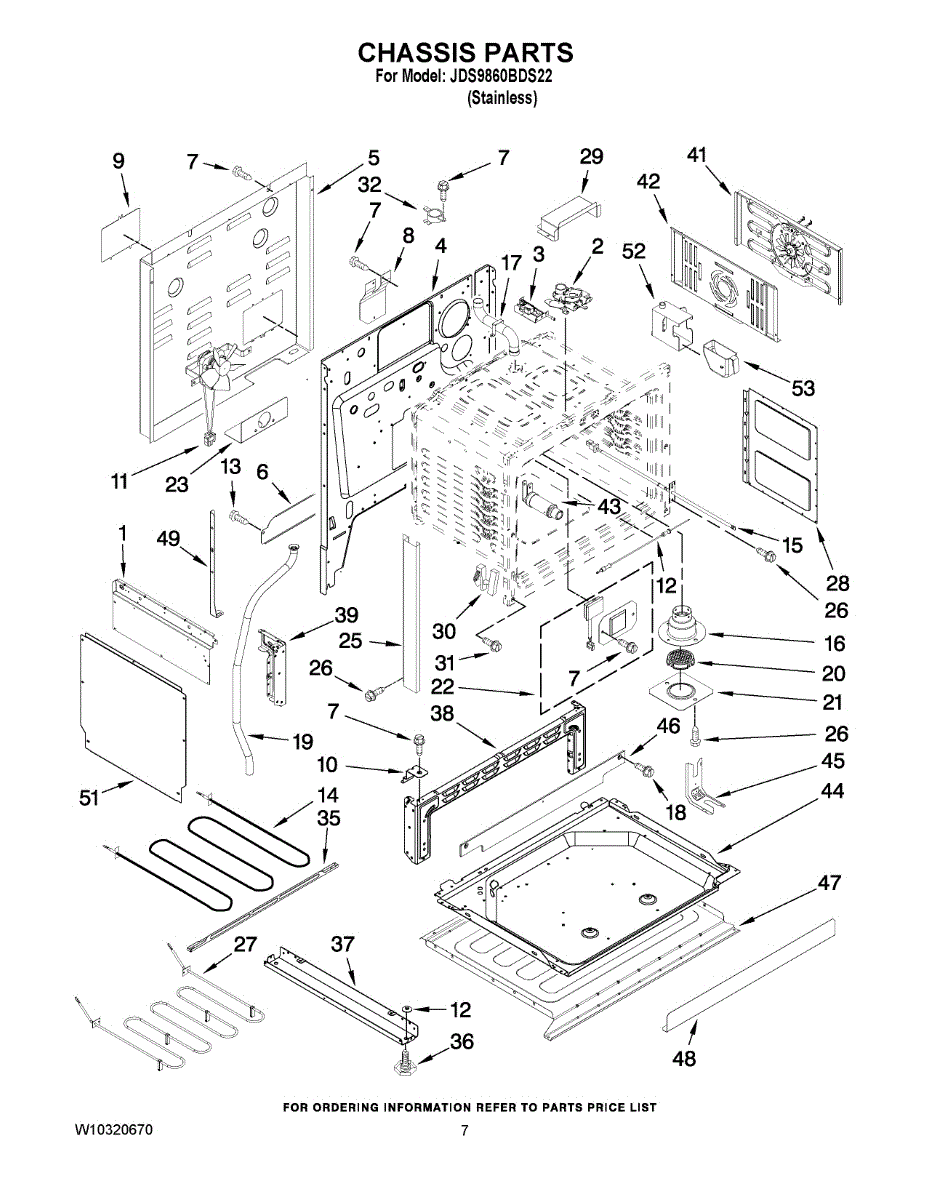

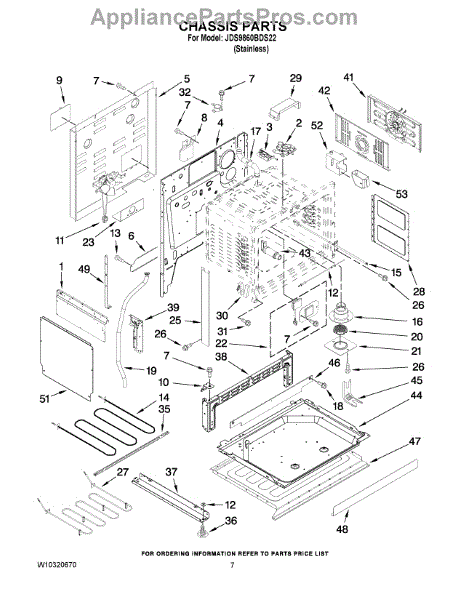

Parts for Maytag JDS9860BDS22: 05 - Chassis Parts

Replace your range's control panel trim if cracked, chipped, or damaged. This decorative panel covers the control area for a finished appearance.

Spacer that maintains proper spacing between range components to prevent rubbing and misalignment. Replace if cracked, broken, or missing during repairs.

Oven light won't turn on or off? Replace the light switch assembly to restore reliable control. Moderate DIY repair taking 15-30 minutes with basic tools.

Replace your range's access cover housing if the original is cracked, broken, or missing. This protective cover installs over internal components.

Spacer that maintains proper spacing between range components to prevent rubbing and misalignment. Replace if cracked, broken, or missing during repairs.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Oven not recognizing meat probe when inserted? This replacement meat probe restores temperature monitoring. Easy DIY fix, works right away.

If your broil function won't heat or brown food properly, a failed broil element is the likely cause. This upper heating element restores direct radiant heat.

Fix F1 error codes and temperature control issues with this oven temperature sensor. Takes about 15 minutes to install—just 2 screws and plug-in wiring.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Replace cracked, chipped, or missing side trim panels on your range. This decorative trim covers the side edge of the cooktop for a finished look.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Oven not heating or baking unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair—takes about 10 minutes.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Support plate for wall oven and range models. Mounts internally to provide structural reinforcement. Replace if cracked, broken, or missing.

Bottom panel for your range chassis. Replaces cracked, rusted, or damaged base panels. Installs under the appliance to protect internal components.

Mounting bracket that secures and stabilizes internal range components. Replace if cracked, bent, or missing to restore proper alignment and support.

This receptacle provides the appliance's electrical connection point, restoring a secure power feed and preventing intermittent or no-power issues. Use it to replace a damaged or worn connector for reliable operation. What it does:

• Restores the appliance's main power connection where the cord or harness plugs in
• Replaces cracked, melted, or loose receptacles that cause intermittent power
• Stops arcing or poor contact that can lead to shutdowns or overheating smells
• Helps ensure a firm, vibration-resistant electrical connection

• Disconnect all power before starting work to avoid shock or injury
• Verify wiring colors and terminal positions match the original before reconnecting
• Securely fasten the receptacle and strain-relieve the cord/harness to prevent movement

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Replace your range's control panel cover if it's cracked, broken, or missing. This housing protects internal electronics and maintains your range's appearance.
