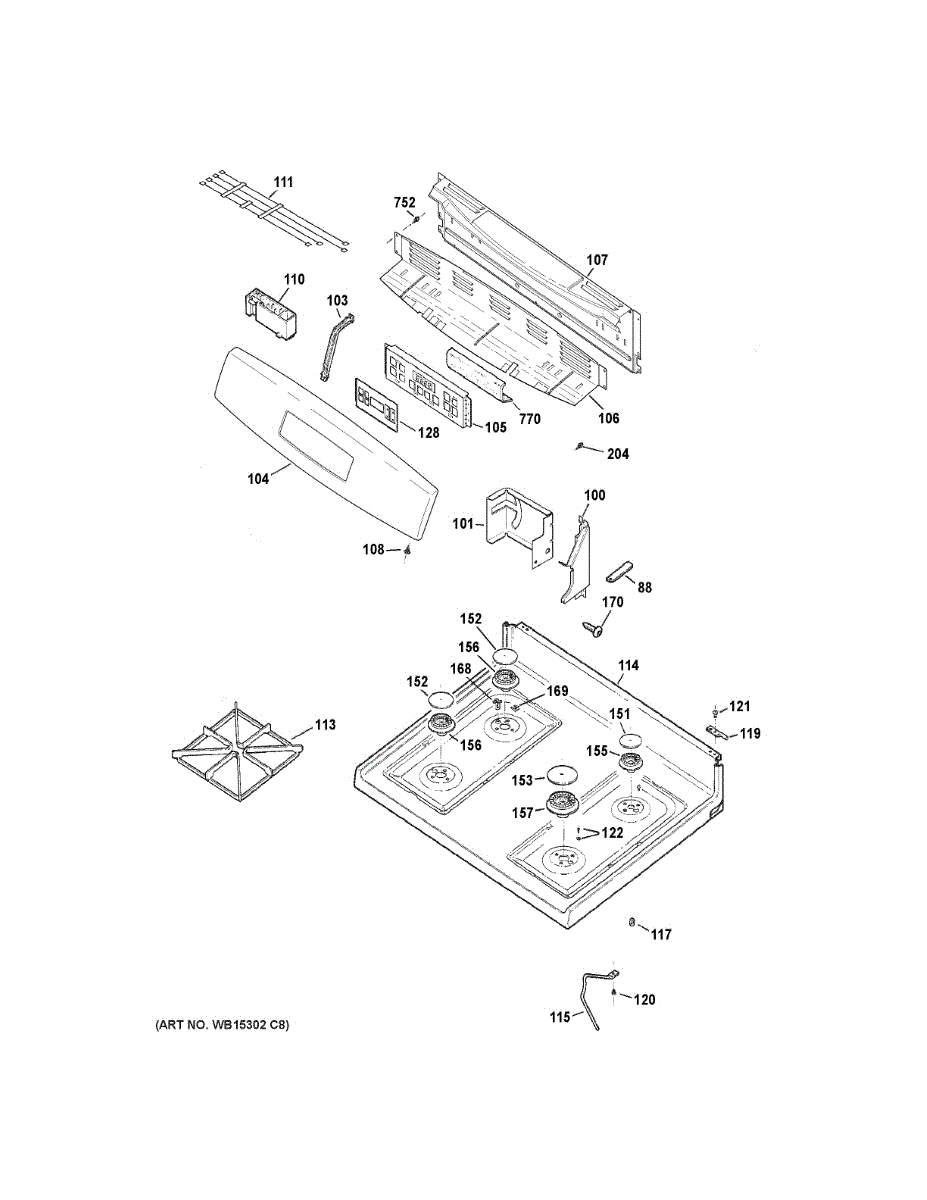

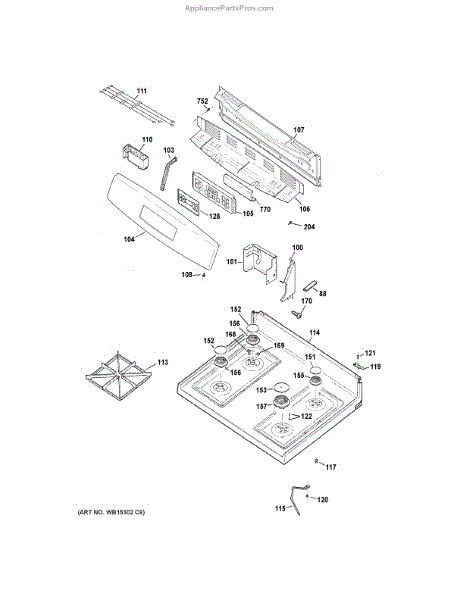

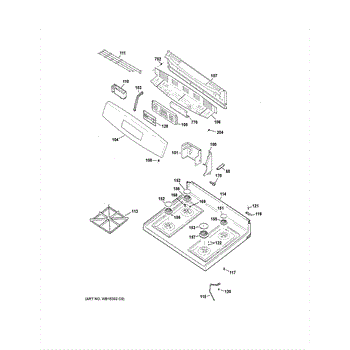

Parts for Ge JGB630DEF3CC: Control Panel & Cooktop Parts

The Control Oven TO9 is an OEM component specifically designed for GE gas ranges. This control board oversees critical oven functions including temperature selection, timers, and safety features.

Causes of a bad control board include component failures or degradation over time due to heat exposure during normal oven operations. Physical damage from drops or impacts can also affect board integrity.

Symptoms of an incompatible control board include:

• Oven not reaching or maintaining set temperatures
• Timers malfunctioning or failing to count down
• Safety issues arise if components malfunction

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Upper back cover panel for ranges. Protects internal components and provides structural enclosure. Replace if cracked, damaged, or missing for proper fit.

Lower back cover panel for gas ranges. Protects internal components at the rear base. Replace if cracked, damaged, or missing to restore appearance.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Surface burners not lighting or clicking continuously? This spark module controls ignition for all burners. Moderate DIY repair with basic tools.

Gas range not igniting or clicking continuously? This electrode and harness assembly restores proper spark ignition. Common repair for burners that won't light.

This Cooktop support is a replacement mounting bracket that secures and stabilizes the cooktop assembly for safe, even cooking. Restores proper alignment and reduces wobble or movement of the cooktop surface. What it does:

• Physically supports the cooktop assembly and keeps it seated in the countertop opening.
• Helps maintain correct gap and alignment between the cooktop and surrounding trim.
• Reduces unwanted movement, rocking or rattling during use.
• Contributes to safe operation by holding cooktop components in their intended position.

• Installation requires access beneath or around the cooktop; remove power before servicing.
• Keep fasteners and mounting surfaces clean; replace any corroded hardware as needed.
• Observe all safety precautions when working with sharp sheet-metal edges.

Pin locator for gas ranges. Secures and aligns burner components in proper position. Replace if broken, missing, or worn to restore proper burner assembly.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

Replacement control panel overlay for your range. This cosmetic part covers the control panel area. Order a new overlay if yours is faded, scratched, or damaged.

Burner cap sits atop the burner base on gas ranges and cooktops. Replace if cracked, chipped, discolored, or missing to restore a clean appearance.

Medium burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn from use.

Replacement burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

If your gas range burner won't light or clicks continuously, this igniter clip secures the ignition system. Simple DIY fix in under 15 minutes.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Package of 12

Insulation shield that installs behind the range control panel. Protects control board and wiring from oven heat. Replace if cracked, damaged, or missing.
