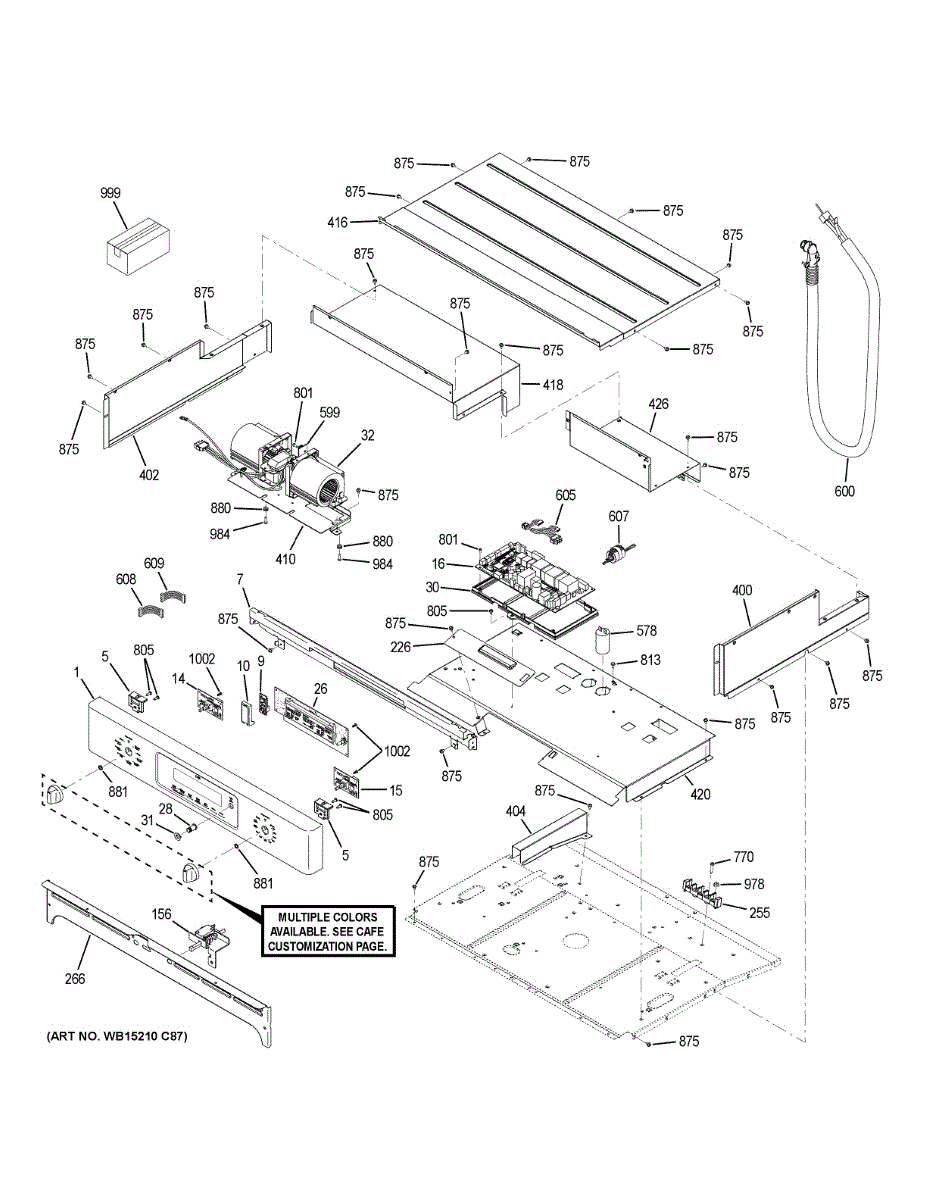

Parts for Ge CTS90FP3M2D1: Control Panel Parts

This control panel support bracket secures the console/upper control assembly to the oven/range frame, keeping the control panel stable and aligned for reliable operation and user access. What it does:

• Supports and stabilizes the front control/console to prevent sagging or wobble
• Keeps control switches, buttons and display aligned for correct operation
• Reduces vibration and rattling noise from a loose console
• Helps maintain proper spacing so knobs and trim install correctly

• One control panel support bracket

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove backguard/console trim to access bracket; retain all fasteners for reassembly
• Use common hand tools (screwdrivers, nut drivers); avoid forcing plastic tabs
• Handle electronic components with care and avoid static discharge

Can't control your range from your phone or app? This Wi-Fi module restores smart connectivity when remote features stop working or won't connect.

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

If your oven's knob doesn't respond or settings won't change, this user interface board translates knob inputs to the control system. Direct fix.

Fix a broken or missing control knob that won't turn or select settings. This selector knob restores reliable heat and timer selection on your control panel.

This machine control board is the appliance's main electronic control that manages cycles, timers and user inputs so the unit runs the selected functions reliably. It replaces a failed control to restore normal operation. What it does:

• Receives signals from buttons, dials and sensors and directs power to the motor, valves and heaters
• Controls cycle timing, start/stop commands and program sequencing
• Commonly used when the appliance won't start, displays error codes, or cycles incorrectly
• Helps resolve intermittent operation or unresponsive controls when board failure is confirmed

• One machine control board

• Disconnect power before accessing or replacing the control to avoid shock
• Handle the board by its edges and avoid touching components or connector pins
• Verify connector locations and orientation before detaching wiring; photograph connections if needed

This UI display board is the appliance's front control interface that shows settings and lets you change options. Replacing a faulty board restores visible status and responsive controls for normal operation. What it does:

• Provides the front-panel display and accepts user input from touchpad/buttons
• Sends control signals to the main control to change modes and temperatures
• Commonly replaced when the display is blank, unresponsive, or shows incorrect/garbled information
• Resolves intermittent control failures or inability to change settings

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the board carefully; avoid touching circuit traces and use anti-static precautions if available
• Reconnect power and test functions before reassembling panels

This knob timer assembly replaces a worn or broken oven timer knob so you can set and adjust cooking time and oven functions reliably. It restores manual timer control and a finished look to the oven control panel. What it does:

• Provides a functional timer knob for setting cook time and manual timer controls
• Replaces cracked, stripped, or non-moving knobs that won't turn or engage the timer
• Helps restore proper user interface when the original timer knob is loose or missing
• Fits into the oven control fascia and mates with the timer/control shaft to transmit user input

• 1 knob timer assembly

• Requires basic hand tools; remove power to the appliance before starting
• Pull or remove the old knob/assembly from the control shaft; press the new assembly onto the shaft until secure
• Do not force parts; if resistance or misalignment occurs, stop to avoid damage

Plastic frame board for wall ovens. Replaces cracked, broken, or worn frame components. Essential structural part for proper oven assembly and support.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Control panel trim cracked or loose? This switch plate assembly secures control switches and knobs while protecting wiring. Straightforward install.

Replace your range's door latch access cover if the oven door won't latch properly or the latch mechanism is exposed. Simple repair restores door function.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

Flexible 6-foot conduit that routes and protects power wiring for ranges and wall ovens. Replace if cracked, damaged, or missing during installation.

Fixes electrical issues like oven not heating or controls not responding. This main wire harness connects power throughout your wall oven. Moderate DIY.

Fix intermittent power, control errors, or non-responsive functions in your oven. This complete wire harness restores electrical connections between components.

Fix oven door latch issues with this wire harness connector. Repairs door lock failures and control communication problems. Standard difficulty repair.

Wire harness connects glass touch control panel to your wall oven's main control board. Replace if wiring is damaged, frayed, or connection is loose.

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

This nut secures the control panel encoder shaft so the selector knob stays firmly in place and maintains reliable signal contact. A small but essential fastener for stable user control and consistent cycle selection. What it does:

• Secures the encoder/shaft to the control panel assembly to prevent wobble or loosening
• Helps keep the encoder's electrical contact aligned for accurate signal input
• Can resolve symptoms like a loose or spinning selector knob or intermittent control responses
• Designed for direct replacement of the original mounting nut for the encoder

• One nut encoder (quantity: 1)

• High-level task: remove control panel or console to access the encoder shaft; reassemble panels after replacement
• Use proper tools to avoid stripping the nut or damaging the encoder shaft
• Power off and unplug the appliance before beginning any work to avoid shock or damage

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.
