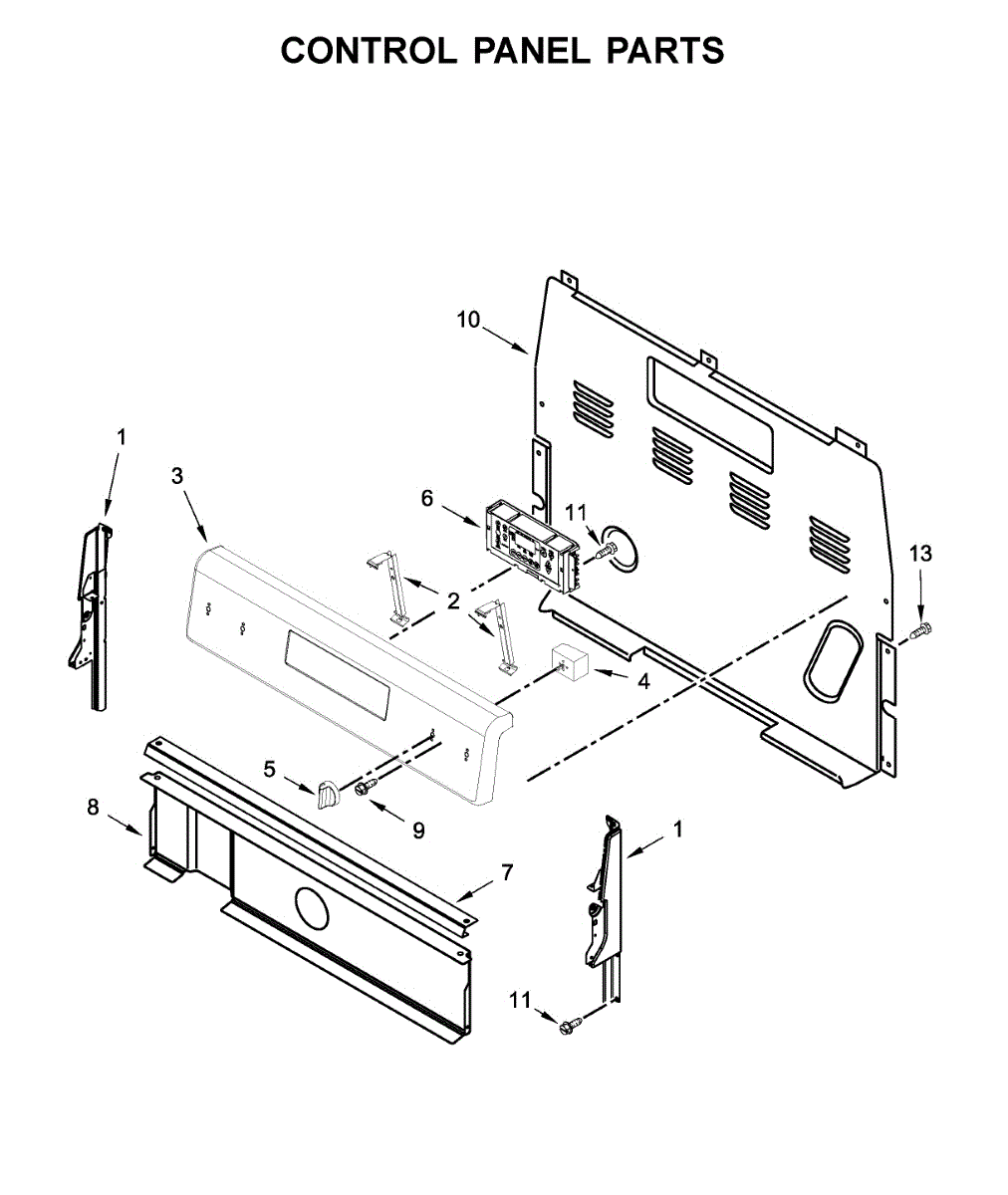

Parts for Whirlpool WFE510S0HS1: Control Panel Parts

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

Secures range components and panels to maintain proper alignment. Replace if your original bracket is cracked, broken, or missing to restore stability.

This is the control panel for use on ranges. The purpose of this part is to house the selection buttons and display of the range. It's stainless steel in color and is a high-quality, durable replacement part. A good sign that the control panel has gone bad is if the buttons are not working when they are pressed. Diagnostic codes, or fault codes, will be shown on the display for some issues. Additional signs include if the oven will not turn on or off or if there is a temperature control problem. Unplug the range from the outlet before replacing this part. Wear work gloves for safety.As a genuine OEM part, this is a high-quality replacement part that comes directly from the manufacturer. It is sold individually. This control panel is compatible with ranges that are manufactured by the Whirlpool brand.

Burner stuck on high or won't regulate temperature? This infinite switch controls top burner heat settings. Straightforward DIY fix, 15-30 minutes.

The Dual Element Control Switch is an OEM part for Whirlpool ranges and cooktops. This control switch is designed for models with dual heating elements, allowing you to adjust the size of the heat output on the LF element depending on whether you are using the inner or outer element.

Causes of a bad Dual Element Control Switch can include electrical issues such as short circuits or worn contacts, physical damage to the knob or switch mechanism, or problems with the internal components that regulate power.

Symptoms of a failing Dual Element Control Switch include:

• Inability to change between the inner and outer elements
• Irregular heating or lack of response when adjusting the temperature
• The switch feeling loose or not engaging properly
• Burner not heating even though the switch is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner stuck on high or won't heat properly? This surface element switch controls your range burner temperature. Simple 15-minute DIY fix.

Control knob for electric range temperature adjustment. Attaches to the control panel. Replace if cracked, broken, or missing for proper operation.

Range won't turn on or display shows nothing? The control board regulates temperature, timers, and heating elements. Requires multimeter testing.

Secures the control console assembly to your range, keeping the control board and interface stable. Replace if bracket is cracked, broken, or missing.

Heat shield for electric ranges. Protects components from heat damage. Replace if cracked, warped, or missing to restore proper heat protection.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Protective cover that conceals your range's control box and wiring. Replaces cracked, broken, or missing covers to restore a finished look.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
