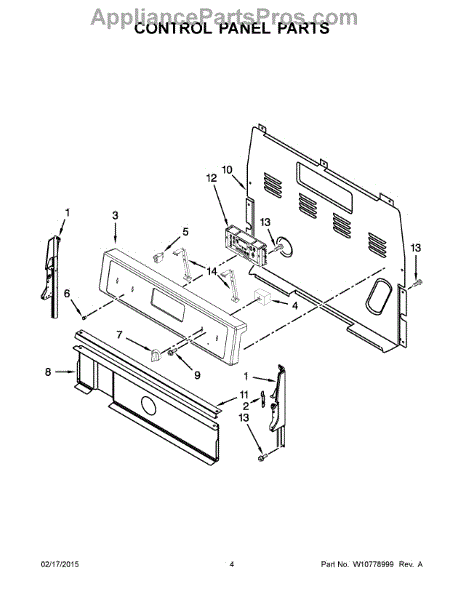

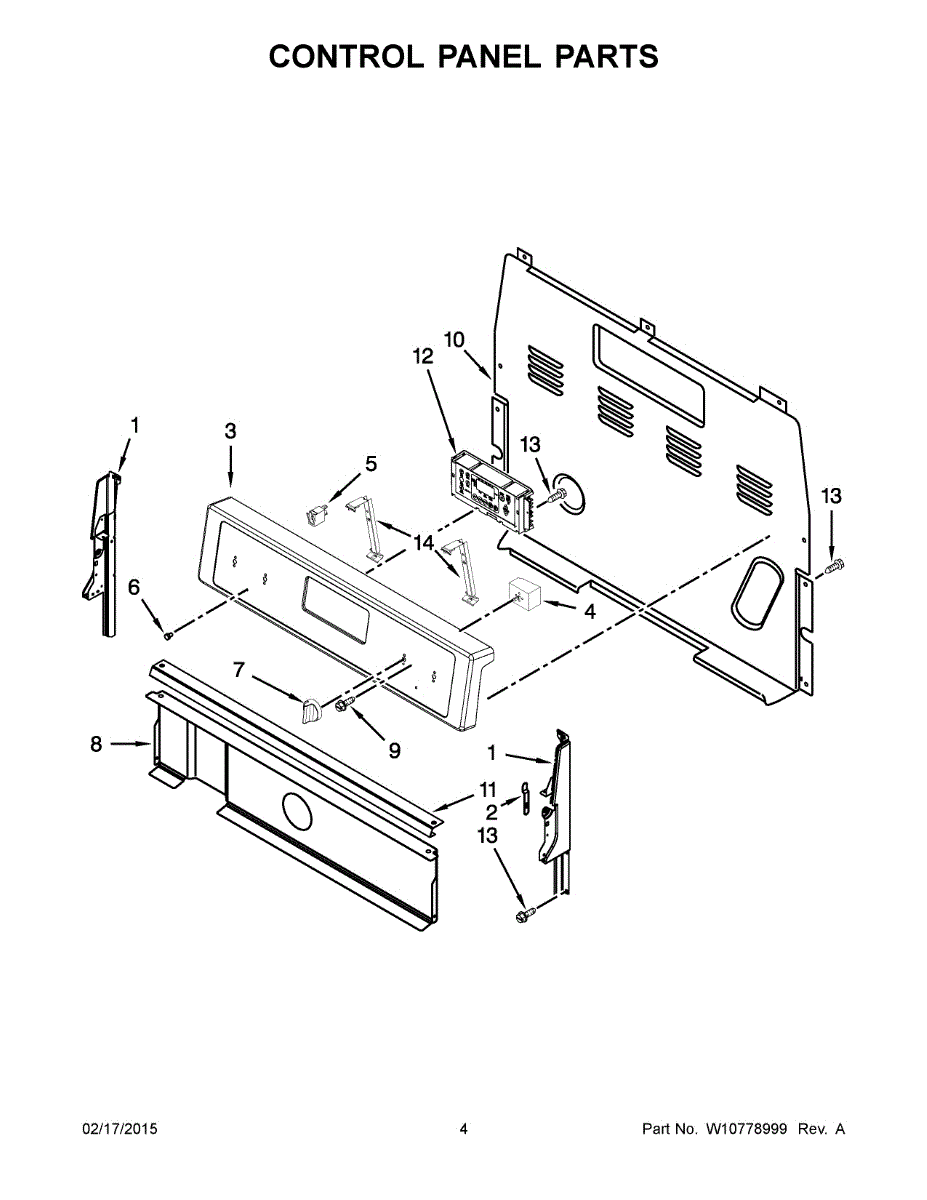

Parts for Whirlpool WFE515S0ED0: 03 - Control Panel Parts

Endcap panel that covers and finishes exposed edges of range control or cabinet panels. Replace if cracked, broken, or missing to restore appearance.

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

Color: White  Note: Left side endcap

White plastic end cap that covers the right side panel edge of your range. Replaces cracked, broken, or missing endcaps to restore a finished appearance.

Secures wiring and components to prevent movement and disconnection in your electric range. Replace if clips are broken or wires are loose. Verify fit with your model number.

If your range buttons aren't responding or the display is blank, the control panel may need replacement. This part restores full electronic function.

This control panel provides the user interface for selecting cycles and settings and restores control functions and display feedback to the console. It replaces a damaged, cracked, or unresponsive front panel so the appliance responds properly to inputs. What it does:

• Houses the touchpads/buttons and display area used to choose cycles, options, and start/stop commands
• Routes user inputs to the main control board so selections register and start functions
• Restores readable labels and a clean surface if the original panel is scratched, cracked, or worn
• Can resolve symptoms like unresponsive buttons, faded/obscured labels, or erratic panel behavior

• Disconnect power (unplug or breaker) before starting any repairs
• Handle the panel and any attached ribbon cables with care to avoid damage
• Some disassembly of the front console may be required; keep fasteners organized for reassembly
• Test function before fully reassembling the appliance

This control panel is the user interface for your appliance, providing the buttons and display that let you select cycles and options. Replacing a worn or damaged panel restores reliable control and clear feedback during operation. What it does:

• Houses the touchpads/buttons and display used to start and program the appliance
• Sends user commands to the main control board so cycles and options run as selected
• Common symptom: buttons or touchpads do not respond or register intermittently
• Common symptom: display is dim, shows incorrect characters, or fails to illuminate
• Can help when the exterior panel is cracked, faded, or cosmetically damaged

• Disconnect power to the appliance at the breaker or unplug before servicing
• Handle with care to avoid damage to the display, ribbon cable, and connectors
• Align and seat the panel and any retaining clips or screws; avoid over-tightening

Replace a damaged or unresponsive range control panel. Fixes issues with buttons not working, display problems, or control malfunctions on your stove.

Front console fascia that houses and supports your range's user interface. Replace when cracked, worn, or damaged to restore a clean appearance.

Burner stuck on high or won't regulate temperature? This infinite switch controls top burner heat settings. Straightforward DIY fix, 15-30 minutes.

The Dual Element Control Switch is an OEM part for Whirlpool ranges and cooktops. This control switch is designed for models with dual heating elements, allowing you to adjust the size of the heat output on the LF element depending on whether you are using the inner or outer element.

Causes of a bad Dual Element Control Switch can include electrical issues such as short circuits or worn contacts, physical damage to the knob or switch mechanism, or problems with the internal components that regulate power.

Symptoms of a failing Dual Element Control Switch include:

• Inability to change between the inner and outer elements
• Irregular heating or lack of response when adjusting the temperature
• The switch feeling loose or not engaging properly
• Burner not heating even though the switch is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner stuck on high or won't heat properly? This surface element switch controls your range burner temperature. Simple 15-minute DIY fix.

Replace your range's surface unit indicator light when it stays on, flickers, or burns out. Signals when burners are hot for safety. Verify fit.

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

Replace your range's surface burner control knob if cracked, stripped, or missing. Attaches to the valve shaft to control heat settings on your cooktop.

Replace a broken, cracked, or missing control knob on your electric range. Restores clean appearance and smooth operation of burner settings.

Heat shield for electric ranges. Protects components from heat damage. Replace if cracked, warped, or missing to restore proper heat protection.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Protective cover that conceals your range's control box and wiring. Replaces cracked, broken, or missing covers to restore a finished look.

Secures the control console assembly to your range, keeping the control board and interface stable. Replace if bracket is cracked, broken, or missing.

Fix an oven that won't heat or turn on with this range electronic control board. Common solution for unresponsive controls and display issues.

Fix erratic oven behavior, unresponsive controls, or cycle timing issues by replacing this range electronic control board. Restores proper function.

Replace your range's electronic control board when buttons don't respond or cycles won't start. Restores control panel function and cycle timing.

Fix a range that won't heat, has an unresponsive display, or shows error codes. This electronic control board manages oven functions and timing.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Secures range components and panels to maintain proper alignment. Replace if your original bracket is cracked, broken, or missing to restore stability.
