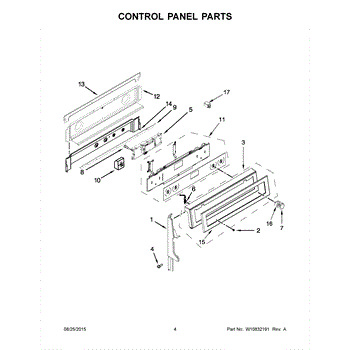

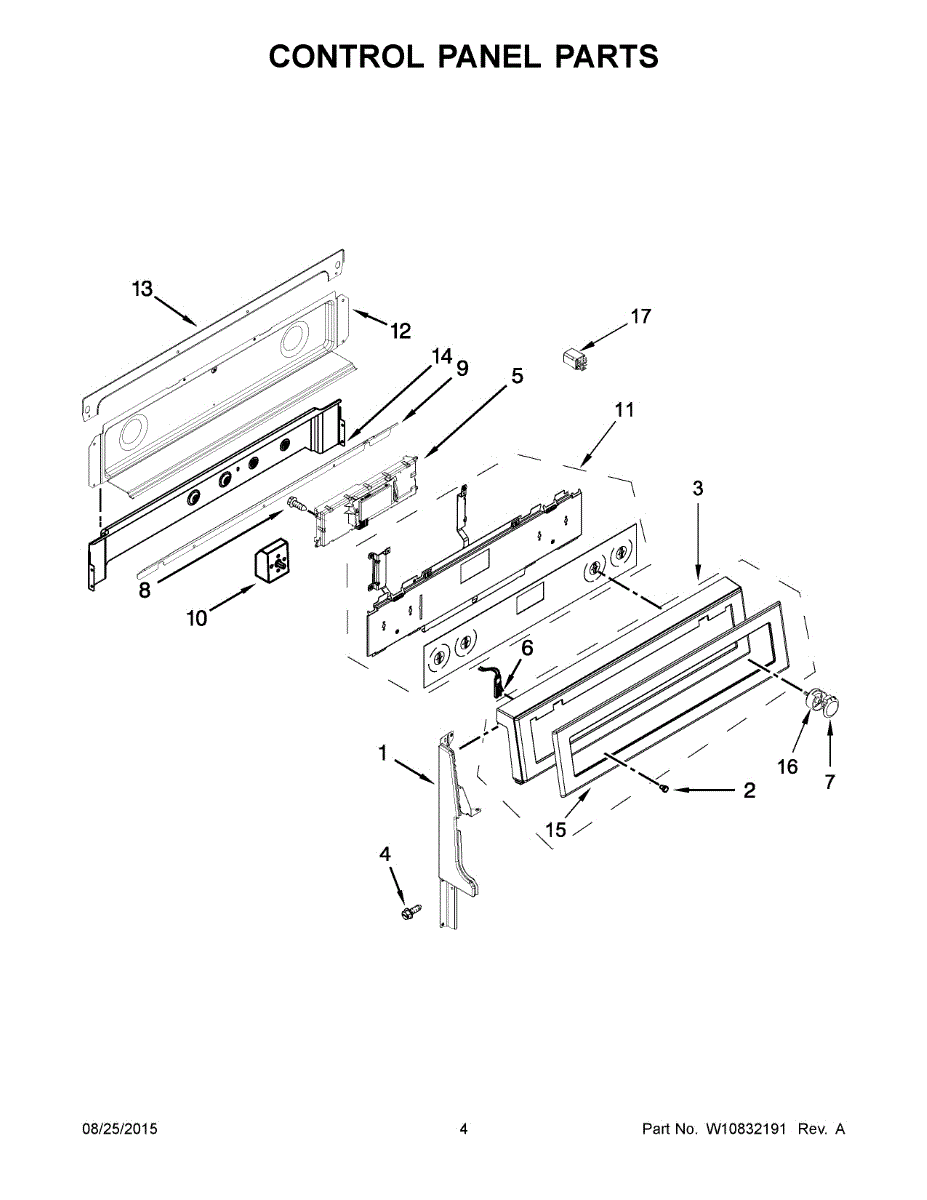

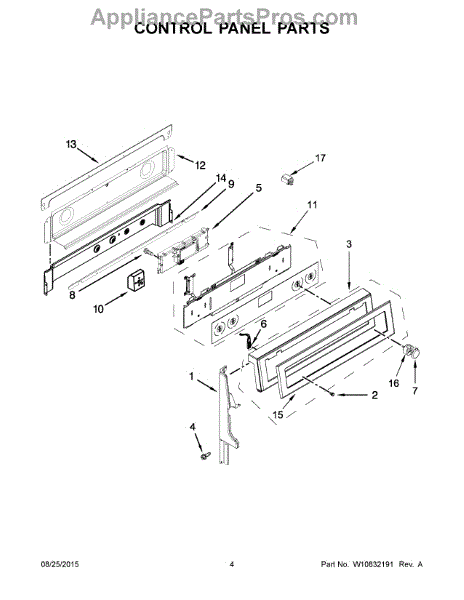

Parts for Whirlpool YKFED500ESS1: 03 - Control Panel Parts

Black plastic end cap for range control panel. Replaces cracked, broken, or missing left side trim piece. Covers panel edge for clean finish.

Color: Black

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

If your range display is unresponsive or damaged, this control panel console restores full command of cooking functions and settings for your oven.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Fix unresponsive controls or erratic displays with this range electronic control board. Restores proper cycle sequencing and user interface functionality.

Indicator light that illuminates when functions are active on your range control panel. Replace if stuck on, dim, or fails to light. Verify fit by model number.

Replace your range's control knob to restore the look and function of your cooktop. This knob installs on the control panel and may need replacement if cracked or worn.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This infinite switch controls a surface burner's variable heat levels on electric ranges, restoring precise temperature control for cooking. It replaces a worn or failed control to help burners reach and hold chosen settings. What it does:

• Regulates power to a surface element across variable heat settings for precise cooking control
• Commonly replaces a switch that won't heat, won't turn off, or only works on some settings
• Stops erratic cycling or inconsistent burner heat caused by a failing control
• Works with compatible top burner assemblies that use a triple-contact infinite switch

• One infinite switch assembly

• Disconnect power at the breaker or unplug the range before starting any repair
• Remove the cooktop or control panel as needed to access and replace the switch; keep track of wire locations
• Verify switch function with a multimeter and follow all safety guidelines and OEM instructions

If your electric range burner won't heat properly or won't turn off, this infinite switch controls power to the surface element. Moderate DIY repair.

Burner won't regulate heat or stays on constantly? The infinite switch controls burner temperature settings. Most DIYers replace it in 15-20 minutes.

Burner won't turn off or only heats on high? This infinite switch controls heat settings for your electric range's surface element. DIY repair.

Control panel for electric ranges. Replaces damaged, cracked, or worn panels. Includes display and button interface for oven and cooktop settings.

Replace your range's wire cover if it's cracked, broken, or missing. This protective cover conceals and organizes wiring in your electric or gas range.

If your range display is unresponsive or damaged, this control panel console restores full command of cooking functions and settings for your oven.

Trim ring that sits behind your electric range control knob. Replace if cracked, broken, or missing to restore a finished appearance around the knob opening.
