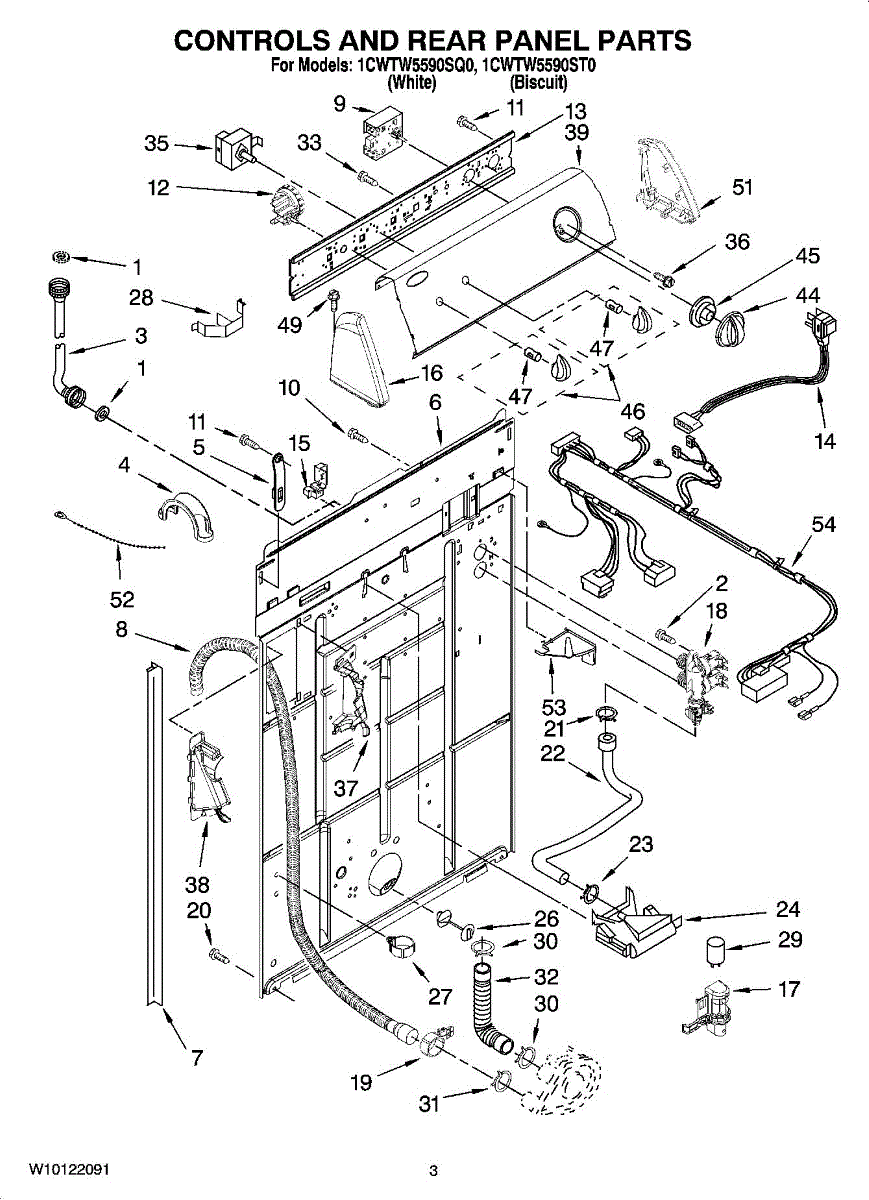

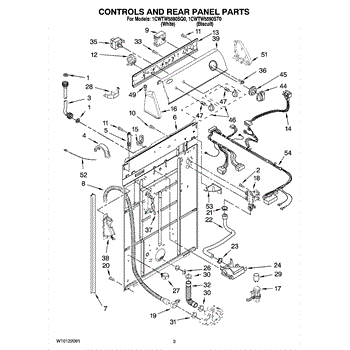

Parts for Whirlpool 1CWTW5590ST0: 02 - Controls And Rear Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Rubber washer gasket for washer fill hose connections. Replace if worn or leaking at coupler adapter. Measures 1-1/16 x 5/8 inch. Verify fit with model.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Secures your washer's drain U-bend to prevent leaks and keep plumbing properly aligned. Simple push-fit installation takes just minutes to complete.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

Drain hose routes wastewater from your washer tub to household plumbing. Replace if cracked, leaking, worn through, or damaged from wear or friction.

Washer won't advance cycles or skips rinse/spin? Timer controls wash, rinse, and spin cycles. Common DIY fix—most complete repair in 10 minutes.

Size: 10-24 x 3/8 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fix a washer that overfills, won't fill to the right level, or floods. This water level pressure switch monitors tub water. DIY install in 1 hour.

Replacement power cord that connects your washer to the wall outlet. Includes strain relief for cable protection. Needed when original cord is damaged, pinched, shorted, or worn. Direct plug-in installation.

This valve controls the flow of household water into the dishwasher during the fill portions of the cycle. Replacing a weak, stuck, or leaking valve restores proper filling and helps prevent fill errors and water damage. What it does:

• Opens and closes to let the correct amount of water into the tub
• Common symptoms: no fill or very slow fill
• Water entering the tub when the dishwasher is off or won't stop filling
• Drips or leaks from the valve body or hose connection

• One water inlet valve assembly

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water; relieve line pressure at the supply
• Note wire and hose orientation before removal; move connections one at a time
• After installation, restore water and power, then run a brief fill to check for leaks

Secures panels and components in your washer to prevent rattles and maintain alignment. Replace when broken or missing to restore proper fit.

10 - 16 x 1/2

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Connects the vacuum break to the outer tub in your washer. Replace if cracked, split, or leaking to prevent water from bypassing the tub during fills.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Washer slowly filling or dripping when off? A faulty vacuum break allows water to siphon back into the drum. Takes 30 minutes with our video guide.

Structural bracket that secures the rear panel to the washer chassis. Replace if cracked, broken, or missing to restore proper alignment and cabinet stability.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Secures hoses and components in your washer. Replace if broken, loose, or causing leaks. Verify compatibility with your model number before ordering.

Used on the pressure switch hose harness.

Washer just hums but won't start? The motor capacitor enables your washer to start and run. Easy 10-minute fix with our installation video guide.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Replacement drain hose connecting washer tub to pump assembly. Replace if cracked, split, leaking, or worn. Carries water from tub during drain cycle.

Size: 10 - 24 x 3/8

This rotary temperature selector switch controls oven temperature selection and gives precise user input to the range's control assembly for accurate cooking. It replaces a worn or unresponsive temperature selector so the oven can register chosen settings. What it does:

• Selects oven temperature or cooking mode via a 4-position rotary selector
• Restores tactile rotation and detent feedback when the original switch is stiff or broken
• Can stop incorrect or no-temperature selection symptoms such as oven not changing heat setting or failing to respond to knob changes
• Interfaces with the range's control circuitry to send the selected temperature signal to the main control

What's included:

• One rotary temperature selector switch (4-position)

Install notes:

• Disconnect power to the appliance before starting any repair to avoid shock hazard
• Access and removal may require removing the control panel or console; keep screws and fasteners organized
• Avoid bending terminals; verify proper connector seating during reassembly

Fixes loose or wobbly timer controls by securing the timer assembly to its mounting bracket. Simple 5-minute repair restores proper cycle operation.

Drain hose routes wastewater from your washer tub to household plumbing. Replace if cracked, leaking, worn through, or damaged from wear or friction.

Drain hose routes wastewater from your washer tub to household plumbing. Replace if cracked, leaking, worn through, or damaged from wear or friction.

This replacement control knob fits stove and oven front panels and restores a secure, easy-to-use interface for setting cooktop or oven functions. It makes selecting heat or function positions simple and more reliable. What it does:

• Replaces a broken, cracked, missing, or stripped control knob used to turn temperature or function selectors
• Provides a positive grip and clear detent positions for accurate setting selection
• Helps eliminate slipping or loose knobs that prevent precise control
• Matches the original shape and mounting style for a direct push-on replacement

• Pull off the damaged knob and push the replacement onto the valve/stem until fully seated
• Unplug the appliance or disconnect power before servicing electrical or gas controls
• Ensure the knob aligns with the shaft flat or keyed slot so positions match the control panel markings
• Do not force fit; if knob does not seat, inspect the control shaft and the knob bore for damage

Replacement timer knob for washers. Installs on the control panel to adjust wash cycle settings. Replace if cracked, broken, or won't stay attached.

Replaces a cracked, worn, or loose timer dial skirt that causes knob wobbling. Restores secure knob fit and proper alignment on the timer control opening.

Color: white. Measures about 2 inches in diameter.

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
