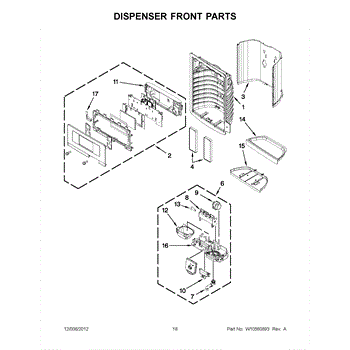

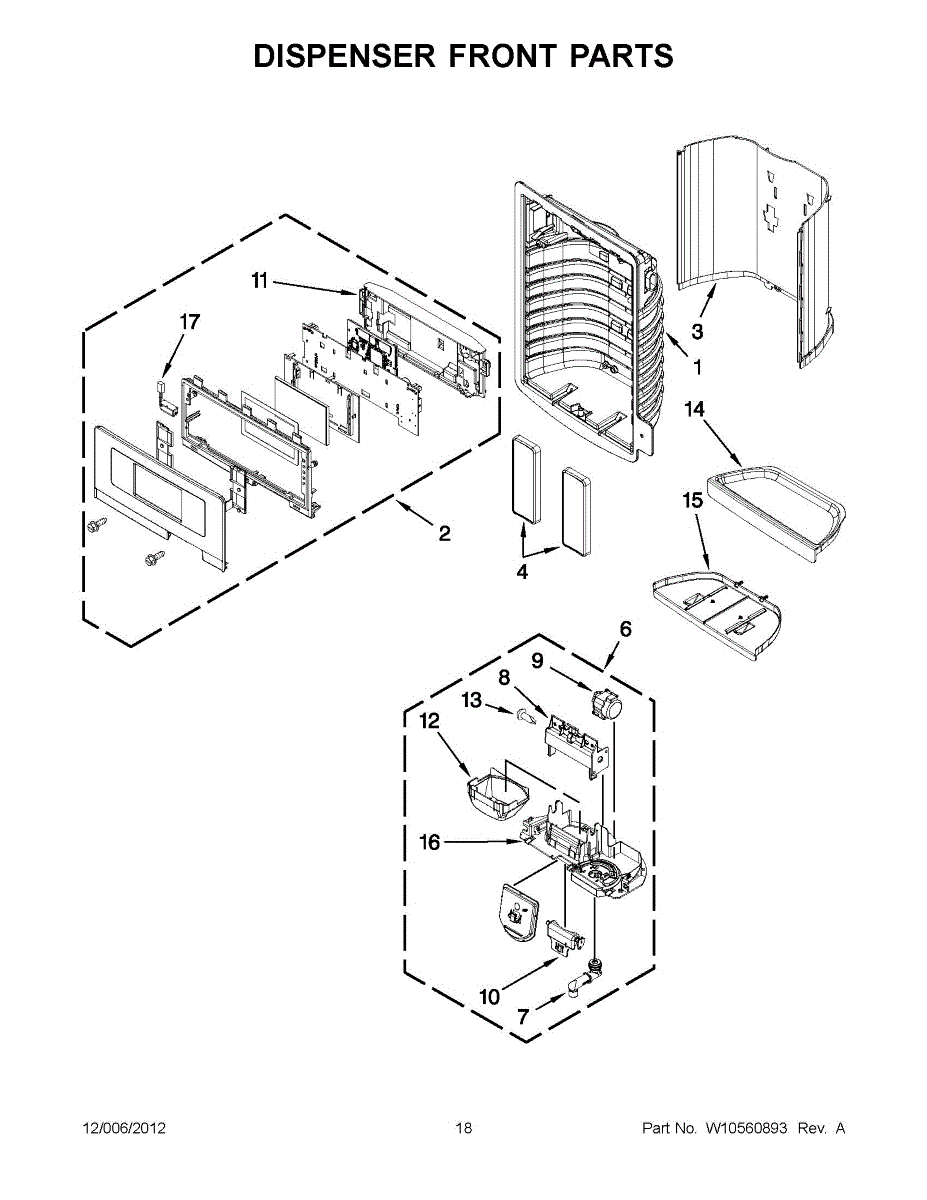

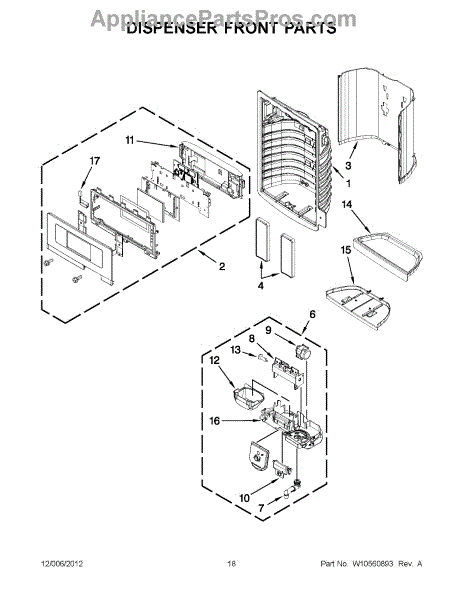

Parts for Kitchenaid KFXS25RYBL5: 09 - Dispenser Front Parts

This part is a replacement electronic control board for a water and ice dispenser on a refrigerator. It is manufactured by Whirlpool. The control board is responsible for facilitating all dispenser operations, including dispensing ice and water, and turning the light on or off. When the user selects an action, a signal is sent to the control board, which then activates the appropriate system.Electronic control boards can last for many years. However, exposure to moisture and general wear and tear of contacts and soldered parts may lead to failure. If the control board has failed, the dispenser will not function, or will function erratically. Replacing the control board will require using a flathead screwdriver to pry off the dispenser cover. Locate the board, disconnect the wires, and remove it. Install the new board by following the steps in reverse.This genuine OEM part is sold individually. It fits Whirlpool brand refrigerators.

Shield guard for bottom-mount refrigerators. Protects internal components from damage. Replace if cracked, broken, or missing to maintain proper coverage.

Replacement shield guard for your refrigerator. Protects internal components from damage. Order a new one if yours is cracked, broken, or missing.

Leveling pad for bottom-mount refrigerators. Installs under the unit to stabilize and level. Replace if cracked, worn, or missing for proper support.

Replaces cracked, broken, or worn dispenser paddle on refrigerators with ice and water dispensers. This lever activates ice or water flow when pressed.

Refrigerator dispenser pad installs on the control panel for water and ice operation. Replace if cracked, unresponsive, or causing erratic dispensing.

Forms the interior of your refrigerator's ice and water dispensing area. Replace if cracked, broken, or causing drips and frost buildup at the chute.

This spigot routes water from the internal supply to the dispenser outlet, delivering a controlled stream. Replacing a cracked or worn spigot helps restore proper dispensing and reduces drips or leaks at the dispenser area.

• Directs water from the internal tubing/reservoir to the dispenser outlet
• Maintains a defined flow path to help prevent splashing and after-drip
• Common symptoms of failure: dripping at the dispenser, slow/erratic flow, leaks inside the door, or visible cracks at the outlet
• Replace if damaged, leaking, or obstructed by mineral buildup

• Unplug the appliance and shut off the household water supply
• Dispense water to relieve line pressure before replacement
• Access the dispenser; note tubing orientation and fully seat/secure connections
• Restore water and power; flush the system and check all joints for leaks

Mounting bracket secures internal refrigerator components for stable alignment. Replace if cracked, bent, or broken to restore proper support and positioning.

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Replacement cover for bottom-mount refrigerators. Restores appearance when the original is cracked, broken, or missing. Installs on interior components.

Channels ice from maker to dispenser opening. Replace if cracked, broken, or missing to prevent ice scatter and jams. Installs in freezer door dispenser.

Refrigerator mounting clip secures components in place. Replace if broken, loose, or missing to prevent rattling and ensure proper part alignment.

Drip tray installs under your refrigerator to collect defrost and condensation water. Replace if cracked, broken, or missing to prevent leaks.

Replacement drip tray that collects defrost and condensation water and channels it to the drain path, helping prevent leaks and water damage in the refrigerator cabinet. What it does

• Captures defrost and condensation water from the evaporator area and routes it to the drain pan.
• Prevents water pooling inside the cabinet or onto the floor when functioning properly.
• Common symptoms of a failing tray: visible water under the fridge, leaks from the base, or damp/musty odors.
• Designed for select Whirlpool refrigerators.

• Disconnect power before servicing to avoid electrical shock.
• Access and remove the old tray by removing the lower access panel or toe grille; replace with the new tray and secure panels.
• Ensure the tray and drain path are aligned and clear of debris so water can flow to the drain pan.

Replacement drip tray for refrigerator water and ice dispenser. Installs below dispenser opening. Replace if cracked, warped, discolored, or missing.

Drip pan that installs beneath the refrigerator to collect condensation water. Replace if cracked, warped, or missing to prevent leaks.

This slide tray is the removable drip tray that catches spills and condensation from the refrigerator dispenser, keeping the cabinet floor and shelf area clean and dry. It slides out for quick cleaning and maintenance. What it does:

• Collects drips and overflow from the water/ice dispenser to prevent puddles under the dispenser
• Slides outward for easy access when wiping up spills or removing debris
• Re-seats into the dispenser assembly to maintain proper alignment and coverage
• Helps reduce need for frequent cleanups and keeps the dispenser area sanitary

• Disconnect power and turn off the water supply before servicing dispenser components
• Remove old tray by sliding it out; align new tray and slide in until it clicks or seats firmly
• Use only gentle pressure—do not force or pry parts into place
• If tray doesn't seat correctly, check for obstructions or damaged mounting tabs before operating

Illuminates your refrigerator's ice and water dispenser area. Replace if light is dim, flickering, or out. Confirm fit with your model number.
