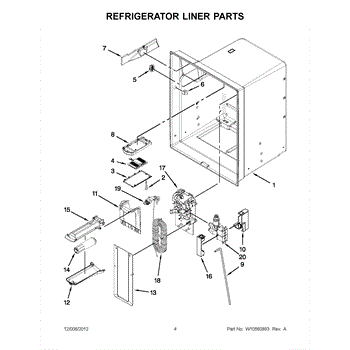

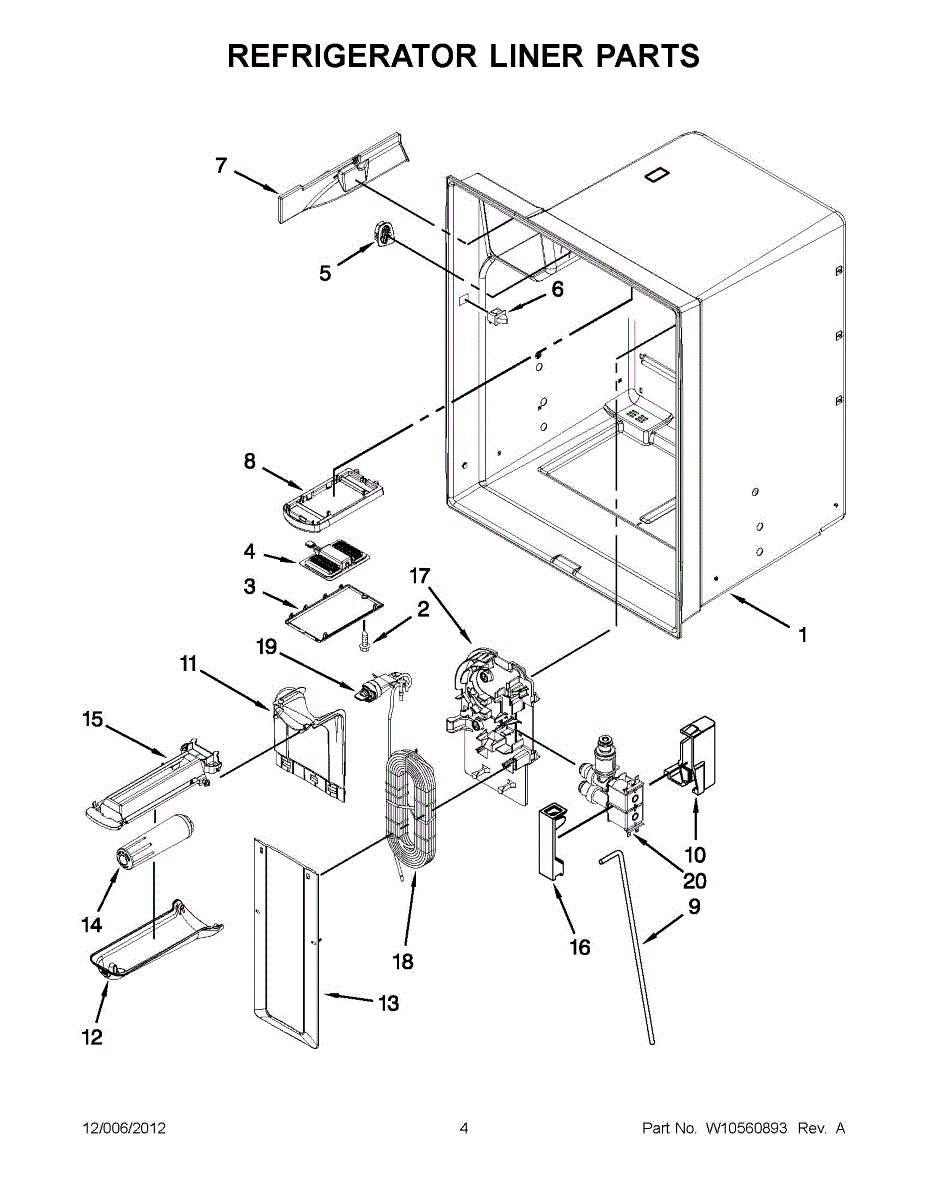

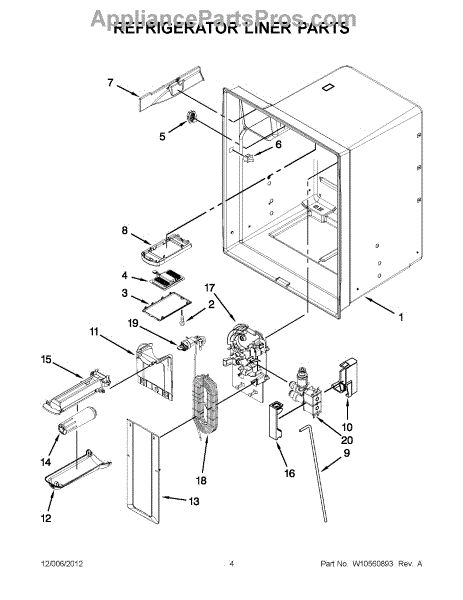

Parts for Kitchenaid KFXS25RYBL5: 02 - Refrigerator Liner Parts

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

Clear light lens cover that protects and diffuses your refrigerator's interior bulb. Replace when cracked, yellowed, or missing to restore bright, even lighting and shield the bulb from spills.

This electronic control board is the appliance's central command module, managing power and timing to motors, valves, heaters, and sensors. Replacing a failed board restores consistent operation and responsive controls when the original becomes intermittent or unresponsive.

• Directs and times appliance operations based on user selections and sensor feedback
• Switches power to loads via relays/triacs to run motors, valves, heaters, and fans
• Monitors inputs and stores fault data; may trigger error codes or indicator lights
• Typical failure signs: won't start or run, dead/blank display, unresponsive controls, stops mid-cycle, random beeping/error codes

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Use ESD protection and handle the board by its edges to avoid static damage
• Photograph wiring and transfer connectors one at a time; ensure all locks are fully seated
• Follow the model's tech sheet/service manual for any required setup, diagnostics, or calibration after installation

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

Ice maker wiring exposed or damaged? This wire cover shields the harness inside your freezer. Simple snap-in installation takes minutes to secure wiring.

Housing cover for bottom-mount refrigerators. Replaces cracked, broken, or missing plastic housing. Installs inside refrigerator compartment.

Fixes leaking or kinked water lines causing ice maker not filling or dispenser issues. Restores safe water flow between valve, filter, and dispenser.

Replacement water filter cover for refrigerators. Snaps into place to protect and secure the water filter. Replace if cracked, broken, or latch damaged.

Replaces a cracked, broken, or missing upper water reservoir cover in your refrigerator. Keeps the water tank sealed and prevents spills into compartments.

Mounts the water filter base to the refrigerator cabinet. Replace this bracket if cracked, broken, or missing to keep the filter housing secure and aligned.

Internal mounting bracket for bottom-mount refrigerators. Secures components in place. Replace if cracked, bent, broken, or missing to restore proper fit.

The Reservoir is a Whirlpool OEM replacement part for Whirlpool side-by-side refrigerators. This assembly does include the filter head. The filter head connects the external filter cartridge to the internal reservoir. The reservoir holds filtered water that is dispensed from the external door dispenser.

Causes can be normal wear to sealing components, cracks in plastic from repeated pressure changes, or mineral buildup affecting water flow.

Symptoms of a problem include:

• Prematurely lit filter change indicators
• Water dispenser flow slowing or stopping over time
• Gradual decline in ice production amounts
• Noticeable sediment or particles in dispensed water

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Some Kenmore models.

Bypass cap replaces water filter when filtration isn't needed. Install when using RO system or preferring unfiltered water. Confirm fit with your model.

Ice maker not making ice or water dispenser not working? This refrigerator water inlet valve controls water flow. Common DIY fix, 30-60 min install.
