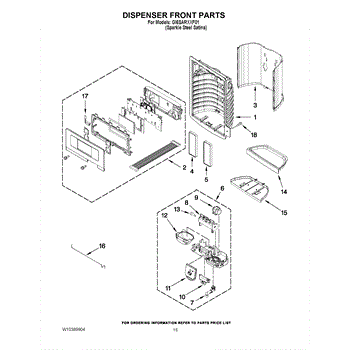

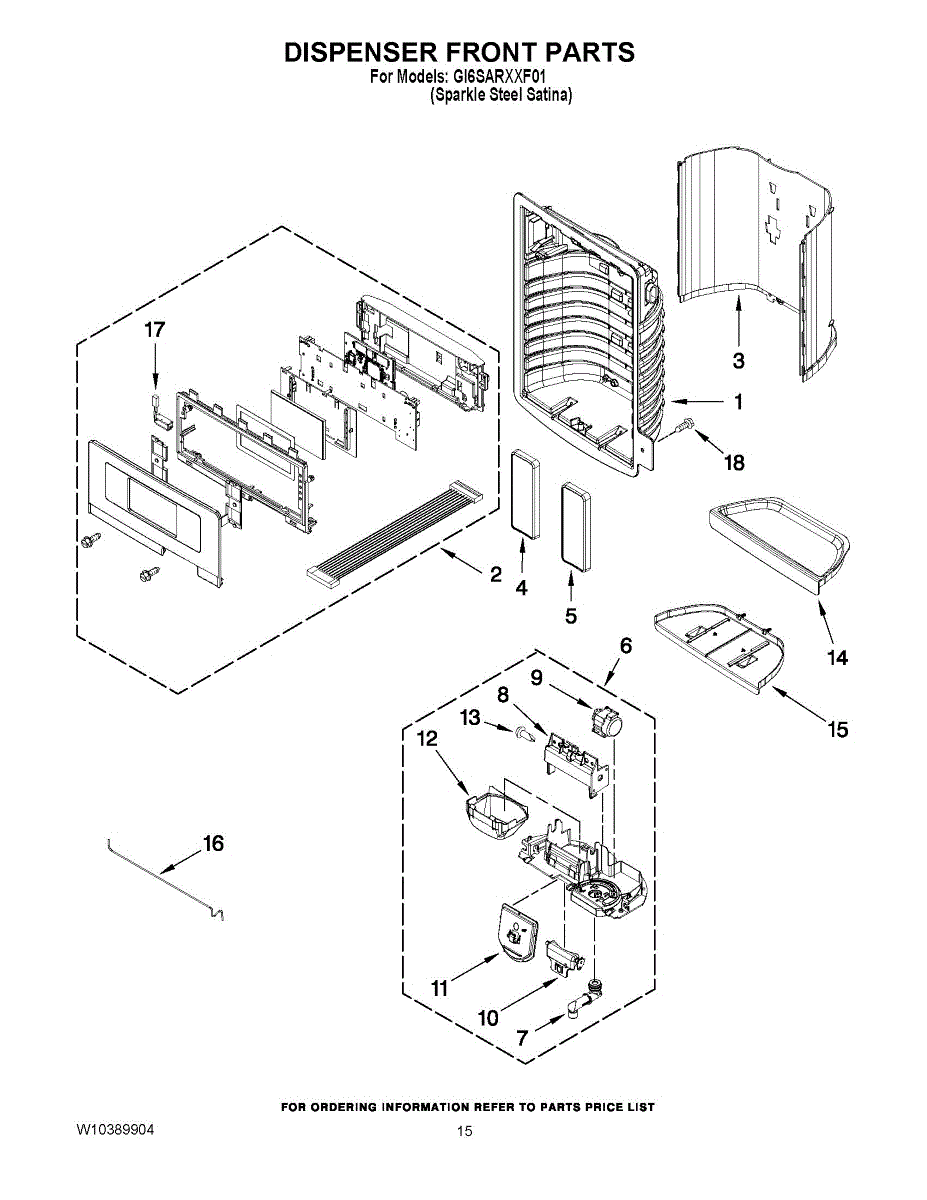

Parts for Whirlpool GI6SARXXF01: 08 - Dispenser Front Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Fix a refrigerator with no ice or water dispensing, erratic controls, or unit won't run. This electronic control board restores function in minutes.

Replace a cracked or broken shield guard in your refrigerator. This protective cover installs to guard internal components from damage or wear.

Replacement dispenser actuator pads for refrigerator ice and water controls. Installs on dispenser housing. Replace if cracked, broken, or worn.

Replacement dispenser actuator pads for refrigerator ice and water controls. Installs on dispenser housing. Replace if cracked, broken, or worn.

This spigot routes water from the internal supply to the dispenser outlet, delivering a controlled stream. Replacing a cracked or worn spigot helps restore proper dispensing and reduces drips or leaks at the dispenser area.

• Directs water from the internal tubing/reservoir to the dispenser outlet
• Maintains a defined flow path to help prevent splashing and after-drip
• Common symptoms of failure: dripping at the dispenser, slow/erratic flow, leaks inside the door, or visible cracks at the outlet
• Replace if damaged, leaking, or obstructed by mineral buildup

• Unplug the appliance and shut off the household water supply
• Dispense water to relieve line pressure before replacement
• Access the dispenser; note tubing orientation and fully seat/secure connections
• Restore water and power; flush the system and check all joints for leaks

Mounting bracket secures internal refrigerator components for stable alignment. Replace if cracked, bent, or broken to restore proper support and positioning.

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Refrigerator mounting clip secures components in place. Replace if broken, loose, or missing to prevent rattling and ensure proper part alignment.

Catches drips and splashes in the dispenser recess of your refrigerator door. Replace if cracked, stained, or missing to keep the front panel clean.

This slide tray is the removable drip tray that catches spills and condensation from the refrigerator dispenser, keeping the cabinet floor and shelf area clean and dry. It slides out for quick cleaning and maintenance. What it does:

• Collects drips and overflow from the water/ice dispenser to prevent puddles under the dispenser
• Slides outward for easy access when wiping up spills or removing debris
• Re-seats into the dispenser assembly to maintain proper alignment and coverage
• Helps reduce need for frequent cleanups and keeps the dispenser area sanitary

• Disconnect power and turn off the water supply before servicing dispenser components
• Remove old tray by sliding it out; align new tray and slide in until it clicks or seats firmly
• Use only gentle pressure—do not force or pry parts into place
• If tray doesn't seat correctly, check for obstructions or damaged mounting tabs before operating

Illuminates your refrigerator's ice and water dispenser area. Replace if light is dim, flickering, or out. Confirm fit with your model number.

This factory screw secures panels, brackets, and other components in your appliance. Replace a missing, stripped, or corroded fastener to restore a tight fit and keep parts properly aligned and rattle-free.

• Secures appliance components and panels in their mounting points
• Replaces damaged, stripped, or missing hardware
• Helps reduce rattling or vibration from loose parts

• Disconnect power; shut off water or gas supplies if applicable
• Match location with the original screw; start threads by hand to avoid cross-threading
• Tighten until snug; do not over-torque, especially into plastic or thin metal
• Reinstall any covers or panels and test for secure fit
