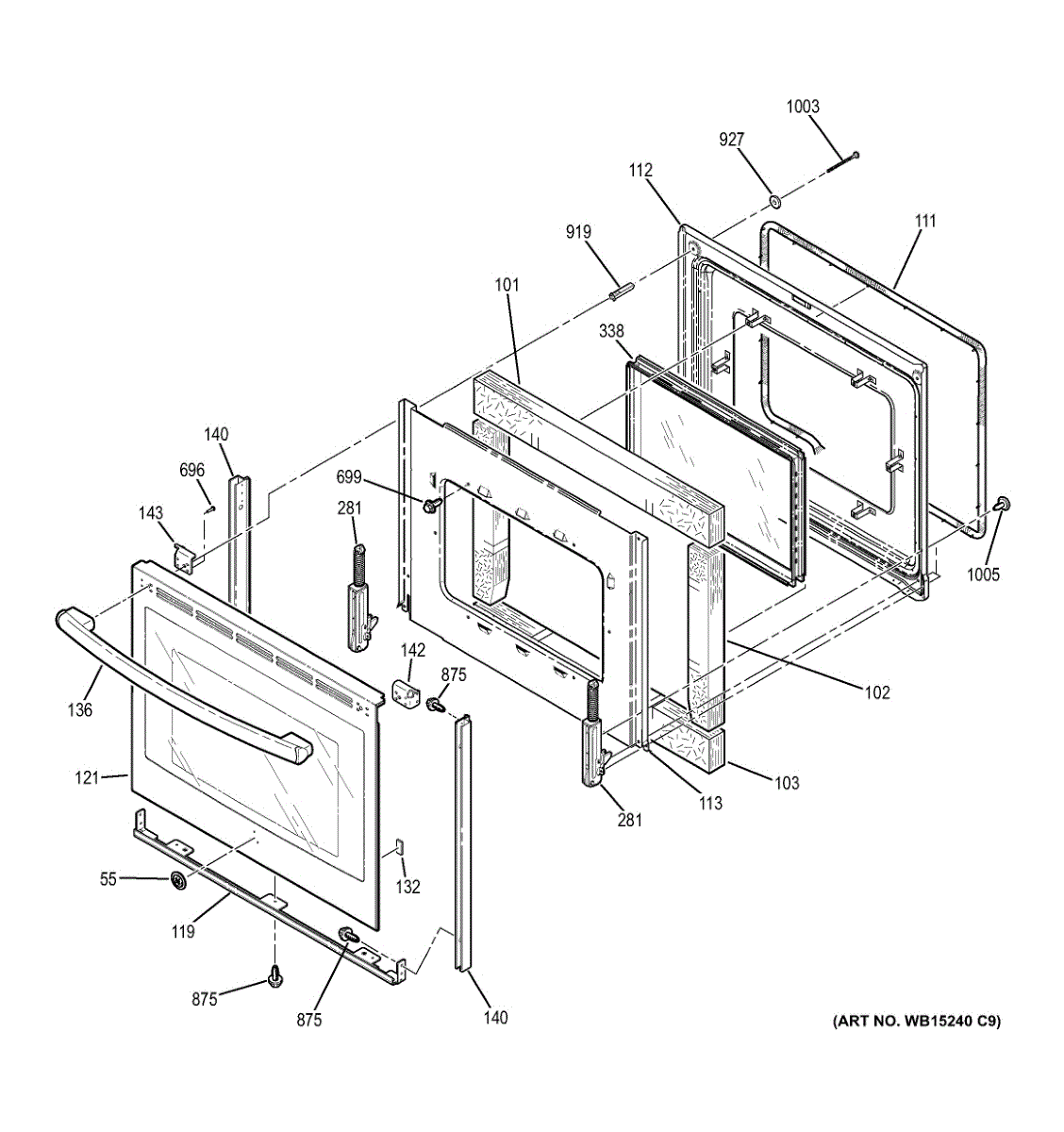

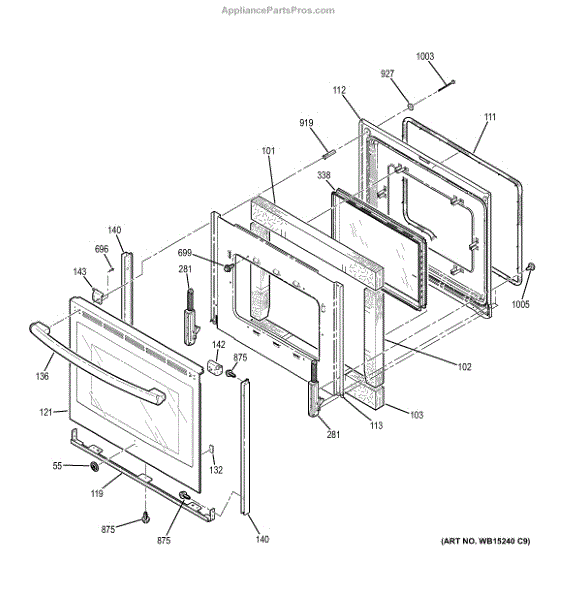

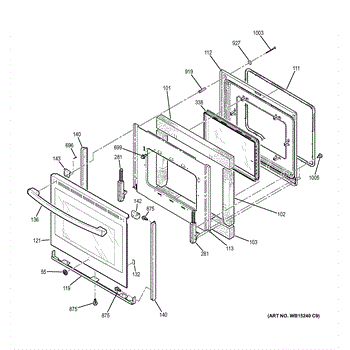

Parts for Ge JB690SF4SS: Door Parts

Decorative badge emblem that mounts on range control panel or door. Restores appliance exterior appearance when original is faded, scratched, or missing.

Replaces brittle, burned, or grease-soaked insulation inside your oven door. Restores the thermal barrier to reduce heat loss and exterior heat.

Insulation pad that lines the inside of your range oven door. Replace if torn, burnt, saturated, or missing to restore thermal barrier performance.

If your oven door exterior gets too hot or temperature fluctuates, this inner door insulation pad blocks heat transfer. Fits behind the inner panel.

Seals oven cavity to prevent heat loss during baking and broiling. Replace if worn, cracked, or heat escapes around door. Verify fit by model number.

Replace your range's cracked or damaged oven door liner assembly. Restores the inner door surface, protects insulation, and maintains proper fit.

Retains oven door insulation in place on electric ranges. Replace if cracked, broken, or missing to secure door insulation and maintain proper fit.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

Replace your broken or cracked range oven door handle and end cap assembly. Includes the door handle and decorative end caps for secure mounting.

Secures exterior trim to your range door on the right side. Replace this bracket if cracked, broken, or missing to restore a flush, finished look.

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Replace worn, damaged, or broken range door hinges. Installs on both ends of the oven door to enable smooth opening and closing. Essential when hinges fail.

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

Includes 12 washers.

10-32 threaded screw secures control panels, brackets, and internal components in electric ranges. Replace when stripped, missing, or loose.
