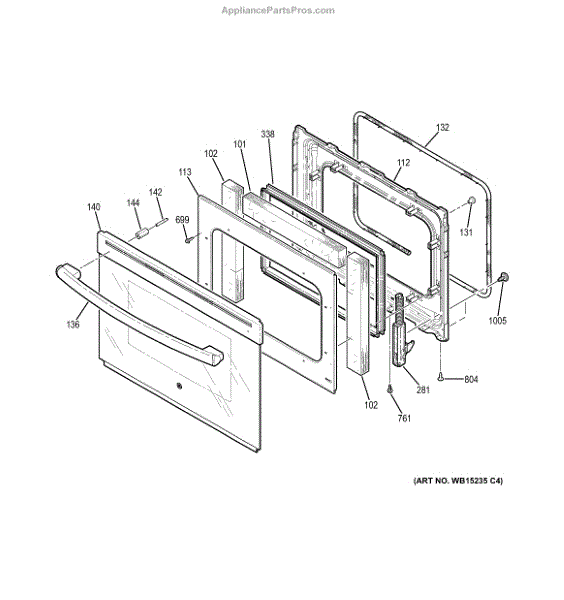

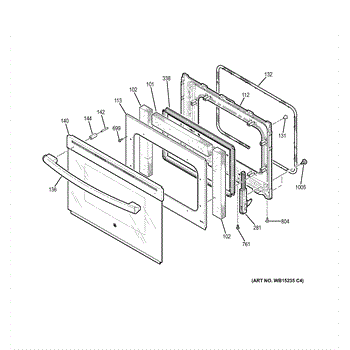

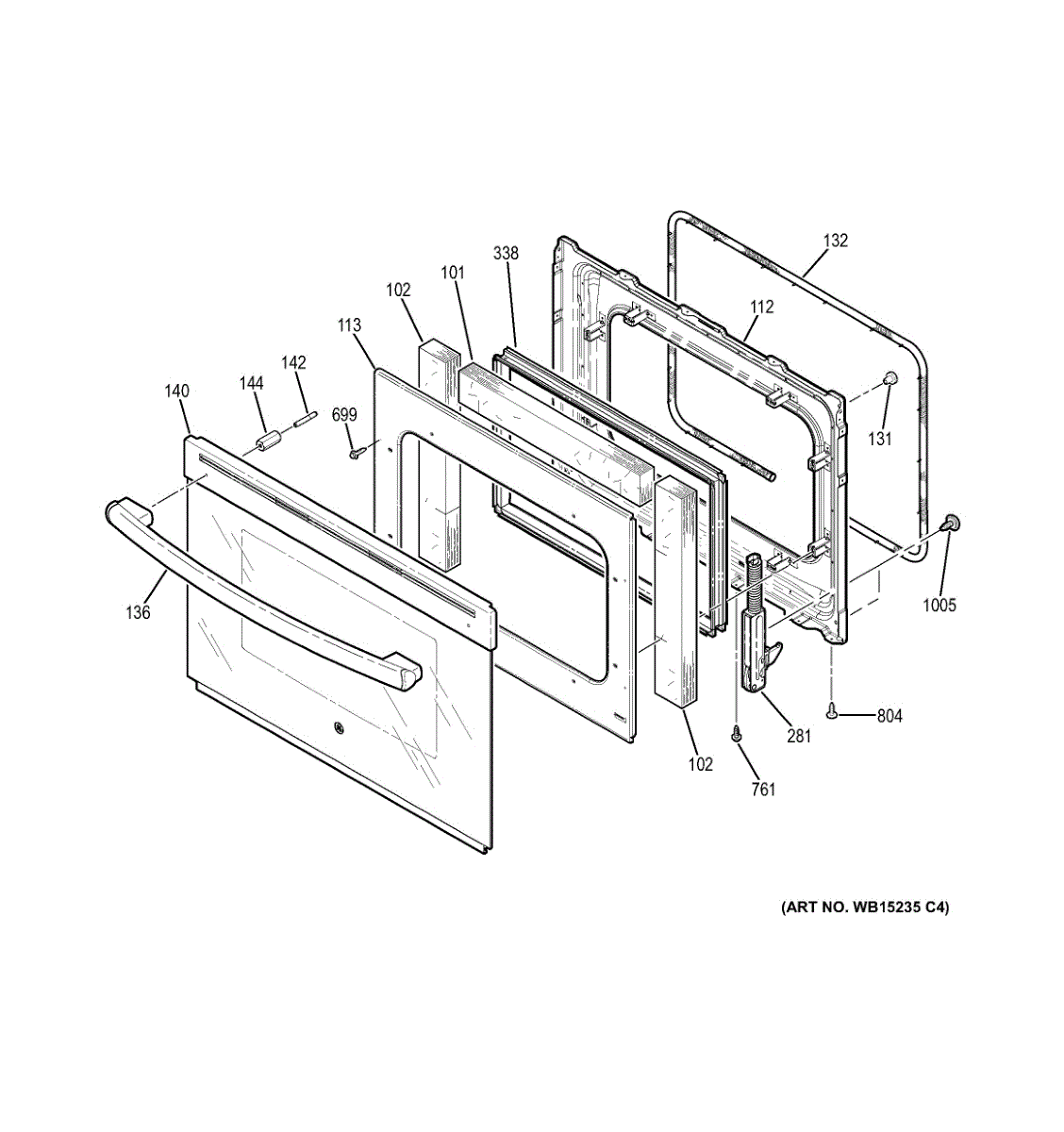

Parts for Ge JS630DF3CC: Door Parts

Thermal insulation pad that installs inside the range oven door. Replace if torn, compressed, missing, or no longer retaining heat effectively.

Thermal insulation that fits between inner and outer oven door panels along the side edge. Replace when burnt, brittle, cracked, or missing from wear.

Replaces the inner oven door panel that protects insulation and secures the glass. Install when damaged, warped, or rusted to restore a proper seal.

Secures insulation inside the oven door to prevent shifting and maintain heat containment. Replace if clip is cracked, broken, or missing.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

Composite support stud mounts on your cooktop to provide a stable resting point for the burner grate. Replace if cracked, broken, or missing.

Reinforced support bracket that maintains proper component alignment in your oven. Replace if the original spacer is cracked, broken, or missing.

Left-side oven door hinge that secures and pivots the door for smooth opening and proper alignment. Replace if cracked, bent, or loose to restore stable operation.

This right-side refrigerator door hinge provides a secure pivot for the door, restoring proper alignment and smooth opening. It replaces worn or bent hinges to reduce scraping and uneven sealing for better cold retention. What it does:

• Supports the refrigerator door on the right side and lets it pivot smoothly.
• Restores proper door alignment to help ensure a consistent seal and prevent gaps.
• Reduces rubbing, sticking, or noisy movement caused by worn or bent hinges.
• Helps prevent premature wear of the door and cabinet mating surfaces.

• Basic mechanical skills and common hand tools are required; remove power to the appliance before starting any repair.
• Support the door while removing or installing the hinge to prevent injury or damage.
• Tighten mounting fasteners to secure fit; avoid over-tightening which can strip screws or deform the hinge.

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

ST10-16 X 7/16"

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
