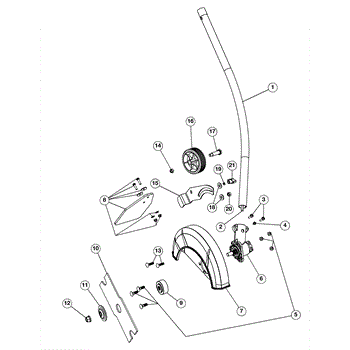

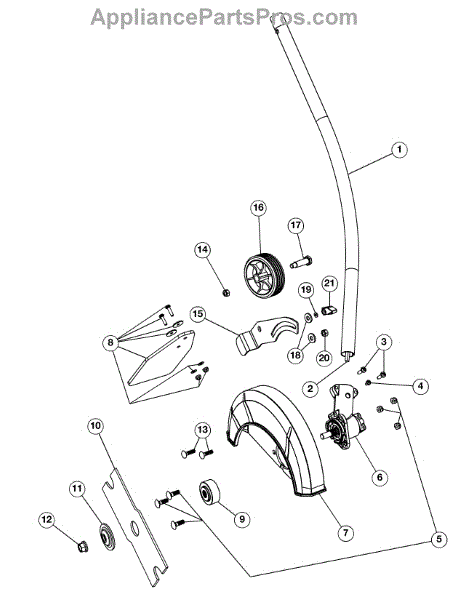

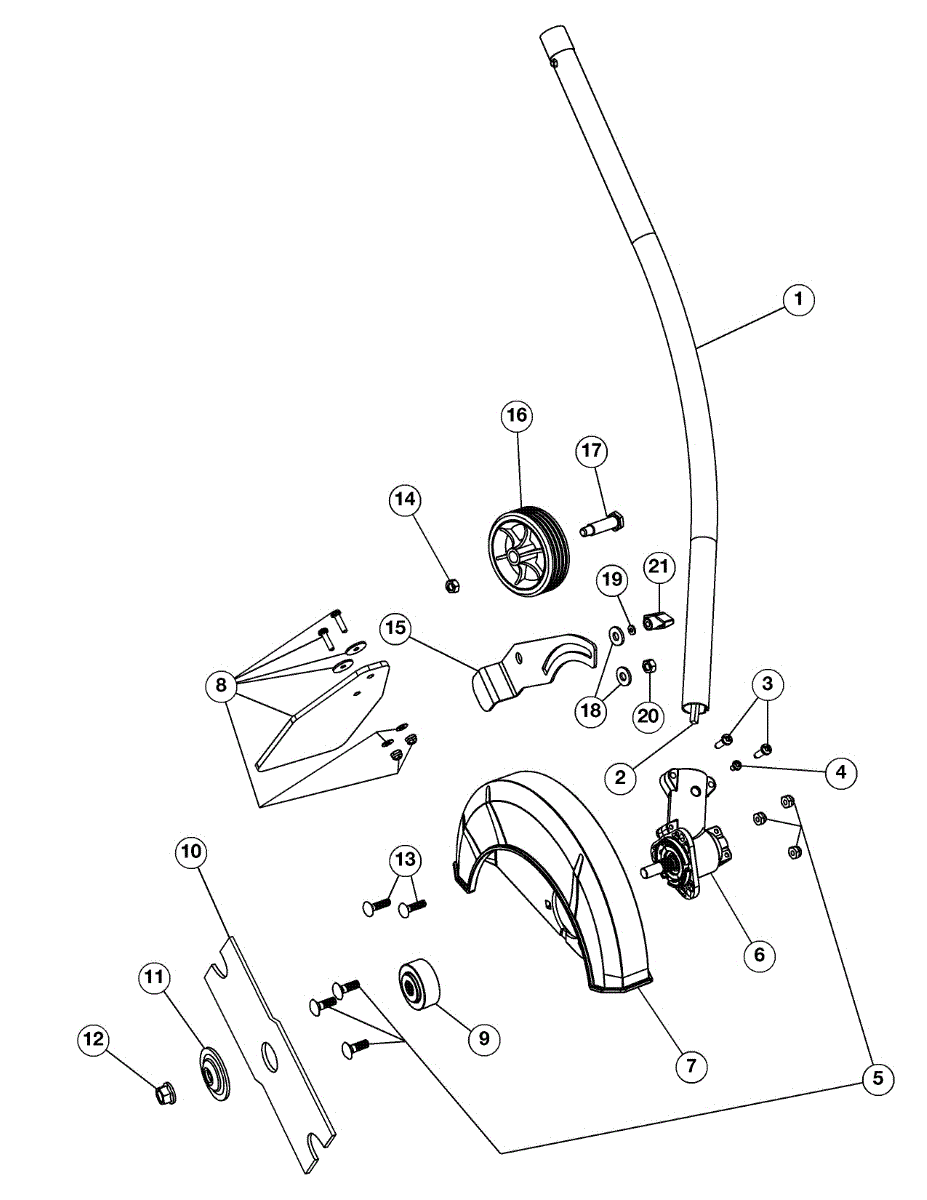

Parts for Craftsman 41ADZ2CC799 / 2012: Edger Attachment Parts

Boom assembly for gas line trimmers. Connects the engine housing to the cutting head. Replace if cracked, bent, or damaged from impact or wear.

Lower flexible drive shaft for line trimmer attachments. Mounts inside the lower boom housing to drive the trimmer head. Replace when worn round or cracked.

Replacement screw for lawn tractors, tillers, and trimmers. Used throughout various assemblies. Replace if lost, stripped, or damaged during repairs.

This is a genuine replacement screw designed for use in select MTD engines on lawn and garden equipment. Specifically, this is an anti-rotation screw, which is used to stop the drive shaft housing from turning inside of the main housing assembly. This screw is a small part that is subject to constant vibrations, pressure, and high temperatures. It can sometimes become worn or damaged as a result or even break off entirely, which would mean that the inner housing would no longer be held in place accordingly. If this screw is damaged or lost, it needs to be replaced with a genuine OEM replacement as soon as possible. This MTD anti-rotation screw is manufactured with high-quality materials and designed for use in select trimmers from MTD, RYOBI, Yard-Man, Troy-Bilt, Murray, Cub Cadet, Yard Machines, and Bolens. This replacement will require a screwdriver. Simply remove the damaged screw, if it is not already missing, from the clutch cover assembly, and then install the new screw. It should only take a few minutes to perform the replacement. Be sure to wear gloves to protect the hands. This screw is sold individually and does not include any additional parts or hardware.

This replacement part is a blade guard, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This blade guard is typically found in edgers and is used to shield the blade so that if something where to happen during use, the person using the appliance and those in the vicinity will be protected from the open blade. A new blade guard might be needed if the current one is damaged or missing from the appliance. If the blade of the edger is completely exposed it is recommended that a replacement blade guard be installed as soon as possible. This part is used to protect the user and those around them while using the appliance.This blade guard is sold individually and is a genuine OEM part. Be sure to wear gloves while attempting to replace this part as the user will be working close to the blade of the appliance.

Edger blade for line trimmers cuts clean edges along sidewalks and driveways. Replace when dull or worn for best results. Verify fit with model number.

Blade clamp washer secures the cutting blade on gas line trimmers. Replace if worn, cracked, or missing to ensure safe blade attachment. Verify fit.

This is a blade lock nut that is typically a component of string trimmers and edgers. The blade lock nut ensures the cutting blade is securely attached to the shaft of the trimmer. If the nut is corroded, broken, or has come loose, it will need to be replaced. The equipment should not be operated without this nut since other components could come loose and fall off.This is a simple part to replace and will require only a wrench or a socket set. This nut is located on the spindle, so a visual inspection can be done to ensure it is damaged or broken. Remove it and thread the new blade lock nut to the same location. If the nut is stripped, a bolt remover can be used to get it off of the lawn equipment.This blade lock nut is sold as an individual part. It is an authentic OEM replacement part that is sourced directly from the manufacturer. The part is made to fit a variety of edgers and string trimmers manufactured by Craftsman, Cub Cadet, MTD, Ryobi, and Yard Machines.

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.
