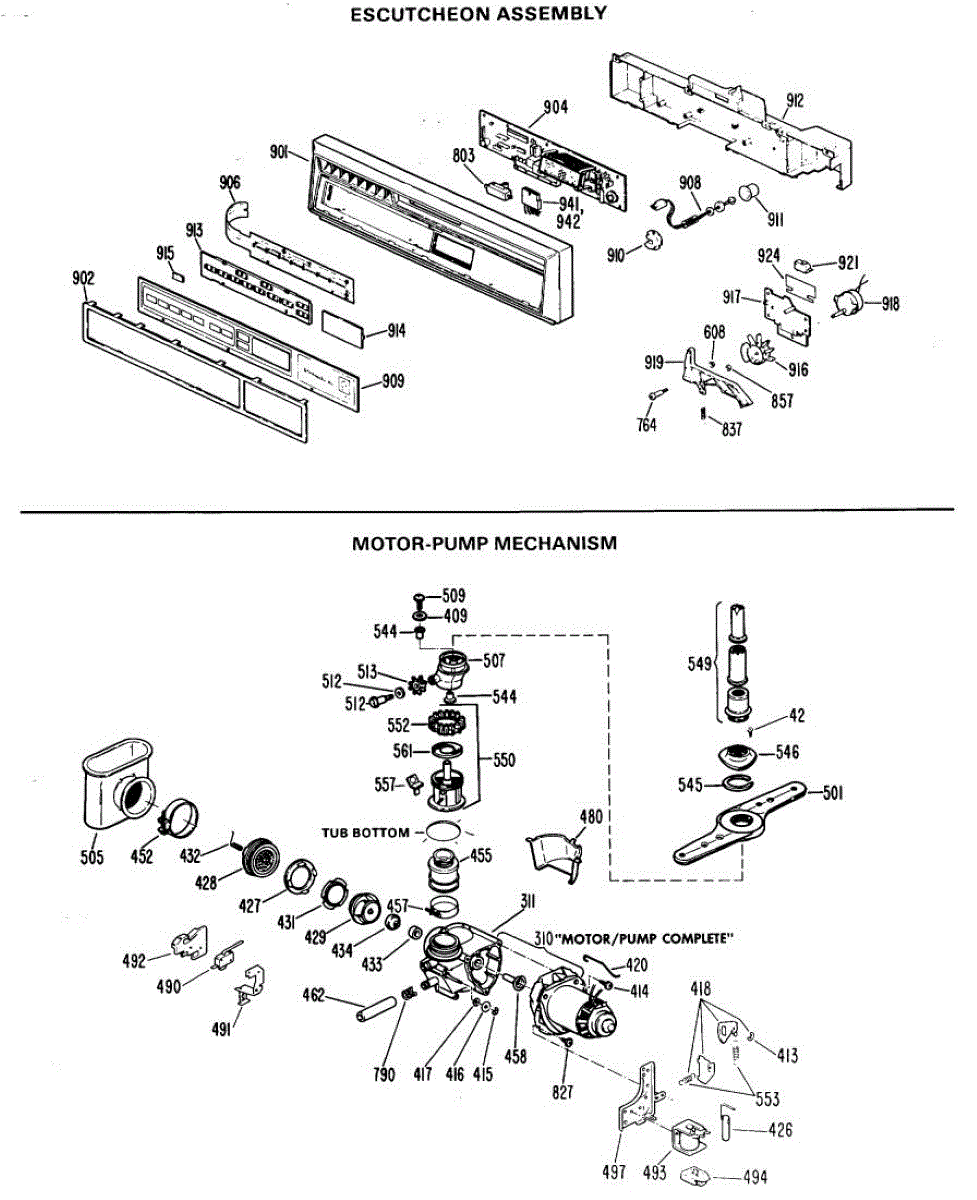

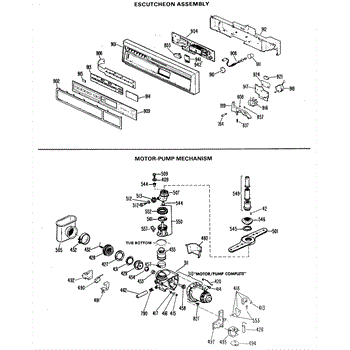

Parts for Ge GSD2200G03: 02 - Escutcheon Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Dishwasher not draining or leaving water in the bottom? This pump and motor assembly circulates and drains water. 2-hour DIY repair with video guide.

C-clip retainers secure components in your dishwasher or range. Replace when clips are loose, broken, or missing to prevent rattling and parts shifting. Verify fit with your model number.

This kit fits both D style and T style shafts.

Fix a dishwasher that won't drain or keeps draining during fill. This solenoid armature controls the drain valve. DIY repair in about 45 minutes.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Secures dishwasher sump to tub, maintaining seal compression to prevent leaks. Replace if corroded or weak. Confirm fit with your model number.

This has male threads. For female threads use WD18X214

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Deflector guard for dishwasher spray arm assembly. Replaces cracked, broken, or missing deflector shields. Mounts to spray system to direct water flow.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

Fix a dishwasher that won't drain or drains constantly during wash cycles. This drain solenoid valve controls water drainage timing. Moderate DIY repair.

Fix dishwasher leaks or poor cleaning with a new sump cap. Seals the sump opening to contain wash water and protect the pump. Quick DIY replacement.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Size: 10-12 x 1/2 inch.

This molded switch insulator protects and positions a control switch by keeping wiring and terminals electrically isolated from the appliance cabinet. It helps restore proper switch fit and prevents shorting or chafing of switch wiring. What it does:

• Keeps switch terminals and wiring insulated from metal chassis to prevent electrical contact
• Holds the switch securely in its mounting location for reliable operation
• Helps stop arcing, burning marks, or intermittent switch function caused by a damaged insulator
• Restores correct clearance between the switch and surrounding components

• One switch insulator

• Disconnect power to the appliance before starting any repair
• Typically presses or clips into place around the switch housing; no wiring changes required
• Inspect switch and wiring for damage while replacing the insulator; replace any damaged components

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
