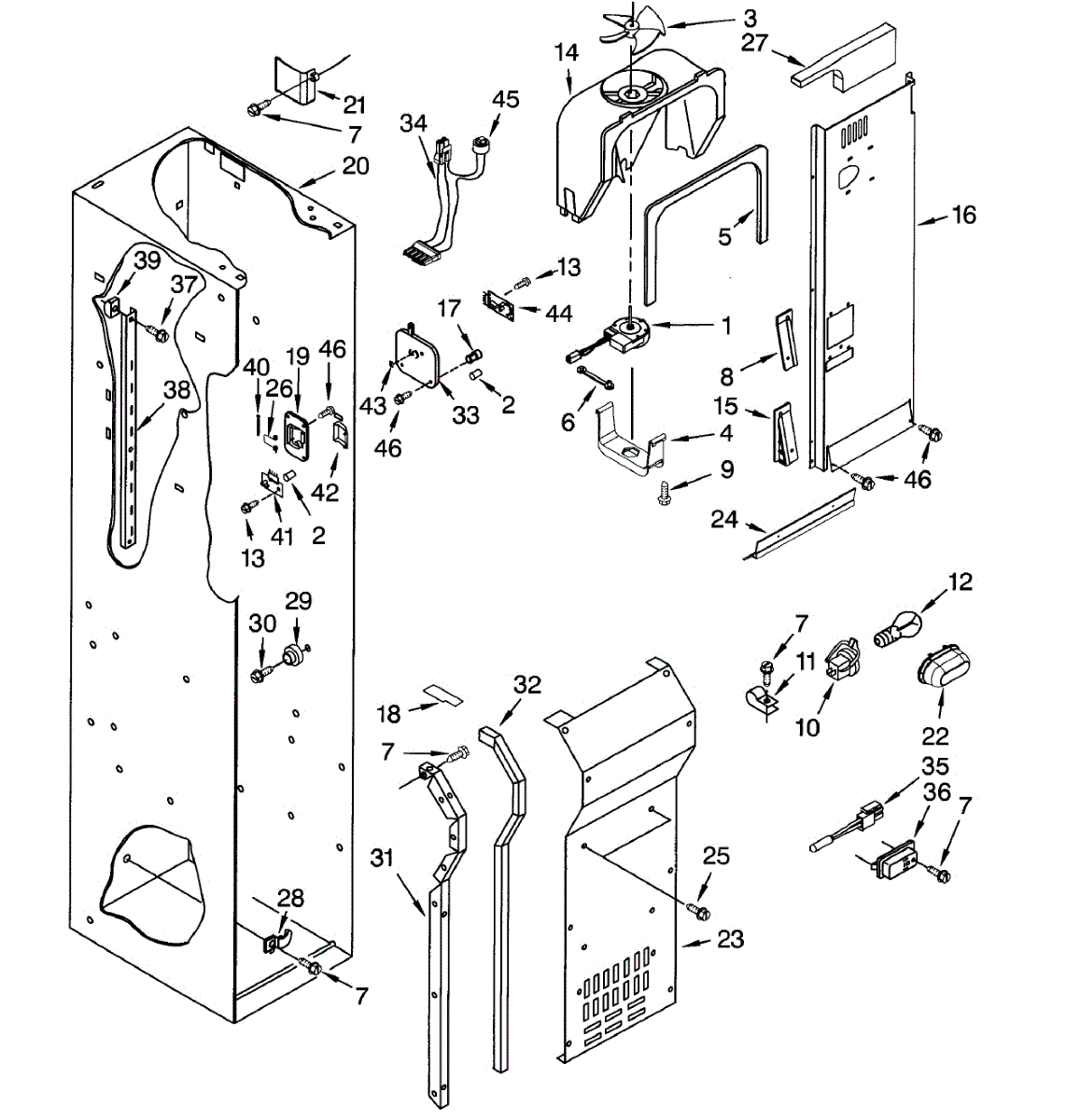

Parts for Dacor EF42DBSS: Freezer Liner Parts

If your fridge isn't cooling or freezer is making loud noises, the evaporator fan motor may have failed. Moderately easy DIY repair with video guide.

Water supply tube for refrigerators. Connects water line to dispenser or ice maker. Replace if cracked, leaking, kinked, or damaged to restore proper flow.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Instruction sheet included.

Replace your refrigerator door gasket to restore proper sealing and energy efficiency. Prevents warm air leaks and frost buildup. Verify fit with model.

Instruction sheet included.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Air duct wedge for side-by-side refrigerators. Secures and positions air duct assembly in place. Replace if cracked, broken, or missing.

Screw: 8-16 x 3/8 inch.

Light bulb socket holds and powers the bulb inside your refrigerator. Replace if lights don't work despite new bulbs or if socket is cracked or damaged.

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

6 - 19 x .250

Fixes uneven cooling and warm refrigerator temperatures caused by poor airflow. This fan housing directs cold air from freezer to fridge. Easy 30-minute fix.

Refrigerator air duct that directs cold air throughout the fresh food compartment. Replace if cracked, broken, or missing to restore proper airflow.

This replacement receiver lens covers and protects the appliance's infrared/receiver area and indicator light while allowing signals and status lights to show through clearly. It restores proper protection and visibility for the sensor/indicator assembly. What it does:

• Protects the IR/receiver and indicator area from dust, spills, and impact
• Allows remote/IR signals and indicator lights to pass through without obstruction
• Replaces cracked, discolored or missing lens that can hide status lights or reduce signal clarity
• Helps maintain original appearance of the control/console area

• Disconnect power to the appliance before beginning any repair.
• Remove the control console or front panel per the service manual to access the lens.
• Handle the lens gently to avoid scratching; seat it into the bezel until it snaps or rests securely.

Left hand side

Foam air baffle block that installs between the evaporator fan housing and side wall. Replace if cracked, broken, or missing to restore airflow.

Air outlet cover for side-by-side refrigerators. Installs over internal air vent to direct cold air. Replace if cracked, broken, or missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Fix ice clumping and frost buildup in your dispenser chute. This flipper spring returns the ice door to closed position, keeping warm air out. Easy DIY fix.

Replacement support stud that holds refrigerator shelves securely in place. Needed when original peg is broken, cracked, or missing from shelf wall.

Replacement #8-18 screw for securing panels, brackets, and components in appliances. Restores worn, stripped, or missing fasteners for safe mounting.

Left hand side

Right hand side

Seals the evaporator cover to the cabinet, preventing air leaks and frost buildup. Replace if you notice excessive frost or cooling issues. Verify fit.

Factory-style wire harness that routes power between refrigerator components. Replaces damaged, broken, or worn wiring and connector assemblies.

Refrigerator not cooling properly or freezing food? This temperature sensor thermistor monitors internal temps and signals the control board. DIY fix.

Fix inaccurate cooling or freezing issues with this refrigerator temperature sensor. Sends temperature data to the control board for proper regulation.

This replacement screw secures appliance panels and components to restore proper fit and stop loose or rattling parts. A simple, OEM-compatible fastener that helps maintain safe, stable operation and original assembly alignment. What it does:

• Secures panels, trim, brackets or components to prevent movement and vibration
• Restores proper fit when a screw is missing or stripped
• Helps eliminate rattling, gaps, or misaligned parts
• Fits the OEM threaded holes and fastening points

• Disconnect power (and gas if applicable) before accessing internal components
• Use the correct driver to avoid stripping the head; hand-start threads before final tightening
• Do not overtighten—stop when snug to avoid damaging threads or plastic parts
• Keep removed hardware organized to ensure correct reassembly

Ice maker not dispensing or flipper assembly loose? This small pin secures the flipper emitter mechanism for reliable ice dispensing. Simple fix.

The Ice Level Power Control Board Kit is an OEM part for Whirlpool refrigerators. This control board is essential for managing the ice maker’s operations, including monitoring the ice level and controlling the ice production cycle. The ice level control plate works in conjunction with the ice level control board. The board uses an infrared beam to sense the ice bucket's level and signals the ice maker accordingly. If the control board fails, the ice maker will cease producing ice.

You should replace the ice level power control board if it becomes faulty or malfunctions. Causes of a bad control board can include electrical issues, wear and tear over time, or damage due to power surges or short circuits.

Symptoms of a bad ice level power control board include:

• Ice maker not producing ice
• Ice maker not stopping production when full
• Intermittent or irregular ice production
•  Error codes related to the ice maker control system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Protective cover for the ice maker's infrared emitter sensor in the freezer compartment. Replace if cracked, broken, or missing to shield the sensor.

This slide is the replacement rack or drawer support that restores smooth, stable movement and keeps interior racks or drawers aligned. It helps parts glide in and out without binding or sagging. What it does:

• Replaces a worn or broken rack/drawer support to restore smooth sliding motion
• Keeps the rack or drawer level and prevents tilting or falling when extended
• Reduces noise and binding from damaged or loose slide hardware
• Commonly replaced when drawers or racks stick, sag, drop, or slide unevenly

• One replacement slide

• High-level home repair — unplug the appliance or shut off power before working near electrical components
• Remove the rack/drawer and follow OEM instructions for accessing and fastening the slide
• Use basic hand tools; keep fasteners and clips from the old slide to match new installation
• If the slide secures to water or electrical assemblies, turn off the water or power and consult the OEM guide.

The Ice Level Power Control Board Kit is an OEM part for Whirlpool refrigerators. This control board is essential for managing the ice maker’s operations, including monitoring the ice level and controlling the ice production cycle. The ice level control plate works in conjunction with the ice level control board. The board uses an infrared beam to sense the ice bucket's level and signals the ice maker accordingly. If the control board fails, the ice maker will cease producing ice.

You should replace the ice level power control board if it becomes faulty or malfunctions. Causes of a bad control board can include electrical issues, wear and tear over time, or damage due to power surges or short circuits.

Symptoms of a bad ice level power control board include:

• Ice maker not producing ice
• Ice maker not stopping production when full
• Intermittent or irregular ice production
•  Error codes related to the ice maker control system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix frost buildup and warm fridge temps. This defrost thermostat monitors evaporator temperature to prevent overheating during defrost cycles.

Replacement screw that fastens panels, brackets, and internal components. Install when original is stripped, rusted, missing, or lost during repairs.
