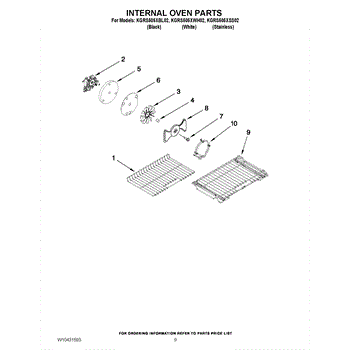

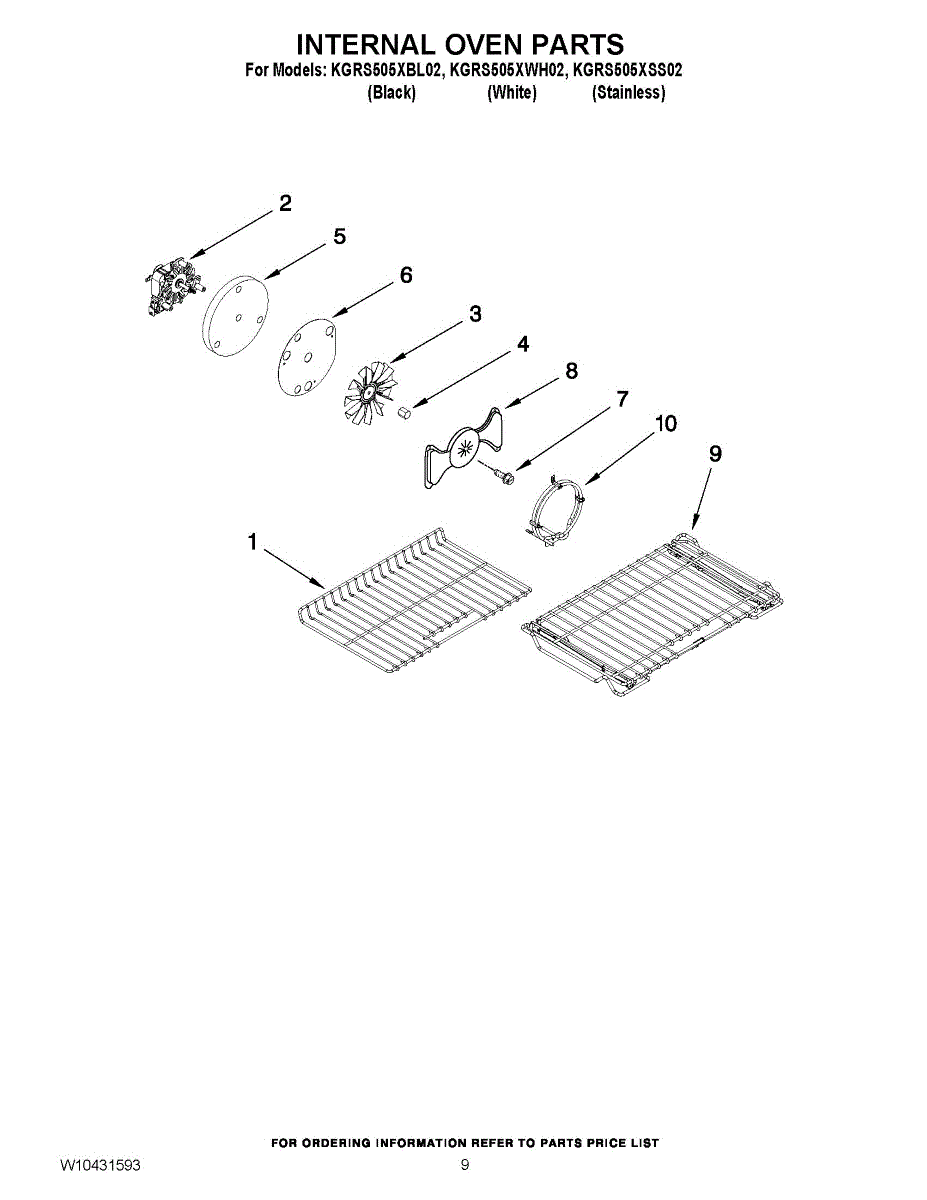

Parts for Kitchenaid KGRS505XSS02: 07 - Internal Oven Parts

Replace your warped, discolored, or damaged oven rack. This steel rack installs inside the oven cavity to support cookware during baking and roasting.

This replacement fan motor restores proper airflow for your appliance's ventilation/cooling system so the unit can run efficiently and avoid overheating. Designed as a direct-fit replacement for the OEM fan motor part number shown. What it does

• Spins the blower/fan to circulate air across coils or through the appliance cabinet
• Helps maintain proper cooling and prevents overheating of components
• Can reduce or eliminate loud whine, grinding, or reduced airflow when failing
• Supports stable operation of compressors, condensers or exhaust systems

• Disconnect power to the appliance before starting any repair.
• Follow service manual instructions for access; remove panels/guards as needed.
• Handle the motor and connectors carefully; support any attached fan or housing during removal.
• After installation, verify proper fan rotation and unobstructed airflow before reassembling covers.

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

Replaces worn or damaged insulation on your range oven door. Installs between door panels to improve heat retention and reduce noise.

Mounting bracket for electric and gas ranges. Secures components in place. Replace if bracket is bent, cracked, or missing for proper installation.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Metal shelf that slides into your oven cavity to hold cookware during baking. Replace if rack is rusted, warped, bent, or damaged from high-heat use over time.
