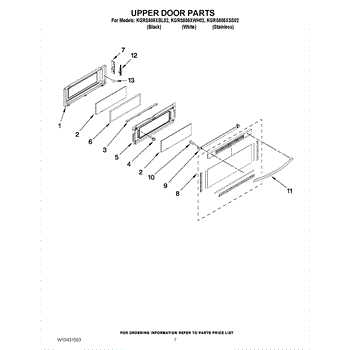

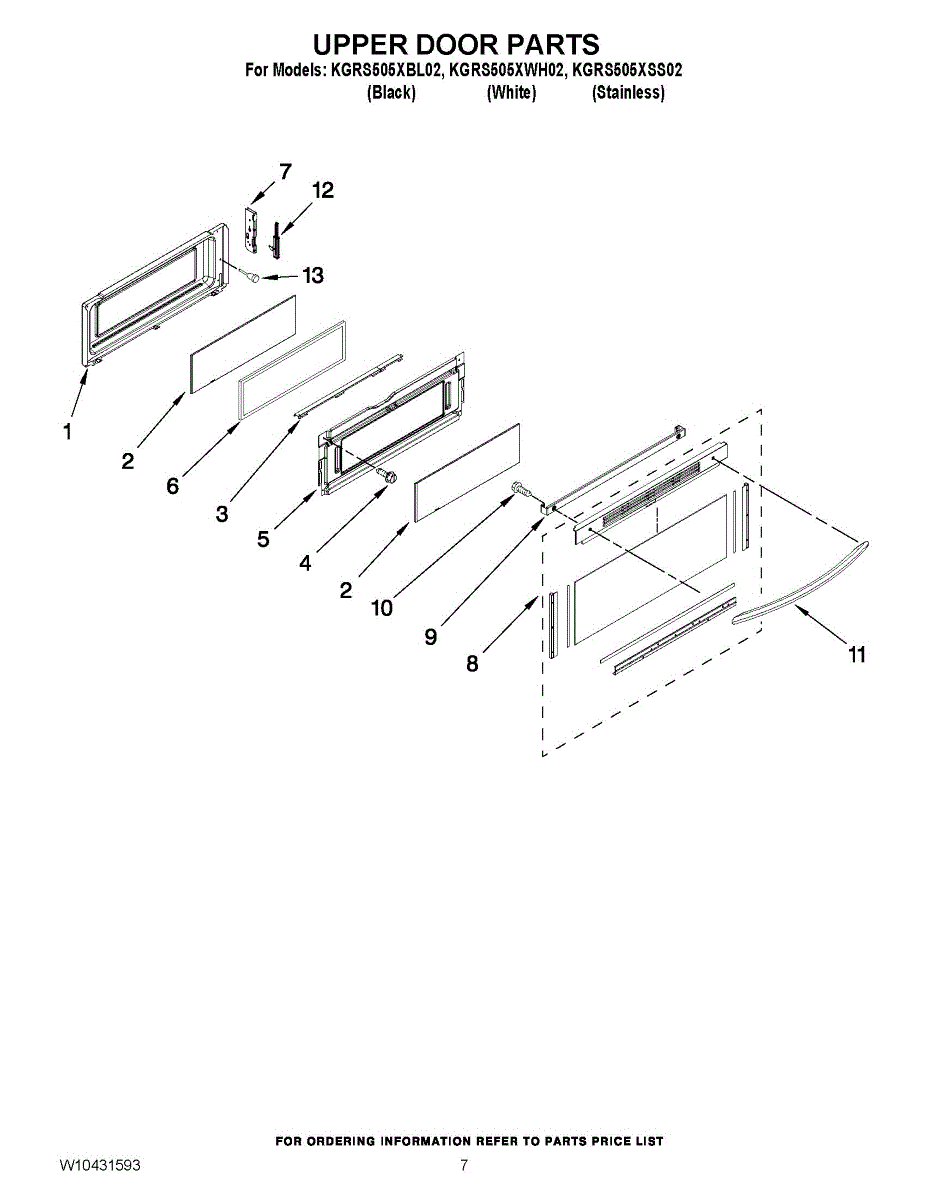

Parts for Kitchenaid KGRS505XSS02: 05 - Upper Door Parts

Replacement door glass for ovens and ranges. Restores clear viewing window when original is cracked, shattered, or damaged. Fits between door panels.

Upper door frame glass for oven door window. Replaces cracked, fogged, or broken upper glass section. Restores clear viewing of cooking progress.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

If your oven loses heat or runs longer than normal, this door insulation restores the thermal seal. Moderately easy repair for most DIYers.

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

Color: Black

Color: White

Color: Stainless

Mounting bracket for range installation. Secures appliance to cabinet or wall. Replace if bracket is bent, broken, or missing during installation.

Replacement screw secures door handles, panels, and brackets on your range or oven. Install when original screws are stripped, missing, or damaged during repairs.

White range door handle for opening and closing your oven. Replace this cosmetic part if your current handle is cracked, broken, discolored, or missing.

Black range door handle for your oven. Replace a cracked, broken, or missing handle. Mounts to the front of the oven door for opening and closing access.

Stainless steel door handle for gas ranges, ovens, and microwaves. Replace your cracked, loose, or broken handle to restore appearance and functionality.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment
