Kitchenaid Dishwasher Pump

• Will not drain

I've opened sump housing to check for clogging but it was clean. When I removed check valve to inspect it I've found out that the round part of the valve was missing so I figured it might've blocked the water exit at drain hose or something like that. So I pulled the dishwasher out to get a full access to drain hose connector and the pump. Upon disconnecting the drain and checking its connector I indeed found the round piece totally blocking the hose and acting as a seal. I removed the piece... Read more

Remove upper and lower baskets for access. Remove 4 Torx screws holding drain/filter assembly, accessing last screw by rotating the water duct clockwise. Be sure to first un-clip the water duct at top and rear of dishwasher so that it can be moved. (Take the opportunity to remove accumulated deposits behind the water duct). Remove the drain/filter assembly and then remove the single screw holding the food chopper housing. Then remove the chopper assembly which is likely to be in pieces if it... Read more

I tipped the dishwasher over and replaced the drain pump. Very simple replacement. Read more

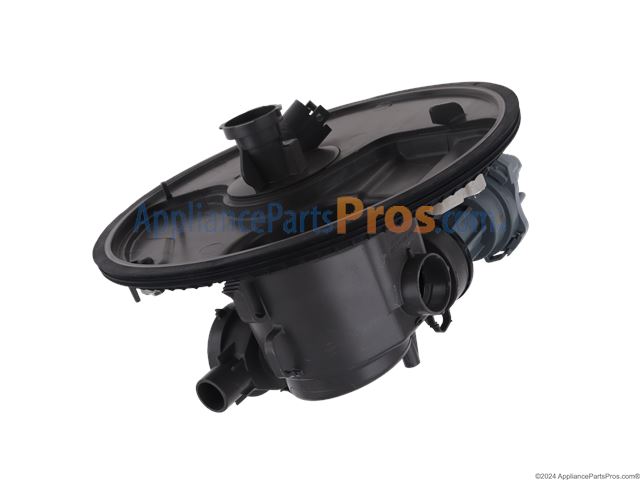

ORDERED NEW SUMP AND DIVERTER MOTOR, THE SHAFT ON THE DIVERTER MOTOR FELT A LITTLE ROUGH SO I WENT AHEAD AND REPLACED IT, THE SUMP REPLACEMENT WENT FAIRLY EASY. HAD TO MAKE A TRIP TO THE HARDWARE STORE FOR A HOSE CLAMP. ONE HOSE ON THE SUMP HAS A CLAMP THAT IS NOT REUSEABLE. YOU SHOULD ALSO ORDER THIS CLAMP. IT IS NARROW AND A REGULAR HOSE CLAMP WILL NOT WORK. Read more

Pulling the dishwasher, it was obvious we had a slow leak under it. We had a slow leak from the diverter motor area in the sump. Sure enough, it looked like the gasket around a shaft had to be the culprit. The gasket was attached to the sump assembly, or the motor. We took a chance and ordered a new sump assembly for a mere $90 and went for it. All of the trays had to come out. The lower spray arms. Then the distribution runs to the middle rack arms and upper rack arms. Finally, the original... Read more

Dishwasher washer would not drain after hearing glass-like particles during the drain cycle despite trying to clean the cylinder filter. Originally suspected the drain motor was damaged. After watching a video on how to replace the drain pump, I carefully energized the dishwasher (from water and electricity) then removed the dishwasher to take a look. After removal of drain hose from the pump, discovered that drain hose was connected to water inlet assembly which also needed removal to... Read more

My dishwasher was leaking and I called to have a certified technician come to diagnose the problem. I removed the kick panel from the bottom of the machine. He turned it on and we saw that water was leaking from the bottom. He said I needed a Sump kit but it wasn't in stock. The cost was $170 plus tax and labor cost was another $140. So I talked it over with dad and ordered the Sump kit, the hose clamp and a new diverter motor as mine was yellowed with age. The cost of all these parts and... Read more

• Noisy
• Will not drain

I had previously disassemble the pump assembly to find what I at first thought was an oddly shaped spring, which it was. What I learned by researching the parts was that the spring's odd shape was a result of something having gotten caught in the pump and jamming the impeller. After ordering the parts, I watched the "repair video" a few time and proceeded to remove and replaced the affected parts. Reassembly went pretty much as described with the one small glitch being the seating of the new... Read more

My dishwasher was running super loud for several loads but appeared to be cleaning just fine. One day it went from super loud to hardly a sound at all, not even the sound of water. After finding this site I found others with similar issues and it pointed to the Circulation Motor. Normally I wouldn't feel comfortable with pulling the dishwasher out of it's slot and performing this type repair but after watching the video posted along side the pictures of the part it looked pretty easy so I took... Read more

Ran diagnostics 5 times to make sure I get the same error code and then called Appliance Parts Pros to order the washer pump. They informed me they had the pump assembly that has multiple parts on the unit and it was cost effective to order the assembly. I ordered the assembly and after a long back order time received the part. I purchased the service manual and was using that as a guide, then found a real nice you tube link to replace the assembly made by Appliance Parts Pros. This is the link... Read more

I think I could have just replaced the pump, but I chose to replace the whole assembly. The part is more expensive, but all the gaskets, etc, that come with it are new and that made sense to change all at once. I was able to change this in about 30 minutes, without removing the washer from the under-counter space. I did remove the front door panel, but in retrospect that was unnecessary and probably cost me more time than it saved. Empty the washer of parts, remove the front access panel.... Read more

It was a learning experience. First I turned off the power! I removed the lower kick plate, disconnected the drain hose and electrical connectors. Then removed the discharge pump and heat sensor then loosened the 4 hold down arms/clamps. Then I opened the door and pulled the base up from the inside. Now to remove and replace the Pump Motor. Then reverse the process. If I were to do again, I'd pull the dishwasher out and lay it on its back. Read more

Replace the diverter. Read more

My dishwasher quit cleaning dishes and lost all pressure. The food screen would keep clogging up and I would have to take it out and clean it by hand. After putting a new impeller in, the "gears" on the impeller connected with the screen blades, the old impeller the "gears" were stripped off. And the new impeller comes with new seals, after taking old one out I noticed it wasn't long before my old seals would have started leaking. Very simple repair if you watch the great video that... Read more

I hated to call a repair Guy, because by the time it takes them to do the service call and then order the part, then schedule another appointment. It would be at least two weeks. I figured I would just buy a new Dishwasher and have it delivered the next day. That was before I saw the price of a new dishwasher. I looked on line and found Appliance Parts Pros, saw the you tube video figured a trained monkey could do this change out on the motor assembly, so why can't I. I ordered the complete... Read more

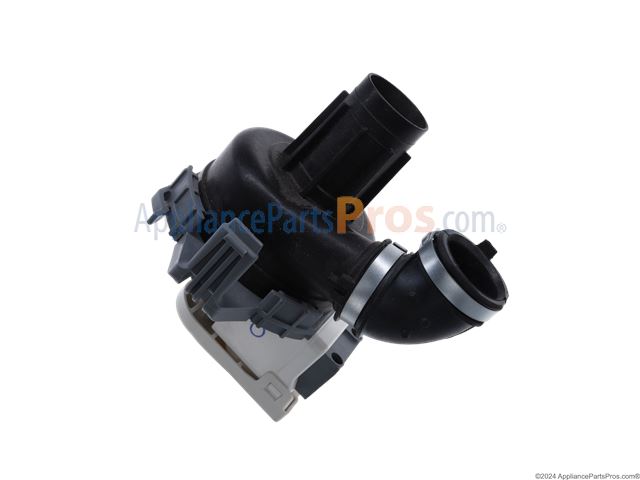

Replaced the circulation pump Read more
