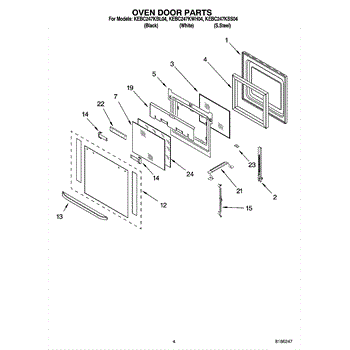

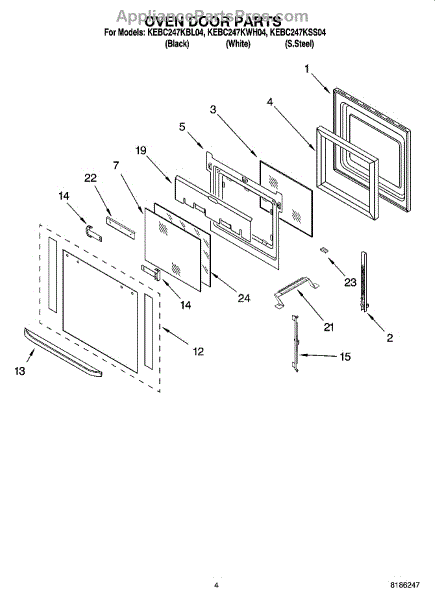

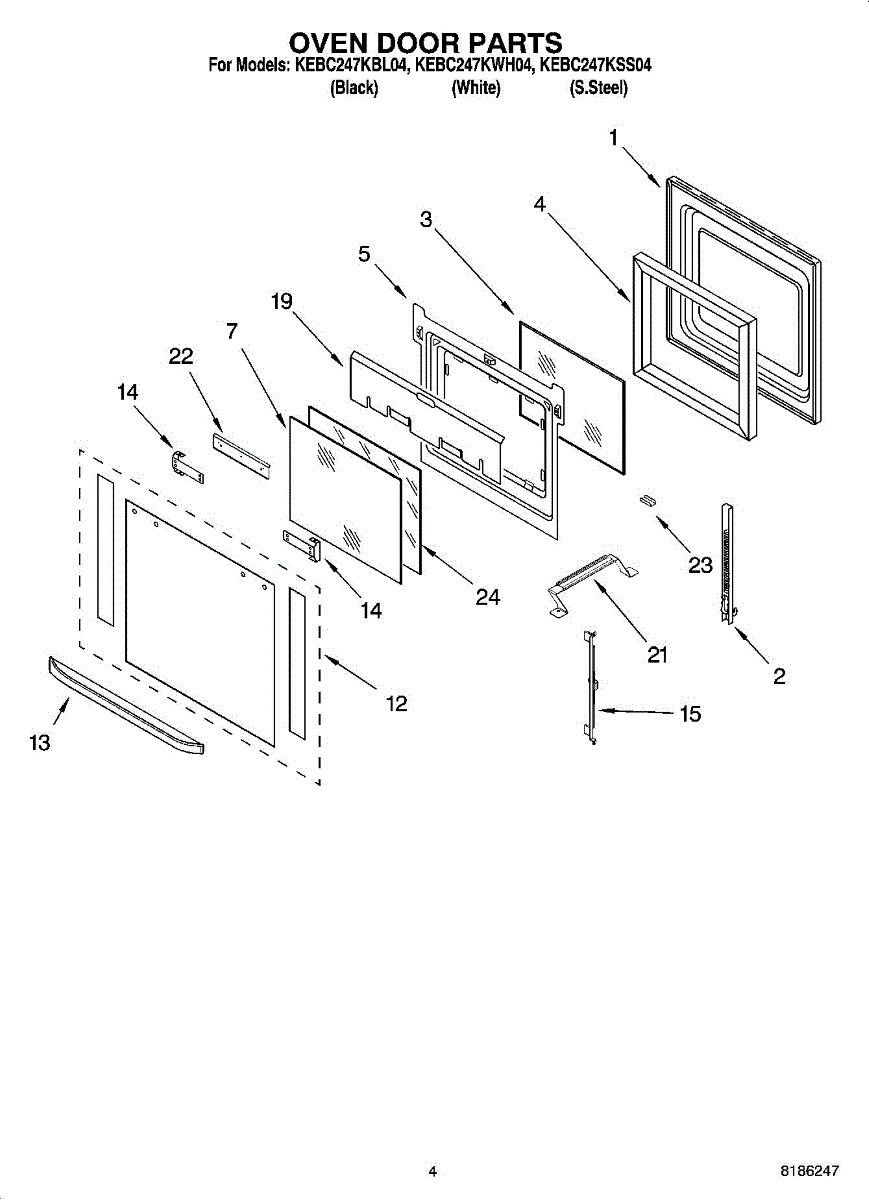

Parts for Kitchenaid KEBC247KBL04: 03 - Oven Door Parts

Restores the interior surface of your oven door, protecting insulation and ensuring proper sealing. Replace when cracked, dented, or heat-damaged. Verify fit with your model number.

Replacement hinge for wall oven doors. Restores smooth opening and closing when original is cracked, misshapen, or causing door misalignment and sagging.

Replacement hinge for wall oven doors. Installs at door pivot point to restore smooth opening and closing. Needed when original is cracked, worn, or broken.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Replace your oven's left-hand door hinge to restore smooth opening and a proper seal. Fixes doors that won't close, sag, or have weak springs. Confirm fit.

Replacement right-hand oven door hinge that provides the pivot point and spring tension for smooth opening and closing. Install when bent or worn.

Replacement inner glass for oven doors. Installs as the interior viewing window. Needed when glass is cracked, broken, or shattered. Fits within door frame.

Replaces worn, torn, or deteriorated oven cavity insulation. Restores the thermal barrier to contain heat and protect surrounding panels from damage.

Oven panel retainer secures interior or door panels in place. Replace if broken, cracked, or missing to restore proper panel alignment and fit.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Inner oven door glass panel that installs behind the outer glass. Replace if cracked, shattered, or cloudy to restore safe heat retention and visibility.

This is the left side handle bracket. For right side use 4455803.

Right side handle bracket for oven doors. Secures the door handle to the frame. Replace if cracked, broken, or missing. Stainless steel construction.

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bent, rusted, or damaged during installation or service work.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Color: Black

Color: White.

Replace cracked, cloudy, or shattered inner oven door glass to restore visibility and proper door seal. Fits behind outer panel. Verify fit with your model.
