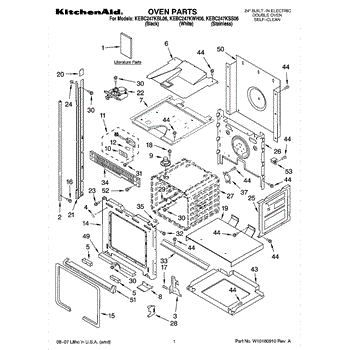

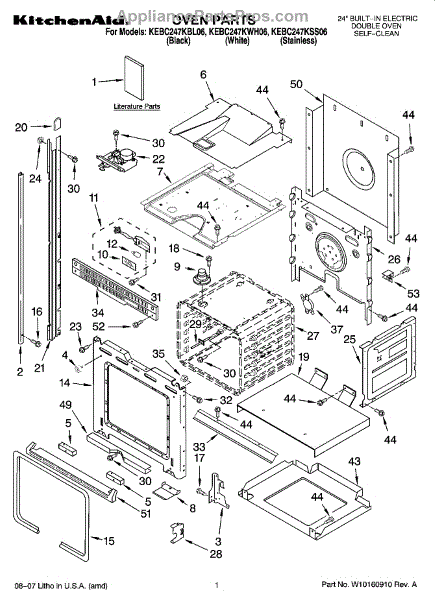

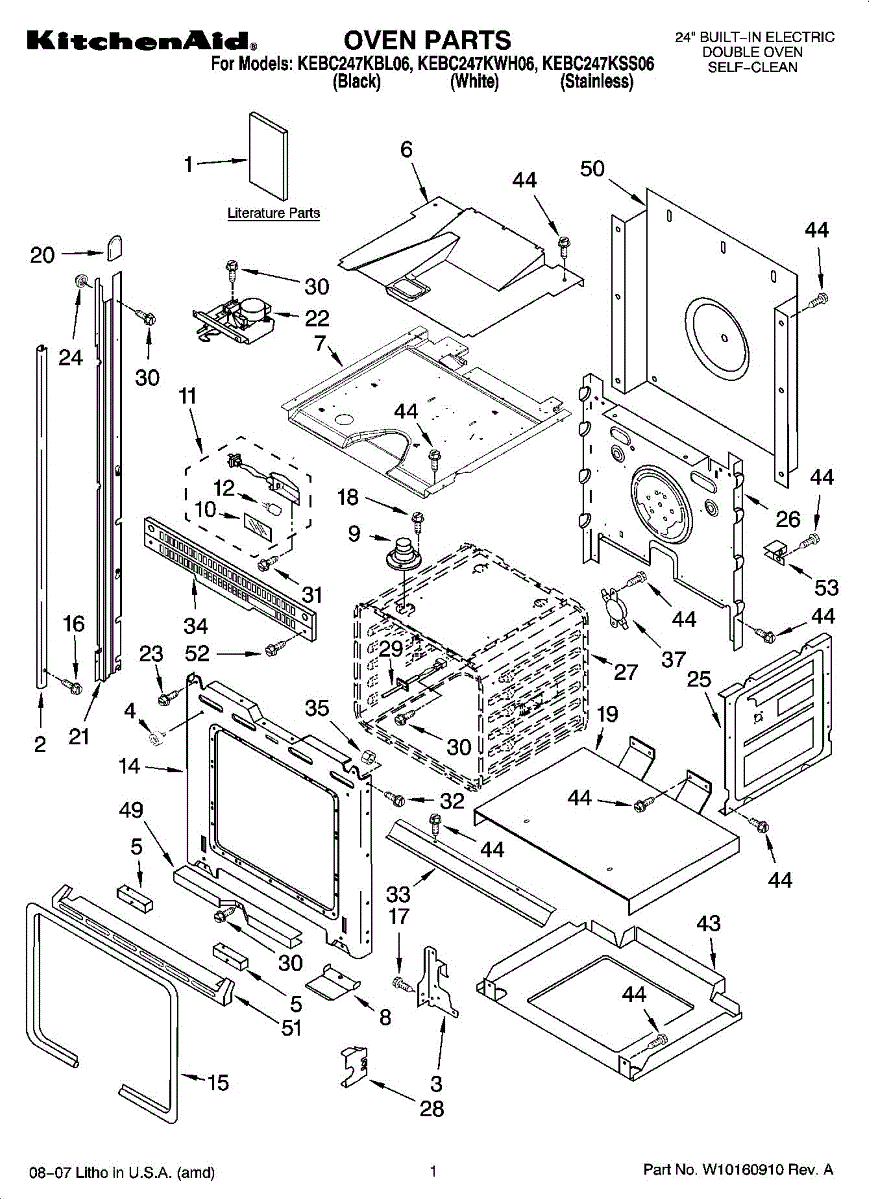

Parts for Kitchenaid KEBC247KWH06: 01 - Oven Parts

Right-side finishing trim for wall ovens. Covers the appliance edge for a clean look. Replace if cracked, broken, discolored, or missing from installation.

Left-hand side trim that finishes the edge of your wall oven panel. Replace when the original trim is cracked, missing, or loose to restore a clean look.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

Replacement chassis top panel for your wall oven. Installs on the upper frame to provide structural support. Order a new panel if yours is cracked or damaged.

Vent tube for wall ovens and ranges. Directs hot air from the oven cavity through the exhaust opening. Replace if cracked, damaged, or missing.

Light assembly illuminates your oven cavity during cooking. Replace if light stays off, lens cracks, or wire connection breaks. Verify fit by model number.

Illuminates oven cavity for monitoring food while cooking. Replace when bulb burns out or oven interior is dim. Verify fit with your model number.

Seals the oven door to retain heat and improve temperature accuracy. Replace if torn, brittle, or no longer flexible. Confirm fit with your model.

Color: Black.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Left hand side. For the right hand side order 814373.

Right hand side. For the left side order 814374.

If your oven door won't lock, stays locked after self-clean, or shows door lock errors, this door lock motor and switch assembly often solves the issue.

Size: 8-18 x 3/8 inch.

Replace a cracked or missing side rail grommet on your oven rack. This small plastic grommet fits into the rack rail to provide smooth gliding and support.

Right and left hand side.

Replace your oven's rear chassis panel if the original is cracked, rusted, or damaged. This structural back panel attaches to the frame and cabinet assembly.

Mounting bracket that secures the bottom trim vent on your wall oven. Replace if the bracket is bent, broken, or missing to properly secure trim pieces.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement mounting screw for electric wall ovens and ranges. Secures panels, brackets, and trim pieces. Replaces lost, stripped, or damaged screws.

Screw for control panel vent.

Decorative trim piece that frames the oven vent opening on the control panel or door. Replace if cracked, discolored, warped, or missing to restore appearance.

U-type clip

Oven won't heat after self-cleaning? This thermal fuse cuts power when overheating occurs. Common DIY repair takes under 10 minutes with basic tools.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

The Gasket Retainer is an OEM part for Whirlpool ovens. It secures the oven door gasket in place, ensuring a tight seal that prevents heat from escaping during cooking. This helps maintain consistent cooking temperatures and improves energy efficiency.

Causes of a bad oven gasket retainer can include wear and tear from repeated use, heat damage, or accidental impact that causes the retainer to break or become misshapen.

Symptoms of a bad oven gasket retainer include:

• The oven door gasket not staying in place
• Heat escaping from the oven, leading to uneven cooking
• Visible damage or deformation of the retainer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement back cover restores the appliance's rear housing to protect internal components from debris and accidental contact. It keeps wiring and controls enclosed and helps maintain proper airflow behind the unit. What it does:

• Covers and protects the motor, wiring, and control components at the rear of the appliance
• Replaces cracked, broken, or missing rear panels that expose internal parts
• Stops rattling or vibration caused by loose or damaged covers
• Helps prevent debris and pets from entering the cabinet area

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; mounting screws may need removal and reinstallation
• Handle edges carefully—sheet metal can be sharp

Bottom vent trim assembly for wall ovens. Installs at the bottom front to cover the ventilation opening. Replace if cracked, broken, or missing.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Insulation wrap that lines the oven cavity to retain heat and improve efficiency. Replace if torn, compressed, or missing to restore proper insulation.

This support bracket secures and stabilizes appliance panels and internal assemblies where a small mounting brace is required. It restores proper alignment and helps prevent vibration or sagging for a firmer fit and quieter operation. What it does

• Anchors and supports panels, trim, or internal components to the cabinet or frame
• Keeps assemblies aligned to prevent rubbing, gaps, or misalignment
• Reduces rattling and vibration caused by loose or missing bracketry
• Restores proper fit when original bracket is bent, broken, or missing

• Disconnect power to the appliance before beginning any repair
• Inspect mounting location and replace any stripped fasteners or damaged hardware
• Use the correct screws and hand tools to avoid stripping or overtightening
